Sc Sc Om2 Optical Fiber Patch Cord Data Communication Network Duplex Multimode Cable
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | HAOKAI |
| Certification: | ROHS/ISO/UL/SGS |
| Model Number: | MPO/MTP patch cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Wooden/Pellet |
| Delivery Time: | 1-5work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000pcs/day |
|
Detail Information |
|||
| Fiber Optic Connector: | SC - SC | Mode: | Multi Mode |
|---|---|---|---|
| Jacket: | LSZH | Operation Temperature: | 40°C ~ +80°C |
| Type: | MM-FC/MM-SC/SM-ST/SM-2F-LC | Jacket Diameter: | 2.0mm Or 3.0mm |
| Use: | FTTX | Return Loss: | >50dB |
| Fiber Jacket: | 2.0mm | Fiber Brand: | Corning,YOFC |
| Cable Color: | White | Certifaction: | ISO9001, ROHS |
| High Light: | Optical Fiber Patch Cord Sc Sc,Multimode Optical Fiber Patch Cord,Duplex Sc To Sc Fiber Cable |
||
Product Description

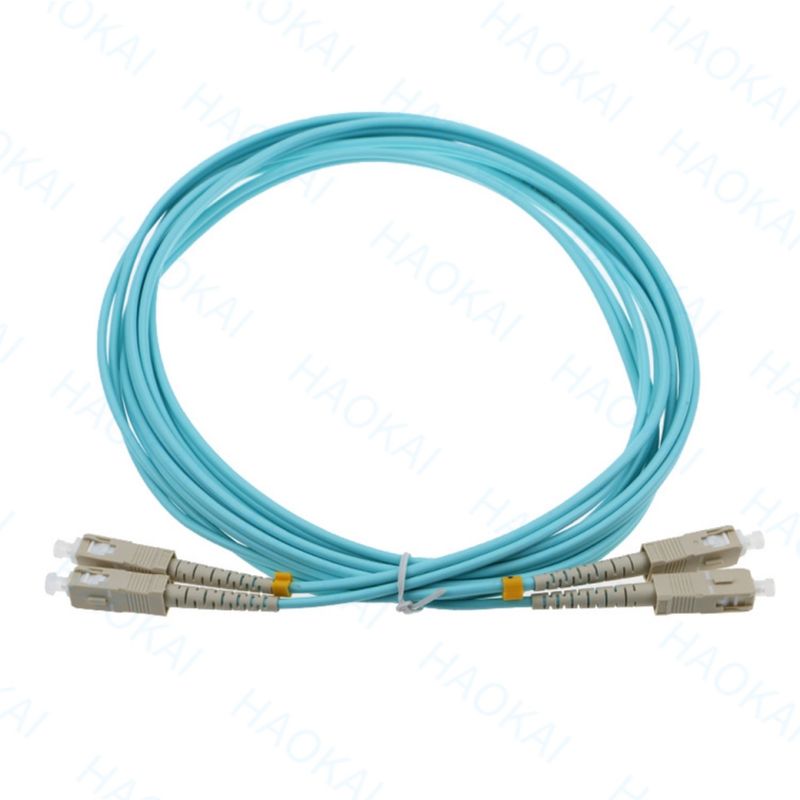

Fiber Optic Patch Cord Sc Sc Om2 Duplex Multimode Cable
Company Certifications
Product Descripition
Fiber optic patch cord is suited for equipment patch cord cable, cross connects, and work area connections.All fiber optic patch cords are manufactured with telecom class and polished A, and 100% factory tested to ensure performance to standards.Optical fiber patch cord / pigtail can be divided into common single-mode and multi-mode patch cord according to different transmission media; according to the connector structure, it can be divided into FC, SC, St, LC, MTRJ, MPO, Mu, SMA, FDDI, E2000, din4, D4 and other forms.
Product application
● Data communication network.
● Optical System Access network.
● Storage area networking fiber channel.
●High density architectures.
Product characteristics
● High performance in IL and RL
● 100% pre-terminated tested
● Supports 40G and 100G network applications
● Jacket material: LSZH, OFNR, OFNP available
●Utilize MPO/MTP connectors
●MPO connector complies with IEC-61754-7 and EIA/TIA-604-5
●Compliant to directive 2002/95/EC (RoHS)and REACH SvHC
Cable Parameters
| Item | Parameter | Reference | |||
| Single mode | Multi mode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Max≤0.75dB | Max≤0.35dB | Max≤0.7dB | Max≤0.35dB | IEC 61300-3-34 |
| Returm loss | ≥45dB(PC) | ≥50dB(PC) | ≥25dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
| ≥60dB(APC) | ≥65dB(APC) | ||||
