LC Optical Fiber Patch Cord 12core MPO Fan Out Om4 Fiber Patch Cables
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROHS/ISO/UL/SGS |
Model Number: | MPO/MTP patch cord |
Payment & Shipping Terms:
Minimum Order Quantity: | 100pcs |
---|---|
Price: | By negotiation |
Packaging Details: | Wooden/Pellet |
Delivery Time: | 1-5work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 5000pcs/day |
Detail Information |
|||
Cable Jacket Material: | PVC / LSZH | Connector Type: | MPO/LC/SC/FC/ST/MTRJ/E2000 |
---|---|---|---|
Wave Length: | 850 / 1300nm | Cable Material: | LSZH/PVC/OFNP |
Application: | FTTA, Telecom, CATV, LAN, Etc. | Category: | Fiber Optic Equipment |
Fiber Mode: | G.652, G.655, G.657, OM1, OM2, OM3, OM4 | Operating Temperature: | -40℃~+85℃ |
Certifaction: | ISO9001, ROHS | ||
High Light: | LC Optical Fiber Patch Cord,Fan Out Om4 Fiber Patch Cables,MPO Om4 Fiber Patch Cables |
Product Description

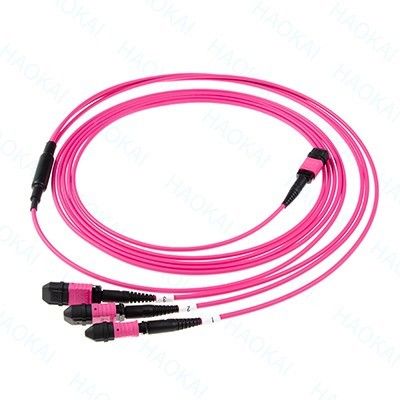

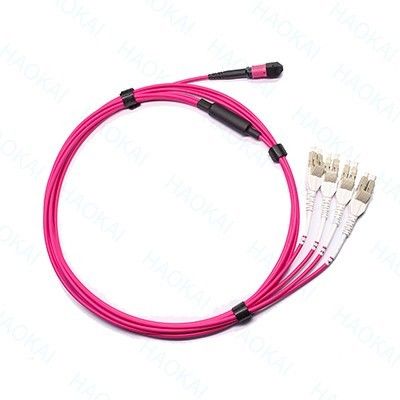

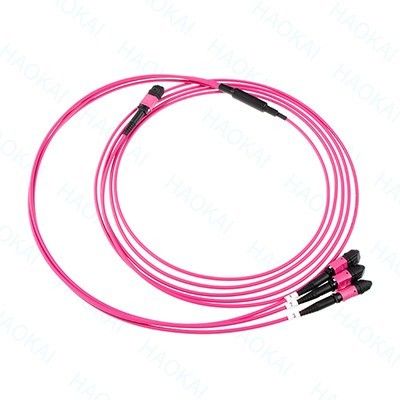

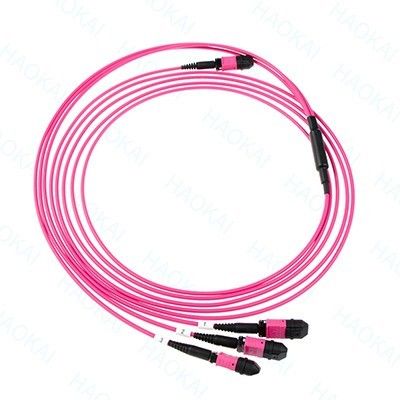

OM4 12core Cable MPO Fan Out Optical Patch Cord LC Fiber Optic Patch Cords
Company Certifications
Product Descripition
MPO/MTP trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs.
It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are built with highest quality components.Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.
Product application
● Data communication network.
● Optical System Access network.
● Storage area networking fiber channel.
●High density architectures.
Product characteristics
● High performance in IL and RL
● 100% pre-terminated tested
● Supports 40G and 100G network applications
● Jacket material: LSZH, OFNR, OFNP available
●Utilize MPO/MTP connectors
●MPO connector complies with IEC-61754-7 and EIA/TIA-604-5
●Compliant to directive 2002/95/EC (RoHS)and REACH SvHC
Cable Parameters
Item | Parameter | Reference | |||
Single mode | Multi mode | ||||
Standard | Elite | Standard | Elite | ||
Insertion loss | Max≤0.75dB | Max≤0.35dB | Max≤0.7dB | Max≤0.35dB | IEC 61300-3-34 |
Returm loss | ≥45dB(PC) | ≥50dB(PC) | ≥25dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
≥60dB(APC) | ≥65dB(APC) |
