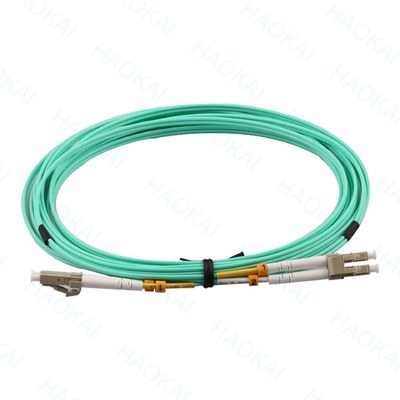

MPO / MTP OM3 Optical Fiber Patch Cord MultimodeAssemblies For Data Centers
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | HAOKAI |
| Certification: | ROHS/ISO/UL/SGS |
| Model Number: | MPO/MTP patch cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Wooden/Pellet |
| Delivery Time: | 1-5work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000pcs/day |
|
Detail Information |
|||
| Core Type: | Duplex | Repeatability: | ≤ 0.2 DB,<=0.3dB |
|---|---|---|---|
| Fiber Diameter: | 62.5/125um 50/125um | Package: | 1pcs /bag OPP Bag + Carton Box |
| Use: | FTTX | Jacket Material: | PVC |
| High Light: | OM3 Optical Fiber Patch Cord,MPO Optical Fiber Patch Cord,Data Centers Om3 Fiber Patch Cord |
||
Product Description
MPO/MTP Multimode OM3 Optical Fiber Patch Cord Assemblies For Data Centers
Company Certifications
Product Descripition

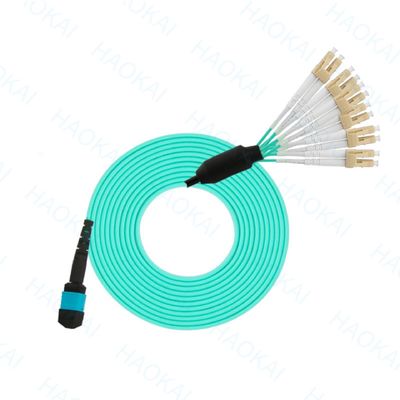

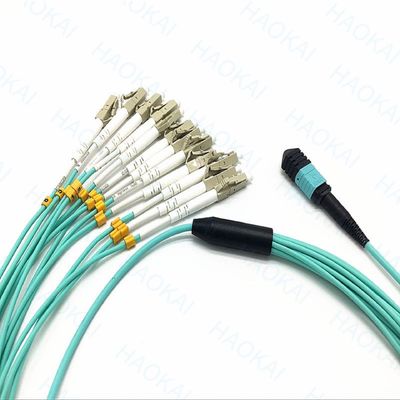

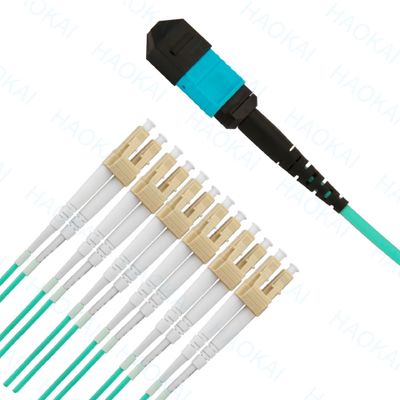

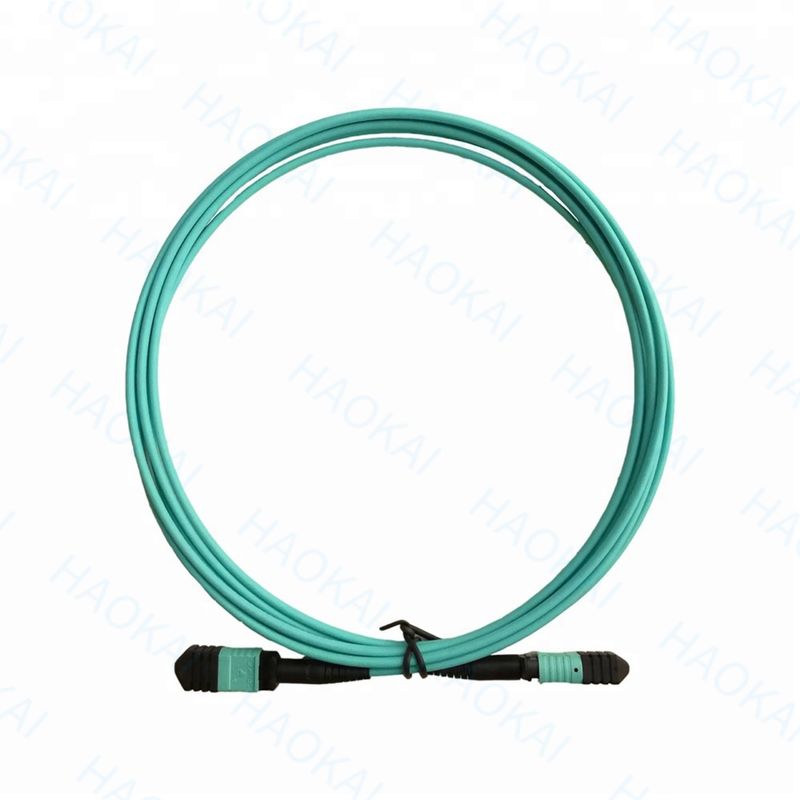

MPO/MTP trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs.
It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are built with highest quality components.Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.
Product application
● Data communication network.
● Optical System Access network.
● Storage area networking fiber channel.
●High density architectures.
Product characteristics
● High performance in IL and RL
● 100% pre-terminated tested
● Supports 40G and 100G network applications
● Jacket material: LSZH, OFNR, OFNP available
●Utilize MPO/MTP connectors
●MPO connector complies with IEC-61754-7 and EIA/TIA-604-5
●Compliant to directive 2002/95/EC (RoHS)and REACH SvHC
Cable Parameters
| Item | Parameter | Reference | |||
| Single mode | Multi mode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Max≤0.75dB | Max≤0.35dB | Max≤0.7dB | Max≤0.35dB | IEC 61300-3-34 |
| Returm loss | ≥45dB(PC) | ≥50dB(PC) | ≥25dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
| ≥60dB(APC) | ≥65dB(APC) | ||||
