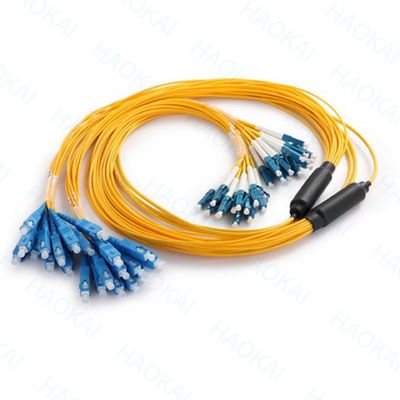

Single Mode Breakout Sc Fiber Optic Patch Cord 12 Cores Duplex OS2

Single Mode Breakout Sc Fiber Optic Patch Cord 12 Cores Duplex OS2

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROHS/ISO/UL/SGS
Model Number: MPO/MTP patch cord

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: By negotiation
Packaging Details: Wooden/Pellet
Delivery Time: 1-5work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000pcs/day
Get Best Price Contact Now

Detail Information

Polishing Type: LC/PC/UPC/APC Certifaction: ISO9001, ROHS
Fiber Count: Simplex/Duplex Fiber Mode: 9/125
Insertion Loss: <0.2dB Cable Diameter: 2.0/3.0mm
Cable Color: Usual 12 Colors
High Light:

OS2 Fiber Optic Patch Cord

,

Duplex Single Mode Patch Cables

,

Sc Fiber Optic Patch Cord

Product Description

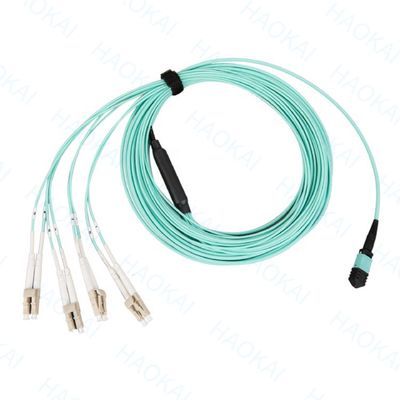

MTP Female To LC UPC Duplex OS2 12 Cores Single Mode Breakout Sc Fiber Optic Patch Cord



Company Certifications
Single Mode Breakout Sc Fiber Optic Patch Cord 12 Cores Duplex OS2 0


Product Descripition

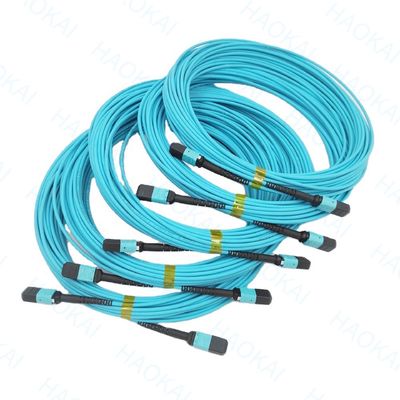

MPO/MTP trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs.

It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are built with highest quality components.Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.





Product application
● Data communication network.
Optical System Access network.
● Storage area networking fiber channel.

High density architectures.




Product characteristics

High performance in IL and RL
100% pre-terminated tested
● Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available

Utilize MPO/MTP connectors
MPO connector complies with IEC-61754-7 and EIA/TIA-604-5

Compliant to directive 2002/95/EC (RoHS)and REACH SvHC



Cable Parameters

Item Parameter Reference
  Single mode Multi mode
  Standard Elite Standard Elite
Insertion loss Max≤0.75dB Max≤0.35dB Max≤0.7dB Max≤0.35dB IEC 61300-3-34
Returm loss ≥45dB(PC) ≥50dB(PC) ≥25dB(PC) ≥30dB(PC) IEC 61300-3-6
≥60dB(APC) ≥65dB(APC)
