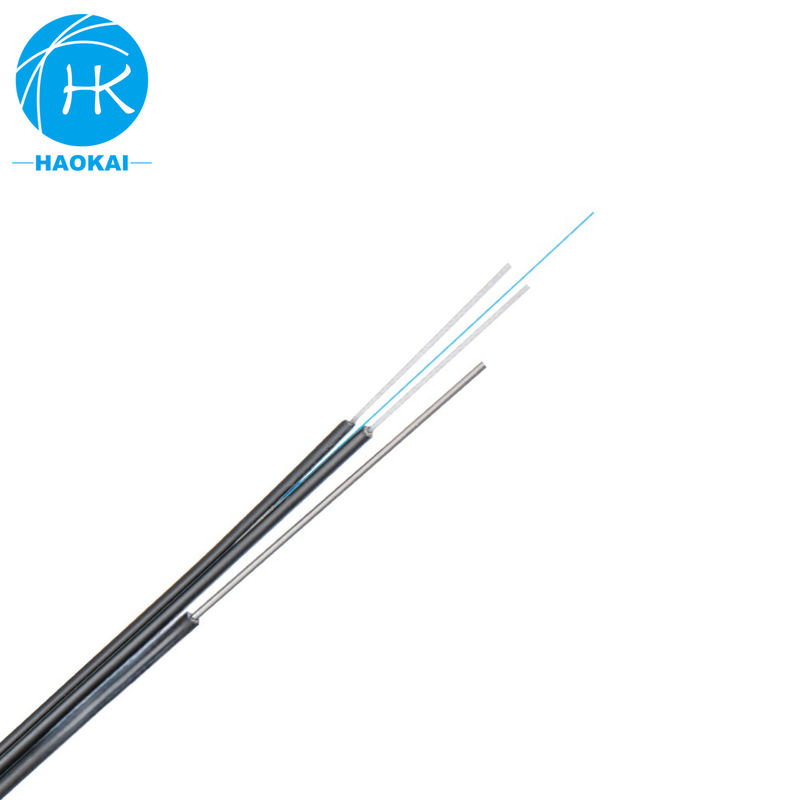

FTTH 8figure Self Supporting Outdoor Drop Fiber Optical Cable Black With Steel Wire
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | HAOKAI |
| Certification: | ROHS/ISO/UL/SGS |
| Model Number: | 8figure self-support cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000m |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Wooden/Pellet |
| Delivery Time: | 1-5work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000m/1day |
|
Detail Information |
|||
| Steel Wire: | 0.8mm | Color: | Black |
|---|---|---|---|
| Fiber Count: | 2/4/6/8/12/24/48/96/144 | Keyword: | Outdoor Fiber Optic Cable |
| Install: | Aerial And Duct | Flame Retardant Grade: | LSZH/FRPVC/PE/PU |
| Tensile Strength: | 1000N-2000N | Loose Tube Material: | PBT |
| Material Of Jacket: | PE | Installation: | Aerial, Duct, Buried |
| Diameter: | 8mm,6mm Or Can Custom As Your Request | Installation Temperature: | -20℃ To +60℃ |
| High Light: | Outdoor Drop Fiber Optical Cable,8figure Fiber Optic Drop Cable,FTTH Fiber Optical Cable |
||
Product Description
FTTH 8figure Self-Supporting Outdoor Drop Fiber Optical Cable Black With Steel Wire
Product application
● Jumper
● Tail cable
● Indoor pigtail | wiring | pigtail cable

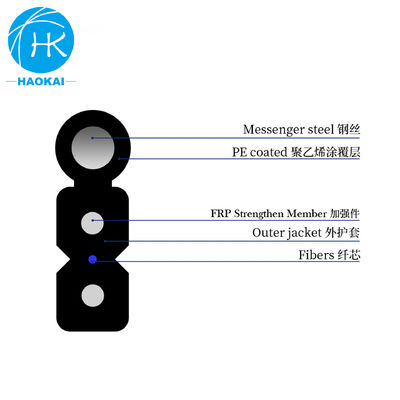

Product characteristics
● Special bending-resistant optical fiber provides greater bandwidth and enhances network transmission characteristics.
● Two parallel FRP make the optical cable have good compression resistance and protect the optical fiber.
● A single steel wire with additional reinforcing elements, so that the optical cable has good tensile performance.
● Optical cable has simple structure, light weight and strong practicability.
● Unique groove design, easy to peel, easy to connect, simplify installation and maintenance
● Low smoke halogen-free flame retardant sheath, environmental protection
Cable Parameters
| Fiber Model | Cable OD. mm | Weight kg/km | Tensile resistance Long/short term N |
Crush resistance Long/short term N/100mm |
| GJXH-1-4Xn | 3*2 | 10 | 40/80 | 500/1000 |
| GJXCH-1-4Xn | 5*2 | 20 | 300/600 | 1000/2200 |
