Outdoor OPGW Fiber Cable For Overhead Pipe Through And Buried With Superior Protection
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | HAOKAI |
| Certification: | ROHS/ISO/UL/SGS |
| Model Number: | OPGW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000m |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Wooden/Pellet |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 10000m/1day |
|
Detail Information |
|||
| Temparature: | -10 To +70° C | Outer Diameter: | 14.5mm |
|---|---|---|---|
| Outer Layer: | ACS Wires | Core Number: | 2-288 Cores |
| Fiber Brand: | YOFC / Fiberhome / Corning / KNOFC | Standard: | IEC 60794, ITU-T G.652D |
| Tube Type: | Central Stainless Steel Tube | Outer Sheath Material: | Aluminium Cladding Steel |
| Fiber Number: | 2-144cores | Structuer: | PBT Loose Tube |
| High Light: | Buried OPGW Fiber Cable,Outdoor OPGW Fiber Cable,Overhead Pipe Through OPGW Cable |
||
Product Description

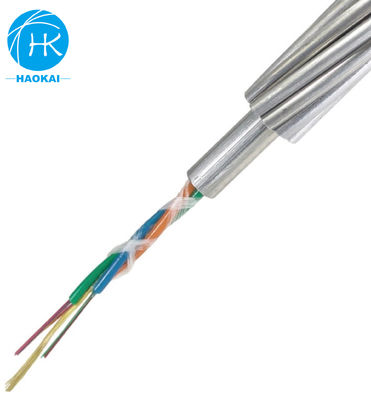

Durable OPGW Fiber Cable For Overhead Pipe Through And Buried With Superior Protection
Product Description

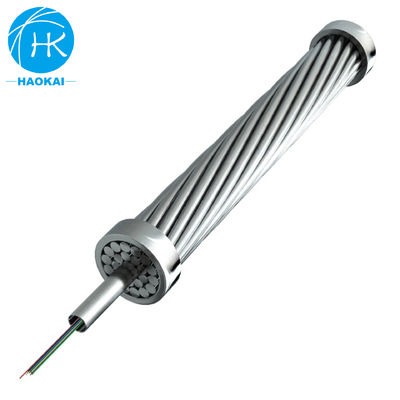

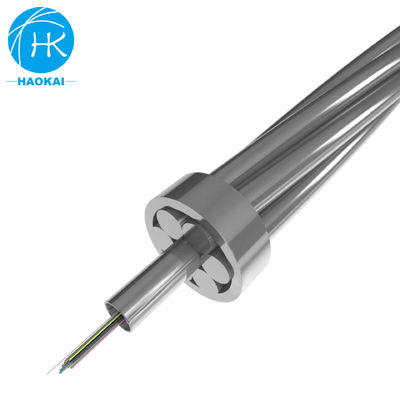

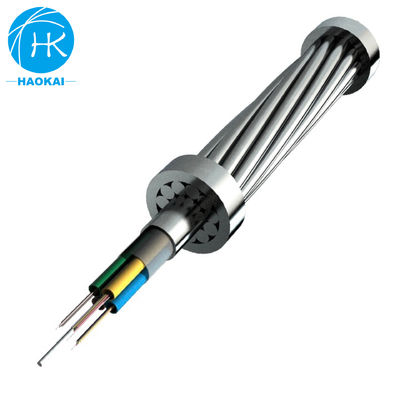

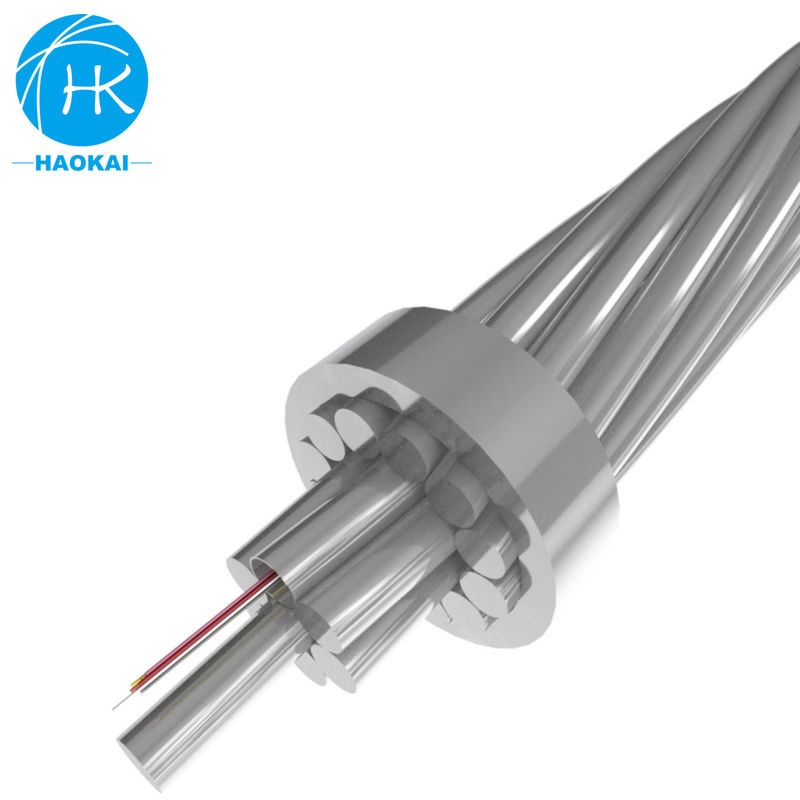

The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.
Product application
● Overhead ● Pipethrough ● Buried
Product characteristics
● High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability .
● Engineering support supervising and providing its own line of accessories hardware.
● Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental conditions such as lightening.
● To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over 110kv.
