12 Core Armored Optical Fiber Patch Cord SC-SC Branch Waterproof Cable OM3

12 Core Armored Optical Fiber Patch Cord SC-SC Branch Waterproof Cable OM3

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROHS/ISO/UL/SGS
Model Number: MPO/MTP patch cord

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: By negotiation
Packaging Details: Wooden/Pellet
Delivery Time: 1-5work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000pcs/day
Get Best Price Contact Now

Detail Information

Cable: Duplex Fiber Cable Quality Control: 100% Test Before Shipping
Fiber Diameter: 9/125μm(Single Mode)/50/125μm(Multi-Mode) Insert Loss: ≤0.2dB
Package: 1 Pcs/bag Concentricity: ≦1µm(For SM), ≦3µm(For MM)
Connector Mode Type: UPC/APC/PC Cable Materials: PVC.LSZH
Ferrule Endface: LC/APC/UPC/SC Use: FTTH
Return Loss: >50dB(PC)/>60dB(UPC)/>65dB(APC)
High Light:

Armored Optical Fiber Patch Cord

,

12 Core Optical Fiber Patch Cord

,

Waterproof Cable OM3

Product Description

Company Certifications

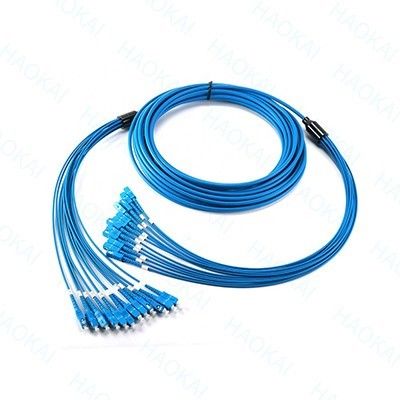

12 Core Armored Optical Fiber Patch Cord SC-SC Branch Waterproof Cable OM3 0


Product Descripition

Armored fiber patch cord is a special design process of the bare fiber or the tight-sleeved fiber. The structure is designed with a flat spiral stainless steel material around the fiber, without affecting the various opticals possessed by the fiber itself. In addition to the performance, the anti-side pressure capability of the fiber optic cable itself is greatly improved. High-strength aramid reinforcement ensures fiber-free tensile strain. It is made of flame retardant, environmentally friendly or high temperature resistant cable covering material. It has small outer diameter, light weight, good bending performance and high flexibility. Fiber type: single mode G652, G657, multimode 50/125, 62.5/125, OM3, stainless steel armor: SUS304, SUS204.





Product application
● Data communication network.
Optical System Access network.
● Storage area networking fiber channel.

High density architectures.




Product characteristics

High performance in IL and RL
100% pre-terminated tested
● Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available

Utilize MPO/MTP connectors
MPO connector complies with IEC-61754-7 and EIA/TIA-604-5

Compliant to directive 2002/95/EC (RoHS)and REACH SvHC



Cable Parameters

Item Parameter Reference
  Single mode Multi mode
  Standard Elite Standard Elite
Insertion loss Max≤0.75dB Max≤0.35dB Max≤0.7dB Max≤0.35dB IEC 61300-3-34
Returm loss ≥45dB(PC) ≥50dB(PC) ≥25dB(PC) ≥30dB(PC) IEC 61300-3-6
≥60dB(APC) ≥65dB(APC)

12 Core Armored Optical Fiber Patch Cord SC-SC Branch Waterproof Cable OM3 1
