Compact MPO / MTP Fiber Optic Patch Cord OM3 Fiber Optic Patch Cable

Compact MPO / MTP Fiber Optic Patch Cord OM3 Fiber Optic Patch Cable

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROHS/ISO/UL/SGS
Model Number: MPO/MTP patch cord

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: By negotiation
Packaging Details: Wooden/Pellet
Delivery Time: 1-5work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000pcs/day
Get Best Price Contact Now

Detail Information

Type: MPO/MPT Jacket Color: Blue
Length: Any Length Is Customizable Repeatability: ≤0.1
Wavelength: 1310nm / 1550nm Function: Equipment Connecting
Cable Jacke: LSZH Applications: G/E-PON
Package: 1 Pcs/bag Cable Jacket: PVC/LSZH/OFNP
Application: Telecommunication
High Light:

MTP Fiber Optic Patch Cord

,

MPO Fiber Optic Patch Cord

,

OM3 Fiber Optic Patch Cable

Product Description

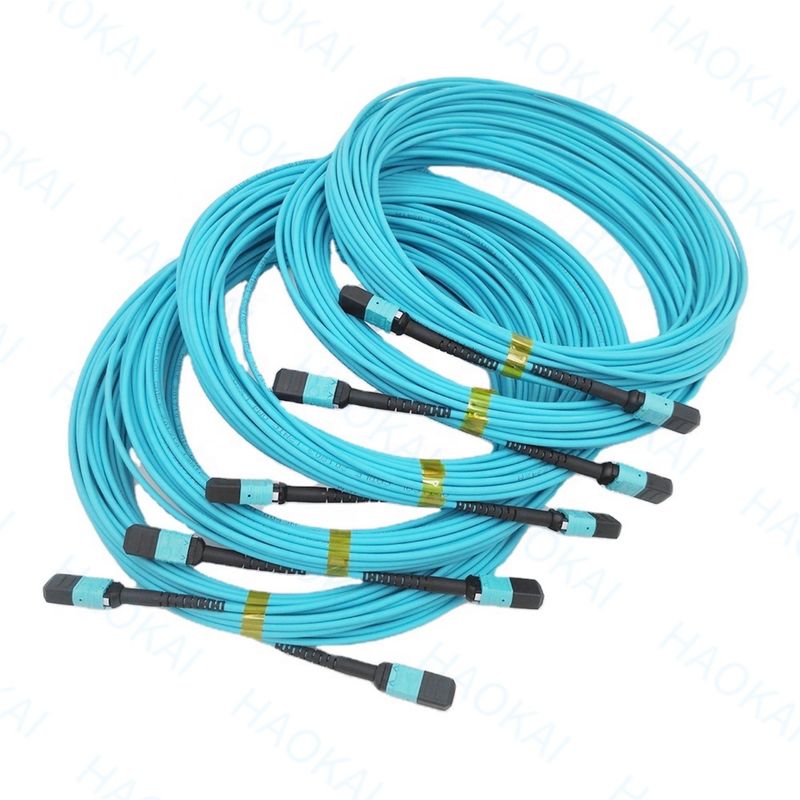

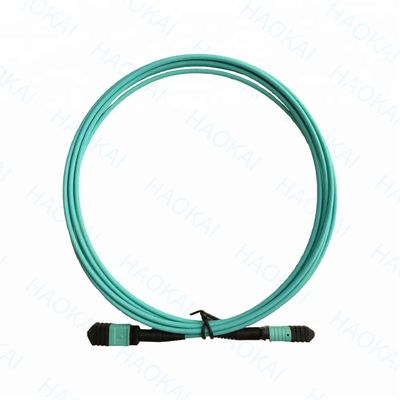

MPO / MTP Fiber Optic Patch Cord OM3 Fiber Optic Patch Cable



Company Certifications
Compact MPO / MTP Fiber Optic Patch Cord OM3 Fiber Optic Patch Cable 0


Product Descripition

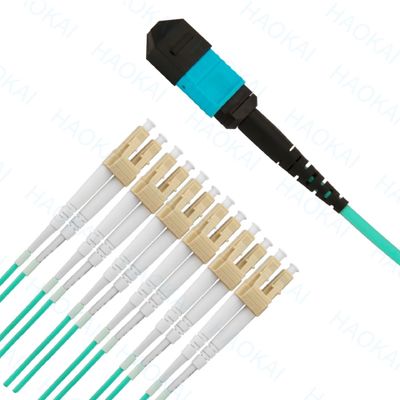

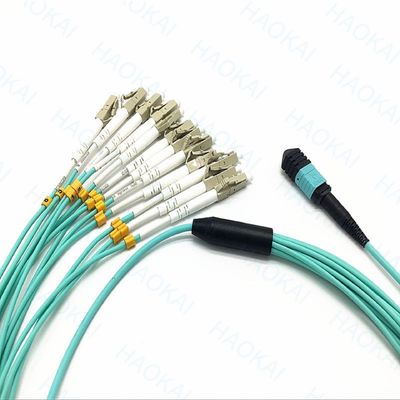

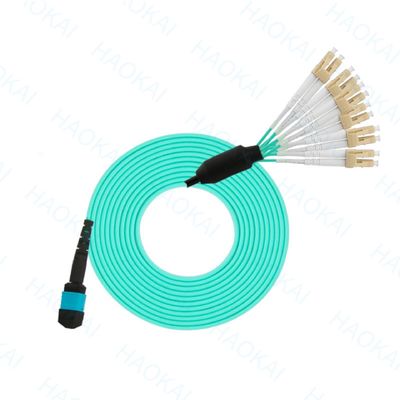

MPO/MTP trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs.

It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are built with highest quality components.Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.





Product application
● Data communication network.
Optical System Access network.
● Storage area networking fiber channel.

High density architectures.




Product characteristics

High performance in IL and RL
100% pre-terminated tested
● Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available

Utilize MPO/MTP connectors
MPO connector complies with IEC-61754-7 and EIA/TIA-604-5

Compliant to directive 2002/95/EC (RoHS)and REACH SvHC



Cable Parameters

Item Parameter Reference
  Single mode Multi mode
  Standard Elite Standard Elite
Insertion loss Max≤0.75dB Max≤0.35dB Max≤0.7dB Max≤0.35dB IEC 61300-3-34
Returm loss ≥45dB(PC) ≥50dB(PC) ≥25dB(PC) ≥30dB(PC) IEC 61300-3-6
≥60dB(APC) ≥65dB(APC)
