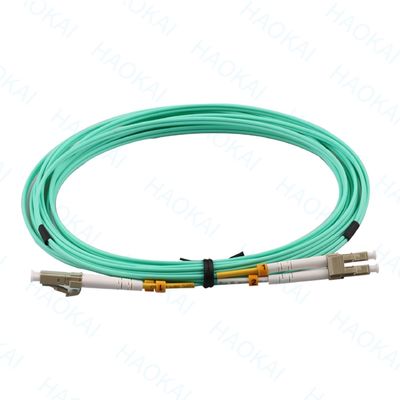

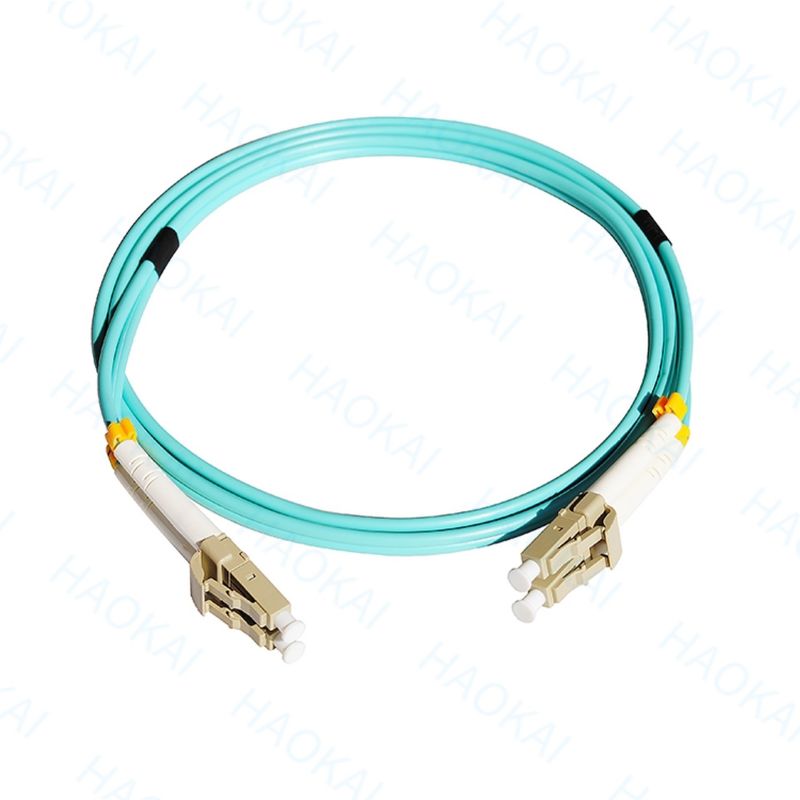

OM1 OM2 OM3 OM4 Optical Fiber Patch Cord Lc Lc Multimode Cable

OM1 OM2 OM3 OM4 Optical Fiber Patch Cord Lc Lc Multimode Cable

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROHS/ISO/UL/SGS
Model Number: MPO/MTP patch cord

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: By negotiation
Packaging Details: Wooden/Pellet
Delivery Time: 1-5work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000pcs/day
Get Best Price Contact Now

Detail Information

Item: Optical Fiber Patch Cord Quality Control: 100% Test Before Shipping
Cable Length: 1m/2m/3m/5m/10m/Customized Jacket Material: LSZH
Fiber Cores: Duplex Suitcable Fiber: 9/125μm,50/125μm,62.5/125μm
High Light:

Optical Fiber Patch Cord Lc Lc

,

OM1 Optical Fiber Patch Cord

,

OM4 Lc Lc Multimode Cable

Product Description

Company Certifications
OM1 OM2 OM3 OM4 Optical Fiber Patch Cord Lc Lc Multimode Cable 0


Product Descripition

Fiber optic patch cord is suited for equipment patch cord cable, cross connects, and work area connections.All fiber optic patch cords are manufactured with telecom class and polished A, and 100% factory tested to ensure performance to standards.Optical fiber patch cord / pigtail can be divided into common single-mode and multi-mode patch cord according to different transmission media; according to the connector structure, it can be divided into FC, SC, St, LC, MTRJ, MPO, Mu, SMA, FDDI, E2000, din4, D4 and other forms.





Product application
● Data communication network.
Optical System Access network.
● Storage area networking fiber channel.

High density architectures.




Product characteristics

High performance in IL and RL
100% pre-terminated tested
● Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available

Utilize MPO/MTP connectors
MPO connector complies with IEC-61754-7 and EIA/TIA-604-5

Compliant to directive 2002/95/EC (RoHS)and REACH SvHC



Cable Parameters

Item Parameter Reference
  Single mode Multi mode
  Standard Elite Standard Elite
Insertion loss Max≤0.75dB Max≤0.35dB Max≤0.7dB Max≤0.35dB IEC 61300-3-34
Returm loss ≥45dB(PC) ≥50dB(PC) ≥25dB(PC) ≥30dB(PC) IEC 61300-3-6
≥60dB(APC) ≥65dB(APC)

OM1 OM2 OM3 OM4 Optical Fiber Patch Cord Lc Lc Multimode Cable 1
