Integration Ribbon Flat Optical Cable RBC Indoor Wiring UV Protection
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROHS/ISO/UL/SGS |
Model Number: | RBC |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000m |
---|---|
Price: | By negotiation |
Packaging Details: | Wooden/Pellet |
Delivery Time: | 1-5work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000m/1day |
Detail Information |
|||
Standard Structure: | Central Loose Tube | Diameter: | 8mm,6mm Or Can Custom As Your Request |
---|---|---|---|
Armoured: | Steel Tape Armoured | Laying Methods: | Aerial |
Fiber Diameter: | 9/125μm(Single-mode)/50/125μm(Multimode) | Inner Armor: | Aluminum Tape |
Install: | Aerial And Duct | Sample: | Free |
Fiber Count: | 2/4/6/8/12/24/48 | Cable Type: | Loose Tube/Armored/ADSS |
High Light: | Ribbon Flat Optical Cable,Integration Ribbon Fiber Optic Cable,UV Protection RBC Cable |
Product Description

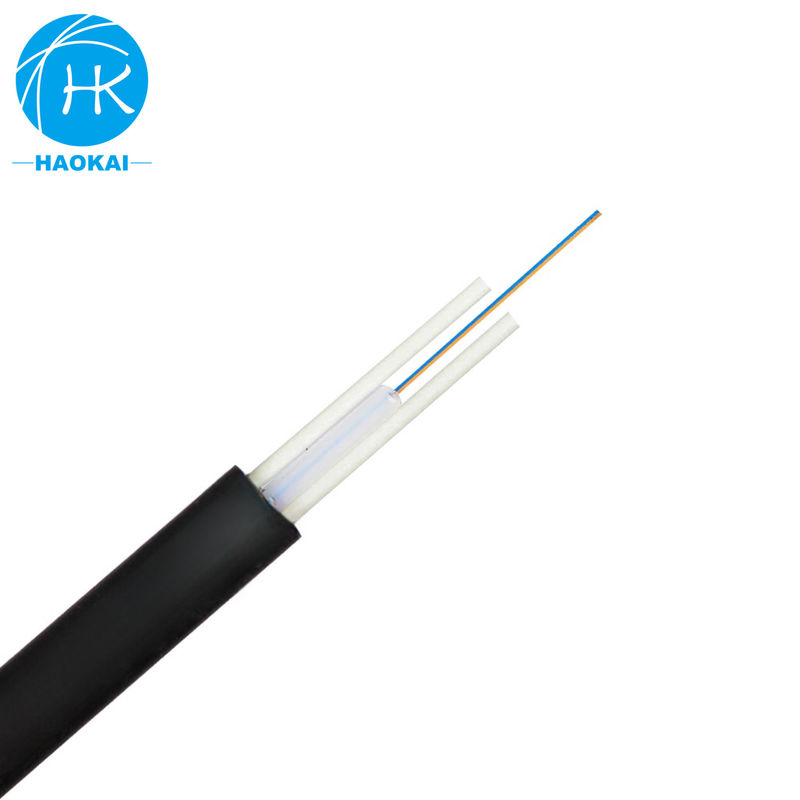

Ribbon Flat Optical Cable (RBC)
Product application
● Indoor wiring
● Interconnection of instruments and communication equipment
● Strip connection jumper
Product characteristics
● Uses optical fiber tape, integration
● Aramid reinforced elements make optical cables have excellent tensile properties.
● External protection materials have the advantages of corrosion resistance, waterproof, UV protection, flame retardant, environmental protection, etc.
Cable Parameters
Cable OD. (mm) |
Weight (kg/km) |
Tensile daily (kN) |
Max. tensile daily (kN) |
Broken strength (kN) |
working temperature (℃) |
Thermal expansion coefficient (10-6/K) |
Span (m) |
|
PE Jacket | AT Jacket | |||||||
9.0 | 75 | 85 | 1.20 | 3 | 7 | -40~+60 | 1.2 | 50 |
9.8 | 80 | 90 | 1.50 | 5 | 10 | -40~+60 | 1.3 | 100 |
10.0 | 85 | 95 | 2.00 | 6 | 15 | -40~+60 | 1.3 | 150 |
10.8 | 95 | 100 | 2.20 | 8 | 18 | -40~+60 | 1.3 | 200 |
