Waterproof GYTA Outdoor Fiber Cable With Single Steel Wire Center Reinforcement
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROHS/ISO/UL/SGS |
Model Number: | GYTA |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000m |
---|---|
Price: | By negotiation |
Packaging Details: | Wooden/Pellet |
Delivery Time: | 1-5work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 10000m/1day |
Detail Information |
|||
Cable Od: | 8.0mm | Operation Temperature: | -30℃~+60℃ |
---|---|---|---|
Crush Resistance: | 1000N/1000N/2000N | Installation Method: | Aerial/Duct/Direct Buried |
Standard Structure: | Central Loose Tube | Package: | 2KM To 4KM Per Reel |
Approval: | ISO 9001 | Tube: | Central Loose Tube |
Fiber Type: | Single-mode/Multimode | ||
High Light: | GYTA Outdoor Fiber Cable,Waterproof Outdoor Fiber Cable,Reinforcement Waterproof Fiber Optic Cable |
Product Description

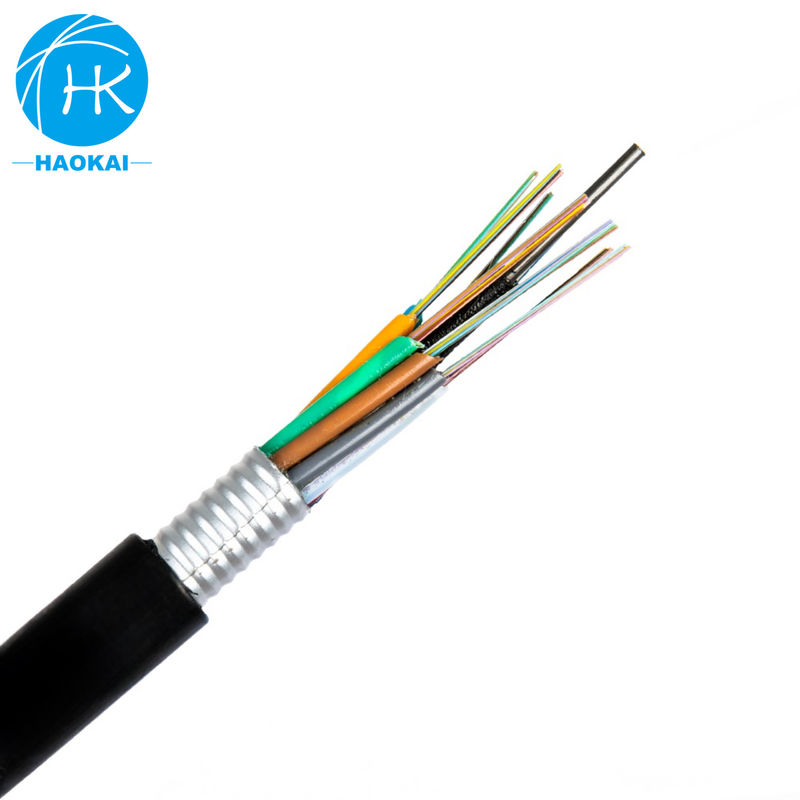

Waterproof GYTA Outdoor Fiber Cable With Single Steel Wire Center Reinforcement
Product application
● piercing
● Overhead
Product characteristics
● Has good mechanical properties and temperature characteristics.
● The loose sleeve material itself has good hydrolysis resistance and high strength.
● Specially designed tight optical cable structure effectively prevents sleeve retraction
● PE sheath has good UV radiation resistance

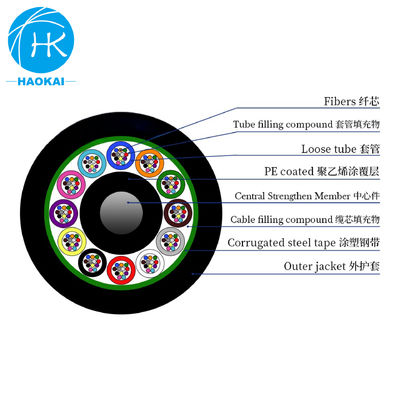

●The following measures are adopted to ensure the waterproof performance of optical cables:
-Single steel wire center reinforcement core
-Loose sleeve filled with special waterproof compound
-Full core filling
-plastic coated aluminum tape (APL) moisture barrier
Cable Parameters
Fiber Model | Tube Dia. mm | Jacket thickness mm | Cable OD. mm | Weight kg/km | Tensile resistance Long/short term N |
Crush resistance Long/short term N/100mm |
GYTA-2 ~ 36Xn | 5 | 12 | 9.2 | 85 | 600/1500 | 300/1000 |
GYTA-48 ~ 60Xn | 5 | 12 | 10.0 | 100 | 600/1500 | 300/1000 |
GYTA-64 ~ 72Xn | 6 | 12 | 11.0 | 120 | 600/1500 | 300/1000 |
GYTA-96Xn | 8 | 12 | 12.5 | 140 | 600/1500 | 300/1000 |
GYTA-122 ~ 144Xn | 12 | 12 | 15.5 | 230 | 600/2500 | 300/1000 |
