GYXTY Outdoor Optical Cable Center Bundle Tube For Overhead
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | HAOKAI |
| Certification: | ROHS/ISO/UL/SGS |
| Model Number: | GYXTY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000m |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Wooden/Pellet |
| Delivery Time: | 1-5work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 10000m/1day |
|
Detail Information |
|||
| Bending Radius: | 10D/20D/30D/40D/50D | Operation Temperature: | -30℃～+60℃ |
|---|---|---|---|
| Strength Member: | Central Strength Member | Length: | 2000M To 5000M |
| Water Blocking Material: | Water Blocking Yarn/tape | Jacket Material: | PE/LSZH/HDPE |
| Water Blocking: | Compound Filling Gel | Loose Tube Material: | PBT |
| Length Per Roll: | 2km/3km/4km | ||
| High Light: | GYXTY Outdoor Optical Cable,Overhead Outdoor Optical Cable,Bundle Fiber Optic Cable Outside |
||
Product Description

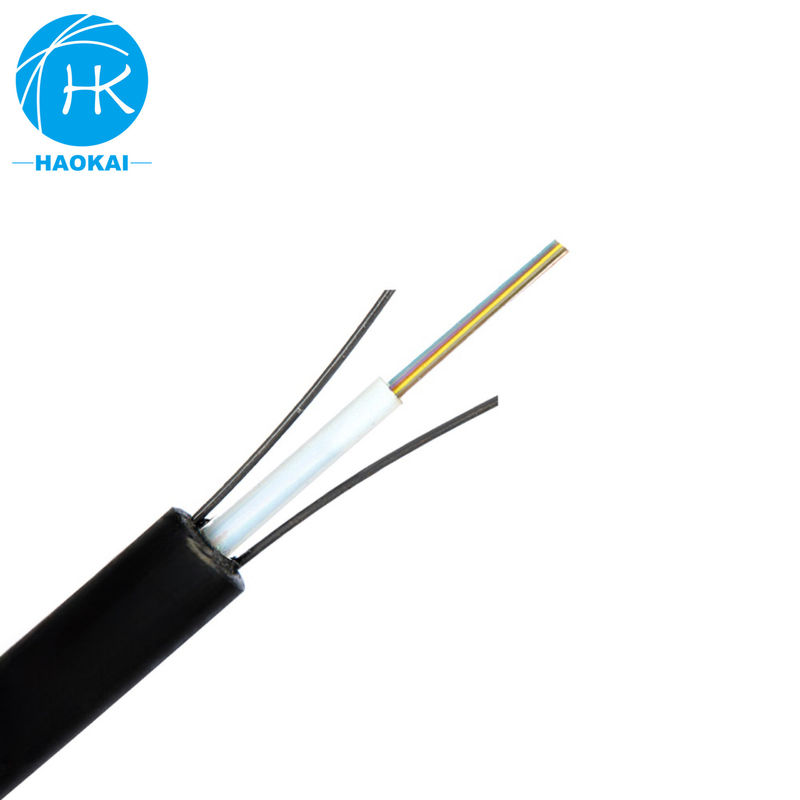

Center Bundle Tube GYXTY Outdoor Optical Cable
Product Description

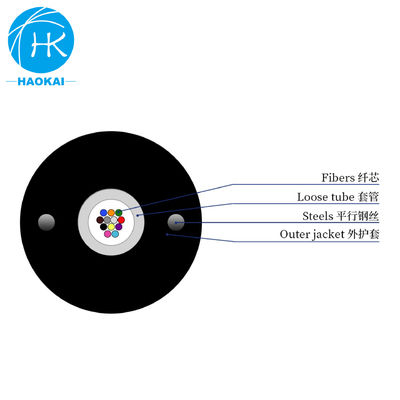

GYXTY optical cable is to insert single-mode or multi-mode optical fiber into a loose sleeve made of high modulus plastic, and the sleeve is filled with water-blocking compound. The loose sleeve is externally used with 12 phosphating steel wires stranded and armored. The water-blocking cable paste between the stranded steel wire and the loose sleeve ensures the compact and longitudinal water-blocking of the optical cable, and finally the MDPE sheath is extruded to form a cable. Water blocking ointment prevents longitudinal water seepage of optical cables.
Product application
● Overhead
Product characteristics
● Small outer diameter, light weight and convenient construction.
● Stable control of fiber remaining length.
● After the cable is formed, the additional attenuation of the fiber is close to zero, and the dispersion value does not change.
● Excellent environmental performance.
Performance characteristics
● Excellent water barrier layer with good water permeability resistance.
● Beam tube center design, the optical fiber is minimized in the lateral force resistance of the optical cable.
Cable Parameters
| Fiber Model | Tube Dia. mm | Jacket thickness mm | Cable OD. mm | Weight kg/km | Tensile resistance Long/short term N |
Crush resistance Long/short term N/100mm |
| GYXTY-2 ~ 12Xn | 2.0/2.2 | 2.8 | 8 | 60 | 600/1500 | 1000/3000 |
| GYXTY-16 ~ 24Xn | 2.3/2.6 | 2.6 | 8 | 60 | 600/1500 | 1000/3000 |
