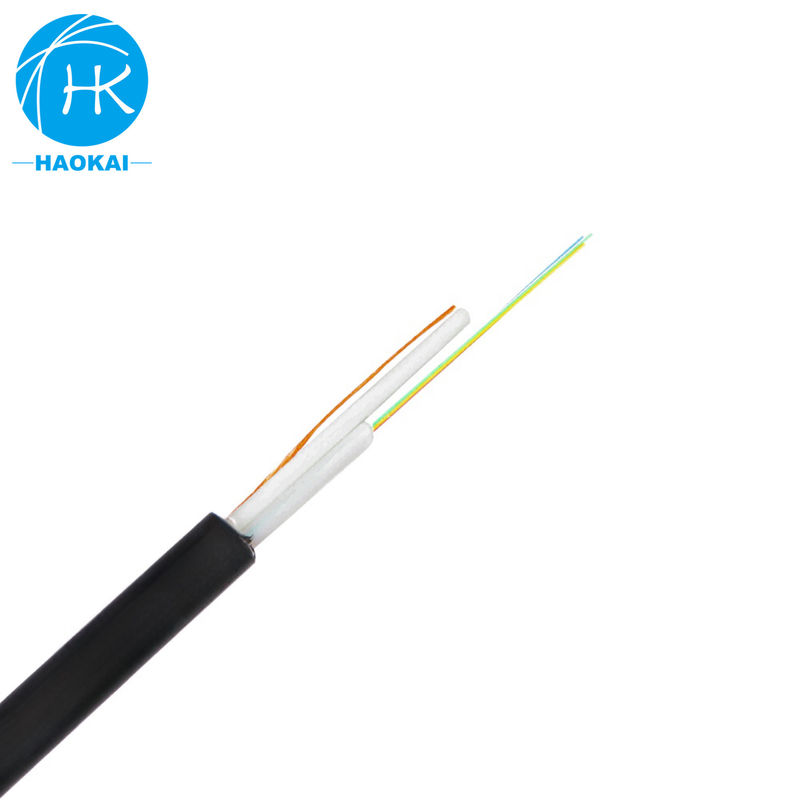

ASU Triangle Outdoor Fiber Cable For Short Span Overhead Or Buried Laying
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROHS/ISO/UL/SGS |
Model Number: | ASU |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000m |
---|---|
Price: | By negotiation |
Packaging Details: | Wooden/Pellet |
Delivery Time: | 1-5work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000m/1day |
Detail Information |
|||
Installation: | Aerial | Strength Member: | FRP |
---|---|---|---|
Other Name: | 12 Core Fiber Optic Cable Single Mode | Cable Count: | 2-12 |
Loose Tube: | PBT | Water Blocking: | Compound Filling Gel |
Fiber: | ITU Standard | Sheath Material: | PE |
Armoured: | Steel Tape+AL Tape | Bend Radius: | 10x/15x/20x/25x/30x/35x/40x/45x/50x/55x/60x |
High Light: | Triangle Outdoor Fiber Cable,Short Span Overhead Outdoor Fiber Cable,ASU Fiber Optic Cable |
Product Description

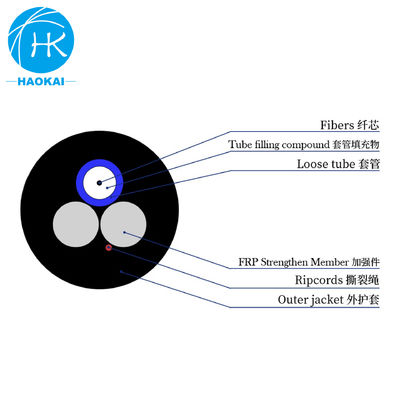

ASU Brazil Triangle Optical Cable
Product application
● Overhead
Product characteristics
● optical cable is small in size and light in weight.
● Two RRP as stiffeners provide good tensile properties
● Dry or ointment filling, good water resistance
● Affordable, high fiber capacity
● Suitable for short span overhead or buried laying.
Cable Parameters
Fiber Model | Tube Dia. mm |
Cable OD. mm |
Weight kg/km |
Tensile resistance Long/short term N |
Crush resistance Long/short term N/100m |
ASU-2-12Xn | 1.8/2.1 | 7.0 | 50 | 500/1000 | 500/1000 |
ASU-16-24Xn | 2.2/2.5 | 7.0 | 50 | 500/1000 | 500/1000 |
