Y Sheathed Outdoor Optical Cable Non Metallic Reinforced Core GYFTY
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROHS/ISO/UL/SGS |
Model Number: | GYFTY |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000m |
---|---|
Price: | By negotiation |
Packaging Details: | Wooden/Pellet |
Delivery Time: | 1-5work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000m/1day |
Detail Information |
|||
Structuer: | Stranded Loose Tube | Core: | 24 |
---|---|---|---|
Material Of Jacket: | PE | Outer Sheath: | PE/LSZH/PU |
Keyword: | Outdoor Fiber Optic Cable | Fiber: | ITU Standard |
Water Blocking Material: | Water Blocking Yarn/tape | Installation: | Aerial/duct/tube |
Cable Od: | 8.0mm | Strenth Member: | FRP |
Fiber Brand: | Corning | ||
High Light: | Non Metallic Reinforced Core Optical Cable,Fiber Optic Cable GYFTY,Y Sheathed Outdoor Optical Cable |
Product Description

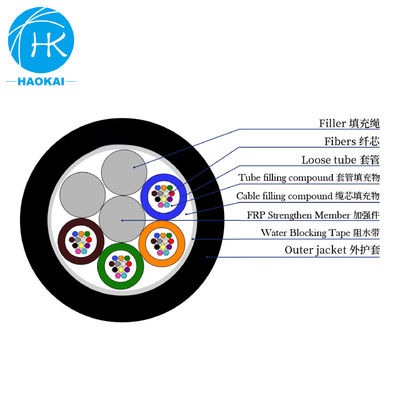

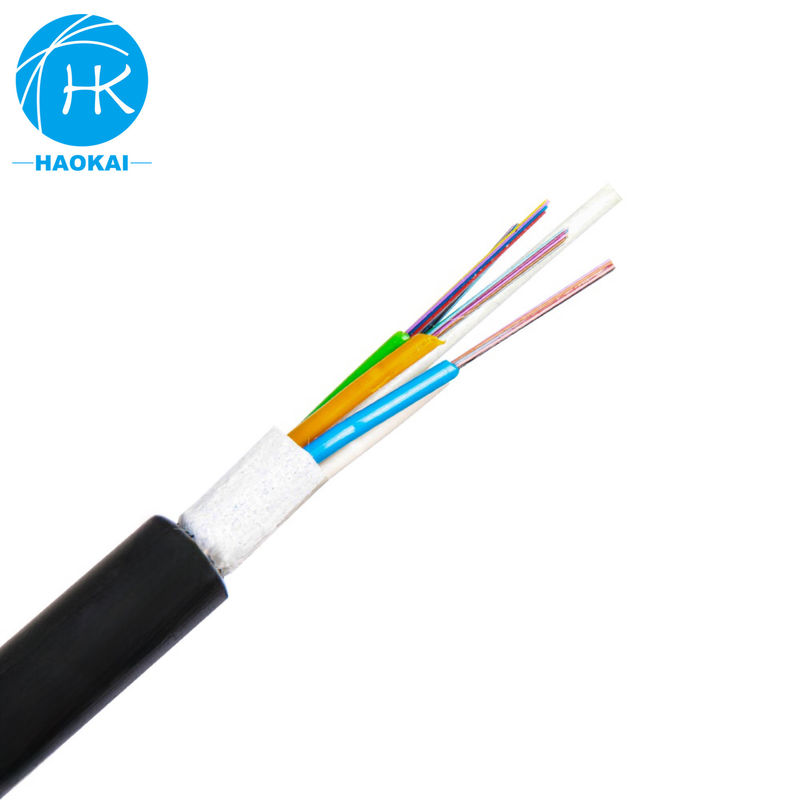

GYFTY Non-Metallic Reinforced Core Y-Sheathed Outdoor Optical Cable
Product application
● Overhead
● High Voltage Induction Region
Product characteristics
● Has good mechanical properties and temperature characteristics.
● The loose sleeve material itself has good hydrolysis resistance and high strength.
● The pipe is filled with special ointment to protect the optical fiber critically.
● Good compression resistance and softness
● The following measures are adopted to ensure the waterproof performance of optical cables:
-Single nonmetallic center strengthening core
-Loose sleeve filled with special waterproof compound
-Full core filling
Cable Parameters
cable type (Increment by 2 fibers) |
cable core Number of units |
Loose Sleeve Maximum number of fibers |
cable diameter mm |
optical cable weight kg/km | allowable tensile force Long-term/short-term N |
allowable flattening force Long-term/short-term N/100mm |
GYFTY-2 ~ 36Xn | 6 | 12 | 9.5 | 85 | 600/1500 | 300/1000 |
GYFTY-48 ~ 60Xn | 6 | 12 | 10.0 | 95 | 1000/3000 | 300/1000 |
GYFTY-64 ~ 72Xn | 6 | 12 | 11.0 | 110 | 1000/3000 | 300/1000 |
GYFTY-96Xn | 8 | 12 | 12.5 | 130 | 1000/3000 | 300/1000 |
GYFTY-122 ~ 144Xn | 12 | 12 | 15.5 | 210 | 1000/3000 | 300/1000 |
