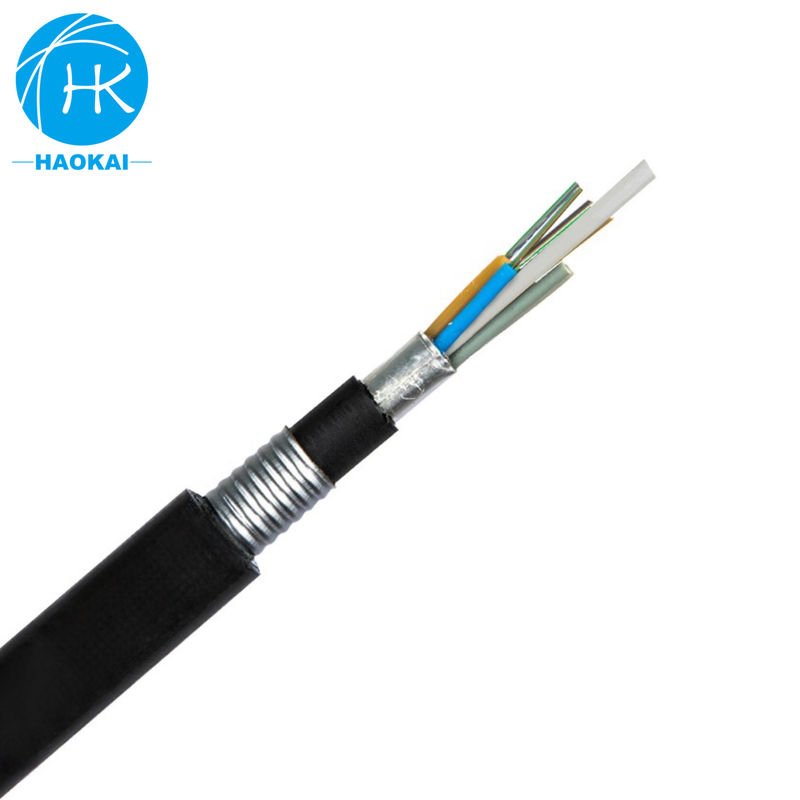

Armored Outdoor Fiber Optical Cable Double PE Sheath GYFTA53

Armored Outdoor Fiber Optical Cable Double PE Sheath GYFTA53

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROHS/ISO/UL/SGS
Model Number: GYFTA53

Payment & Shipping Terms:

Minimum Order Quantity: 10000m
Price: By negotiation
Packaging Details: Wooden/Pellet
Delivery Time: 1-5work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000m/1day
Get Best Price Contact Now

Detail Information

Sheath Material: PE Cable Od: 8.0mm
Fiber Type: Single-mode/ Multimode Outer Jacket: LSZH
Bend Radius: 10D/20D/30D Out Sheath: PE Jacket
Strength Menber: Steel Wire
High Light:

Armored Outdoor Fiber Optical Cable

,

PE Sheath Outdoor Fiber Optical Cable

,

Double Sheath Armoured Outdoor Cable

Product Description


Product application
● Piercing
Overhead
● Direct Buried


Product characteristics

Has good mechanical properties and temperature characteristics.
The loose sleeve material itself has good hydrolysis resistance and high strength
● The pipe is filled with special ointment to protect the optical fiber critically.
Good compression resistance and softness

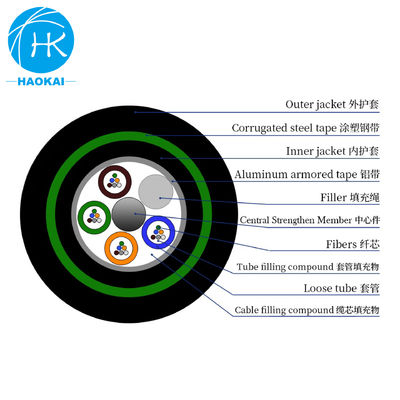

● The following measures are adopted to ensure the waterproof performance of optical cables:
  -Single metal center strengthening core
  -Loose sleeve filled with special waterproof compound
  -Full core filling
  -plastic coated aluminum tape (APL) moisture barrier

  -Full core filling

-plastic coated aluminum tape (APL) moisture barrier

  -Double-sided plastic coated steel strip (PSP) improves moisture permeability of optical cables

  -Good water blocking material prevents longitudinal water seepage of optical cables





Cable Parameters

 Fiber Model     Tube Dia. mm Jacket thickness mm  Cable OD. mm   Weight kg/km  Tensile resistance
  Long/short term
N
  Crush resistance
     Long/short term      N/100mm
GYTA53-2 ~ 36Xn 5 12 11.6 140 1000/3000 300/1000
GYTA53-48 ~ 60Xn 5 12 12.5 170 1000/3000 300/1000
GYTA53-64 ~ 72Xn 6 12 13 175 1000/3000 300/1000
GYTA53-96Xn 8 12 14.5 205 1000/3000 300/1000
GYTA53-122 ~ 144Xn 12 12 17.5 300 1000/3000 300/1000
