Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROHS/ISO/UL/SGS
Model Number: GJXH

Payment & Shipping Terms:

Minimum Order Quantity: 10000m
Price: By negotiation
Packaging Details: Wooden/Pellet
Delivery Time: 1-5work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000m/1day
Get Best Price Contact Now

Detail Information

Wavelength: 1260/1480nm,1310nm/1490nm/1550nm Cable Diameter: 2.0-3.0mm
Package: 2km/roll/3km/roll Storage Temperature: -40℃~+70℃
Jacket Sheath: PVC, LSZH, PE Product: GJYXCH
Jacke: PVC Or LSZH Service: OEM/ODM
Installation Style: Indoor & Outdoor Self-Support Drop Cable
High Light:

FTTH Aerial Fiber Optic Cable

,

LSZH Aerial Fiber Optic Cable

,

2core Outdoor Drop Fiber Cable

Product Description

Ftth Aerial Fiber Optic Cable 2core Outdoor Drop Fiber Cable With LSZH Black Color





Product Description

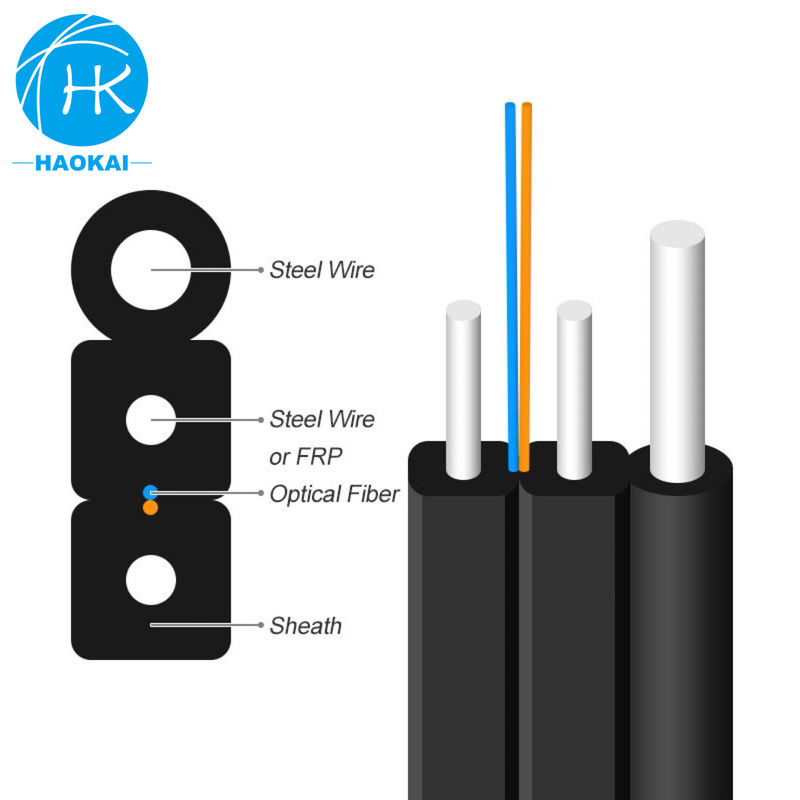

GJXH optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.



Product application

• Patch cord

• Tail cable

• Indoor pigtail | wiring | pigtail cable


Product characteristics

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
Single steel wire as the additional strength member ensure good performance of tensile strength.
Simple structure, light weight and high practicability.

Novel flute design. easily strip and splice, simplify the installation and maintenance.

Low smoke, zero halogen and flame retardant sheath.





Cable Parameters

 Fiber Model Fiber Count Cable Size
(mm)
steels specifications
mm
  Weight kg/km  Tensile resistance
  Long/short term
N
  Crush resistance
     Long/short term      N/100mm
GJXH 1-4 3.0*2.0 2*0.45 10 40/80 500/1000
GJXCH 1-4 5.0*2.0 1.0+2*0.45 20 300/600 1000/2200
