FTTH Drop Fiber Optic Cable FRP KFRP 1core Fiber Optical Cable LSZH
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | HAOKAI |
| Certification: | ROHS/ISO/UL/SGS |
| Model Number: | GJXH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000m |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Wooden/Pellet |
| Delivery Time: | 1-5work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000m/1day |
|
Detail Information |
|||
| Cable Weight: | 21kg/Km | Fiber Count: | 1-4 |
|---|---|---|---|
| Packing: | Custom Packing | Type: | Fiber Optic Cable |
| Connector Type: | SC/APC/UPC | Keyword: | FTTH Drop Cable |
| Laying Method: | FTTH/FTTX/FTTA | Product: | GJYXCH |
| Messenger: | 0.5, 1.0, 1.2mm Optional | Messenger Material: | Steel Wire/FRP |
| High Light: | FTTH Drop Fiber Optic Cable,1core Fiber Optical Cable,Fiber Optical Cable LSZH |
||
Product Description

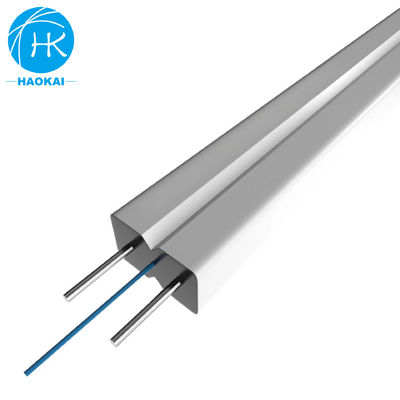

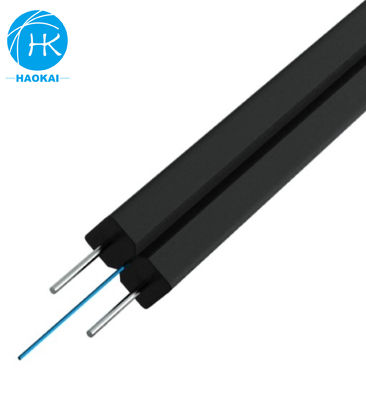

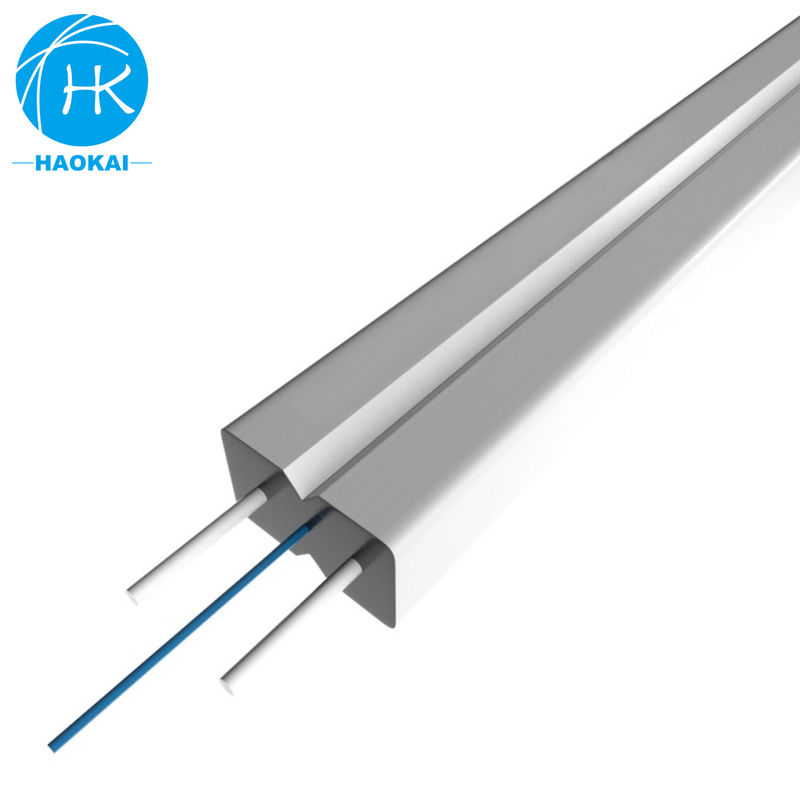

FTTH Drop Fiber Optic Cable FRP KFRP 1core Fiber Optical Cable LSZH
Product Description

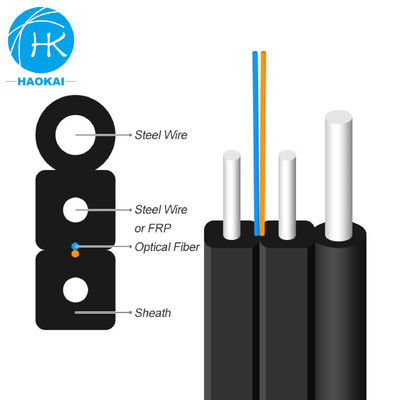

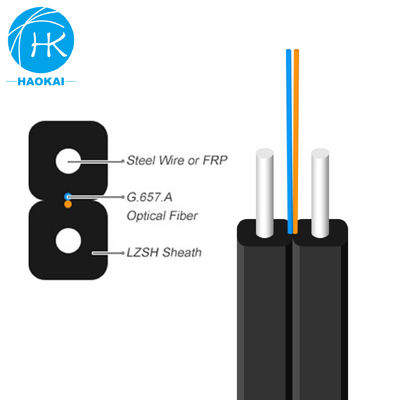

GJXH optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
Product application
• Patch cord
• Tail cable
• Indoor pigtail | wiring | pigtail cable
Product characteristics
●Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
●Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
● Single steel wire as the additional strength member ensure good performance of tensile strength.
● Simple structure, light weight and high practicability.
●Novel flute design. easily strip and splice, simplify the installation and maintenance.
●Low smoke, zero halogen and flame retardant sheath.
Cable Parameters
| Fiber Model | Fiber Count | Cable Size (mm) |
steels specifications mm |
Weight kg/km | Tensile resistance Long/short term N |
Crush resistance Long/short term N/100mm |
| GJXH | 1-4 | 3.0*2.0 | 2*0.45 | 10 | 40/80 | 500/1000 |
| GJXCH | 1-4 | 5.0*2.0 | 1.0+2*0.45 | 20 | 300/600 | 1000/2200 |
