Indoor FTTH Drop Cable 2core 4core FRP Steel Wire FTTH Fiber To The Home
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROHS/ISO/UL/SGS |
Model Number: | GJXH |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000m |
---|---|
Price: | By negotiation |
Packaging Details: | Wooden/Pellet |
Delivery Time: | 1-5work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000m/1day |
Detail Information |
|||
Sample Status: | In Stock | Wavelength: | 1260 To 1650nm |
---|---|---|---|
Jacket Sheath: | PVC, LSZH, PE | Outer Jacket Materail: | LSZH |
Operating Temperature: | -20℃ To +70℃ | Type: | FTTH Drop Cable |
Construction: | 2pcs Steels | Strenth Member: | 1.0mm Steel Wire Or FRP |
High Light: | Indoor FTTH Drop Cable,Steel Wire FTTH Drop Cable,4core Fiber Drop Cable |
Product Description
Fiber Drop Cable Indoor 2core 4core FRP Steel Wire Ftth Fiber To The Home
Product Description

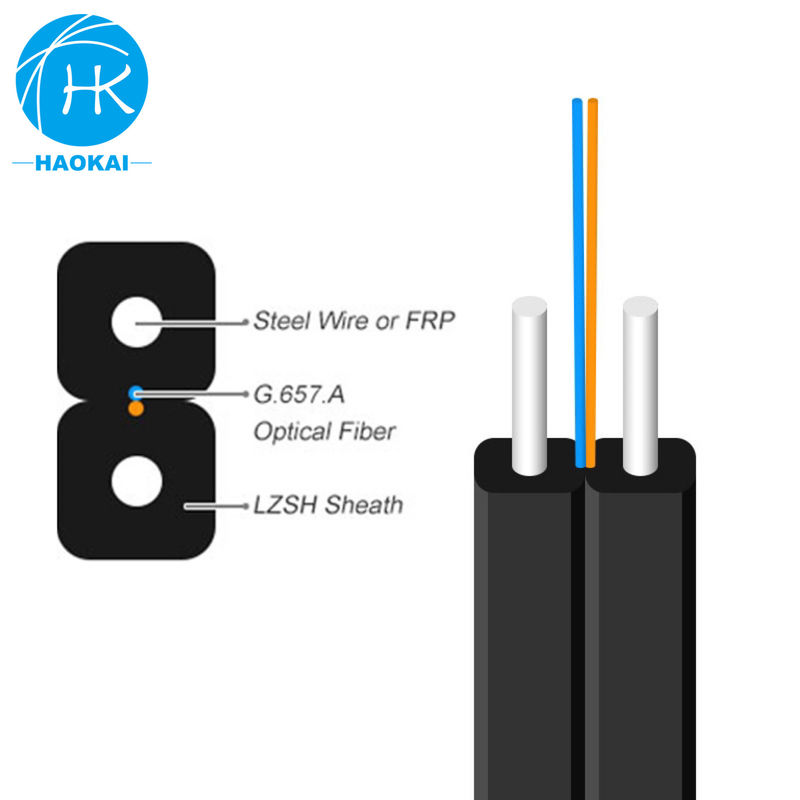

GJXH optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
Product application
• Patch cord
• Tail cable
• Indoor pigtail | wiring | pigtail cable
Product characteristics
●Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
●Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
● Single steel wire as the additional strength member ensure good performance of tensile strength.
● Simple structure, light weight and high practicability.
●Novel flute design. easily strip and splice, simplify the installation and maintenance.
●Low smoke, zero halogen and flame retardant sheath.
Cable Parameters
Fiber Model | Fiber Count | Cable Size (mm) |
steels specifications mm |
Weight kg/km | Tensile resistance Long/short term N |
Crush resistance Long/short term N/100mm |
GJXH | 1-4 | 3.0*2.0 | 2*0.45 | 10 | 40/80 | 500/1000 |

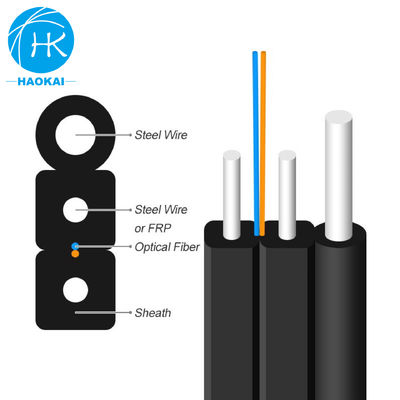

GJXCH | 1-4 | 5.0*2.0 | 1.0+2*0.45 | 20 | 300/600 | 1000/2200 |
