• 1 Core FRP Flat FTTH Drop Cable 1 - 12 Fibers GYFXTY GYFXTBY Self Supporting Cable
1 Core FRP Flat FTTH Drop Cable 1 - 12 Fibers GYFXTY GYFXTBY Self Supporting Cable

1 Core FRP Flat FTTH Drop Cable 1 - 12 Fibers GYFXTY GYFXTBY Self Supporting Cable

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROHS/ISO/UL/SGS
Model Number: GJXH

Payment & Shipping Terms:

Minimum Order Quantity: 10000m
Price: By negotiation
Packaging Details: Wooden/Pellet
Delivery Time: 1-5work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000m/1day
Get Best Price Contact Now

Detail Information

Self Supporting Wire: 1.0mm Steel Wire Installation Style: Indoor & Outdoor Self-Support Drop Cable
Transport Package: Wooden-Drum Outer Jacket: LSZH
Temperature: -20℃+60℃ Messenger Material: Steel Wire/FRP
Cable Type: Optical Fiber Cable Fiber Brand: YOFC
Fiber Core: G652D/G657A1/G657A2 Weight: 32kg
Usage: FTTH Messenger: Steel Wire
High Light:

Flat FTTH Drop Cable

,

1 Core FTTH Drop Cable

,

FTTH Self Supporting Cable

Product Description

Flat Drop Cable 1-12 Fibers GYFXTY GYFXTBY Self Supporting Cable 1 Core Fiber Optic Cable Frp





Product Description

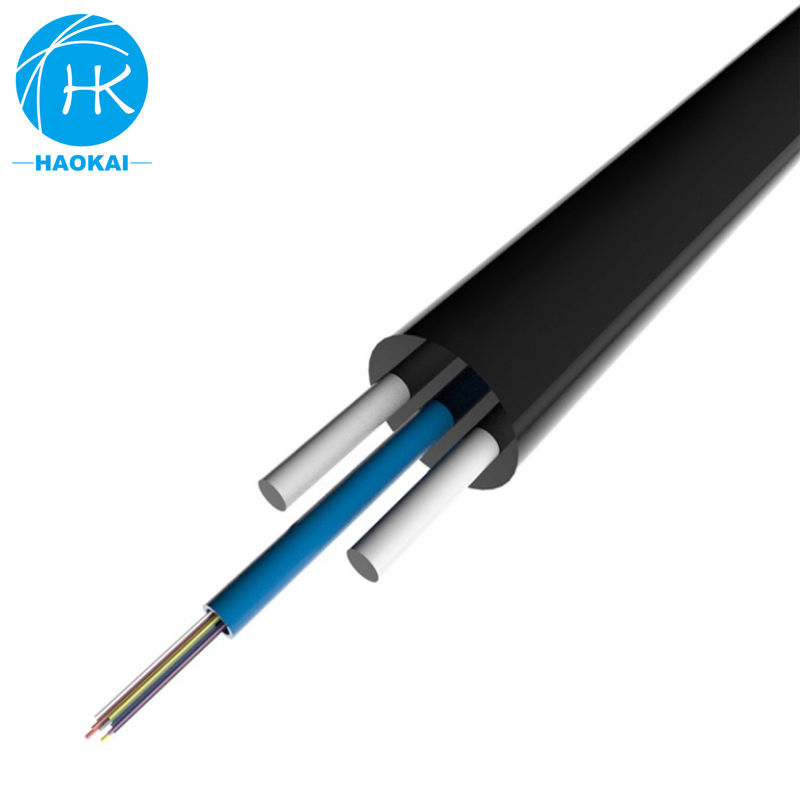

GJXH optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.



Product application

• Patch cord

• Tail cable

• Indoor pigtail | wiring | pigtail cable


Product characteristics

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
Single steel wire as the additional strength member ensure good performance of tensile strength.
Simple structure, light weight and high practicability.

Novel flute design. easily strip and splice, simplify the installation and maintenance.

Low smoke, zero halogen and flame retardant sheath.





Cable Parameters

 Fiber Model Fiber Count Cable Size
(mm)
steels specifications
mm
  Weight kg/km  Tensile resistance
  Long/short term
N
  Crush resistance
     Long/short term      N/100mm
GJXH 1-4 3.0*2.0 2*0.45 10 40/80 500/1000
GJXCH 1-4 5.0*2.0 1.0+2*0.45 20 300/600 1000/2200
