FTTH Indoor Drop Cable Steel Wire 1core 2core 4core Self Supporting Fiber Optical Cable
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROHS/ISO/UL/SGS |
Model Number: | GJXH |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000m |
---|---|
Price: | By negotiation |
Packaging Details: | Wooden/Pellet |
Delivery Time: | 1-5work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000m/1day |
Detail Information |
|||
Item: | FTTH Indoor Cable | Cable Material: | LSZH |
---|---|---|---|
Cable Weight: | 21kg/km | Crush Resistance: | 1000N/100mm |
Armored: | Steel Wire | Wavelength: | 1260/1480nm,1310nm/1490nm/1550nm |
Type: | Fiber Optic Cable, Self-supporting | ||
High Light: | FTTH Indoor Drop Cable,Steel Wire FTTH Cable,4core Fiber Optical Cable |
Product Description
FTTH Indoor Drop Cable Steel Wire 1core 2core 4core Self-Supporting Fiber Optical Cable White
Product Description

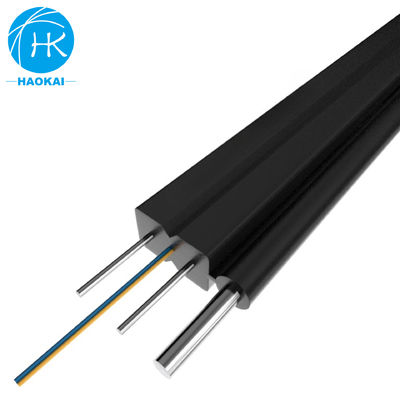

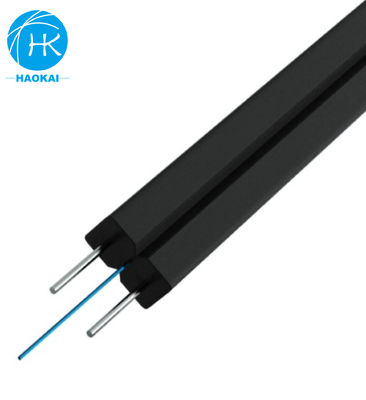

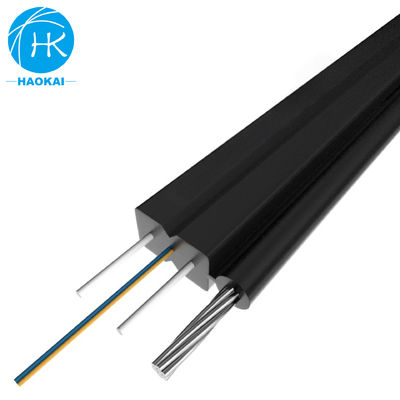

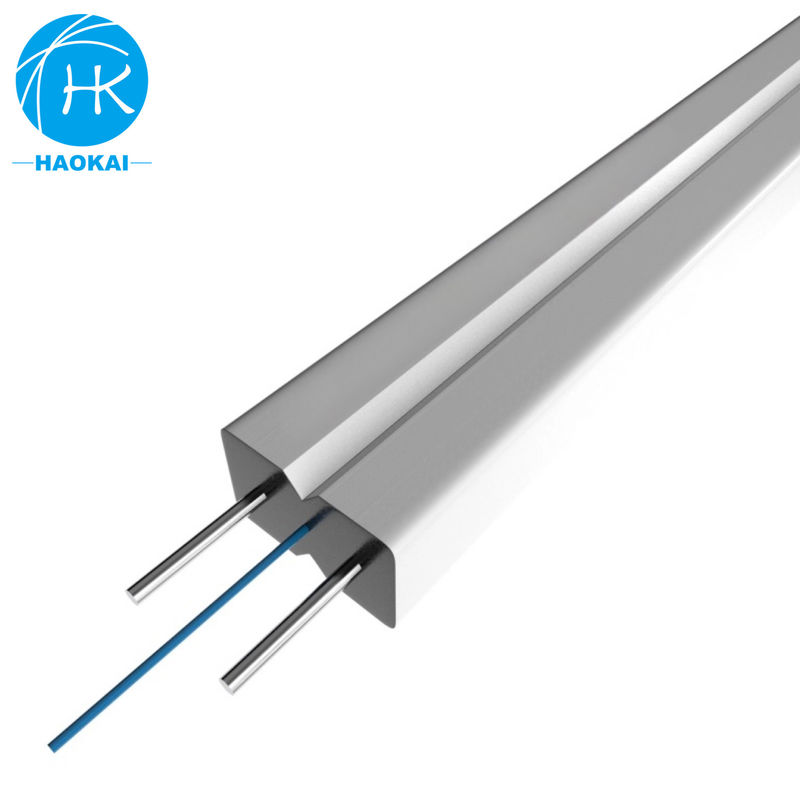

GJXH optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
Product application
• Patch cord
• Tail cable
• Indoor pigtail | wiring | pigtail cable
Product characteristics
●Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
●Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
● Single steel wire as the additional strength member ensure good performance of tensile strength.
● Simple structure, light weight and high practicability.
●Novel flute design. easily strip and splice, simplify the installation and maintenance.
●Low smoke, zero halogen and flame retardant sheath.
Cable Parameters
Fiber Model | Fiber Count | Cable Size (mm) |
steels specifications mm |
Weight kg/km | Tensile resistance Long/short term N |
Crush resistance Long/short term N/100mm |
GJXH | 1-4 | 3.0*2.0 | 2*0.45 | 10 | 40/80 | 500/1000 |
GJXCH | 1-4 | 5.0*2.0 | 1.0+2*0.45 | 20 | 300/600 | 1000/2200 |
