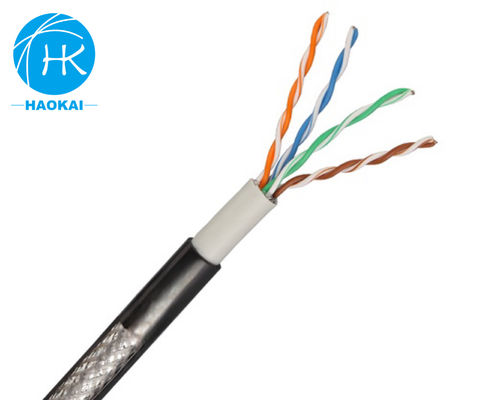

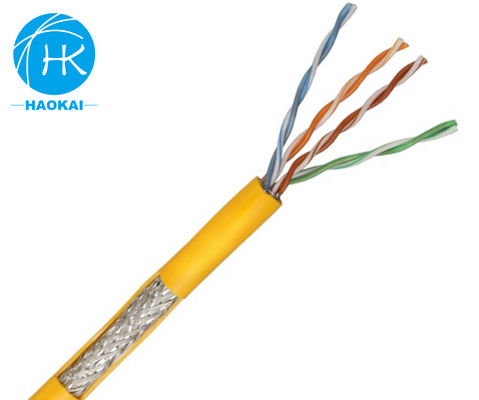

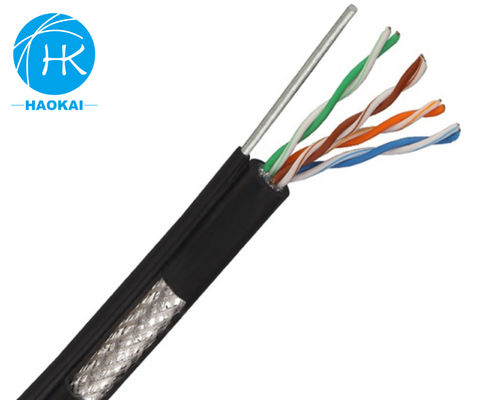

CCA Indoor LAN Network Cable SFTP CAT5E Eco Friendly PVC Jacket
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | CE,ROSH |
Model Number: | SFTP CAT5e cable |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000m |
---|---|
Price: | By negotiation |
Packaging Details: | BOX |
Delivery Time: | 7 work days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 100000m/1day |
Detail Information |
|||
Colors: | Blue-White/Blue,Orange-White/Orange | Material: | BC,CCA |
---|---|---|---|
Transmission Distance: | 100m | Operating Temperature: | -20 To 60°C (-4 To 140°F) |
Connector: | RJ45 CAT6 8P8C | Out Jacket: | PVC , PVC LSZH , PVC CMR UL/ETL |
Shielding Type: | Shielded (SFTP) | Conductor: | 0.50±0.005mm Solid Bare Copper |
High Light: | Indoor LAN Network Cable,CCA LAN Network Cable,SFTP CAT5E LAN Cable |
Product Description
SFTP CAT5E Lan Cable Cat5e Stp Cable Cat5e Cca SFTP CAT5E Indoor Lan Cable Cat5e Stp Cat5
Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.
Electronic Characteristics
Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S
Transmission Performance for reference
Frequency
MHz |
Attenuation
Max
dB/100m |
NEXT
Min.
dB/100m |
PSNEXT
Min.
dB/100m |
ELFEXT
Min.
db/100m |
RL
Min.
dB |
PHASE
VELOCITY
MIN(M/S) |
PHASE
DELAY
MAX(ns/100m) |
1 | 1.9 | 74 | 72 | 68 | 20 | 0.585c | 570 |
4 | 3.7 | 65 | 63 | 56 | 23 | --- | 552 |
10 | 5.9 | 59 | 57 | 48 | 25 | 0.611c | 545 |
16 | 7.5 | 56 | 54 | 44 | 25 | --- | 543 |
20 | 8.4 | 55 | 53 | 42 | 25 | --- | 542 |
31.25 | 10.6 | 52 | 50 | 38 | 23.6 | --- | 540 |
62.5 | 15.4 | 47 | 45 | 32 | 21.5 | --- | 539 |
100 | 19.8 | 44 | 42 | 28 | 20.1 | 0.620c | 538 |
200 | 29.0 | 40 | 38 | 22 | 18 | 537 | |
250 | 32.8 | 38 | 36 | 20 | 17.3 | 0.622c | 536 |
Package Details
305meters or 1000ft pull box or wooden drum
Two boxes into a carton
