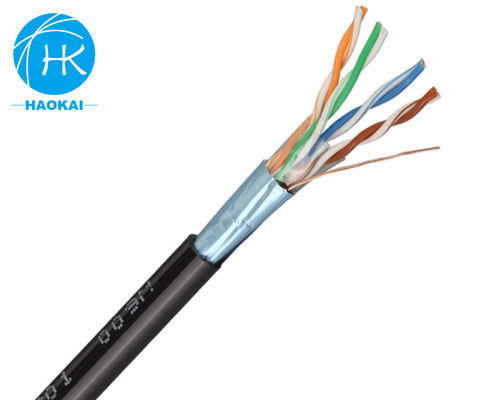

FTP CAT5E Outdoor LAN Cable Pure Copper Internet Cable High Temperature Resistance
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | CE,ROSH |
Model Number: | FTP CAT5e cable |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000m |
---|---|
Price: | By negotiation |
Packaging Details: | BOX |
Delivery Time: | 7 work days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 100000m/1day |
Detail Information |
|||
Jacket Material: | PVC | Color: | Black |
---|---|---|---|
Material: | BC,CCA | Type: | U/utp Cat6a |
Pairs: | 4 Pairs | Length: | 305M |
Data Rate Support: | 1000Mbps | Jakcet: | UV-PE |
Cable Color: | Blue | ||
High Light: | FTP CAT5E Outdoor LAN Cable,Pure Copper CAT5E LAN Cable,CAT5E Outdoor Internet Cable |
Product Description
FTP CAT5E Outdoor Lan Cable Ftp Cat5e Outdoor Internet Cable Ftp Outdoor Cable Ftp Cat5e Jelly Filled
Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.
Electronic Characteristics
Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S
Transmission Performance for reference
Frequency
MHz |
Attenuation
Max
dB/100m |
NEXT
Min.
dB/100m |
PSNEXT
Min.
dB/100m |
ELFEXT
Min.
db/100m |
RL
Min.
dB |
PHASE
VELOCITY
MIN(M/S) |
PHASE
DELAY
MAX(ns/100m) |
1 | 1.9 | 74 | 72 | 68 | 20 | 0.585c | 570 |
4 | 3.7 | 65 | 63 | 56 | 23 | --- | 552 |
10 | 5.9 | 59 | 57 | 48 | 25 | 0.611c | 545 |
16 | 7.5 | 56 | 54 | 44 | 25 | --- | 543 |
20 | 8.4 | 55 | 53 | 42 | 25 | --- | 542 |
31.25 | 10.6 | 52 | 50 | 38 | 23.6 | --- | 540 |
62.5 | 15.4 | 47 | 45 | 32 | 21.5 | --- | 539 |
100 | 19.8 | 44 | 42 | 28 | 20.1 | 0.620c | 538 |
200 | 29.0 | 40 | 38 | 22 | 18 | 537 | |
250 | 32.8 | 38 | 36 | 20 | 17.3 | 0.622c | 536 |
Package Details
305meters or 1000ft pull box or wooden drum
Two boxes into a carton
