UTP CAT5E Outdoor LAN Cable Solid HDPE Insulation With Messenger

UTP CAT5E Outdoor LAN Cable Solid HDPE Insulation With Messenger

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: CE,ROSH
Model Number: FTP CAT5e cable

Payment & Shipping Terms:

Minimum Order Quantity: 10000m
Price: By negotiation
Packaging Details: BOX
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000m/1day
Get Best Price Contact Now

Detail Information

Colors: Blue-White/Blue,Orange-White/Orange Cable Jacket: PVC (Round)
Braiding: TC , 55% Coverage Cable Type: Cat6 Snagless Booted
Color: Black Rip Cord: Cotton Or Fibre
Pairs: 4 Pairs Logo: OEM
High Light:

UTP CAT5E Outdoor LAN Cable

,

Outdoor LAN Cable With Messenger

,

HDPE Insulation CAT5E Cable

Product Description

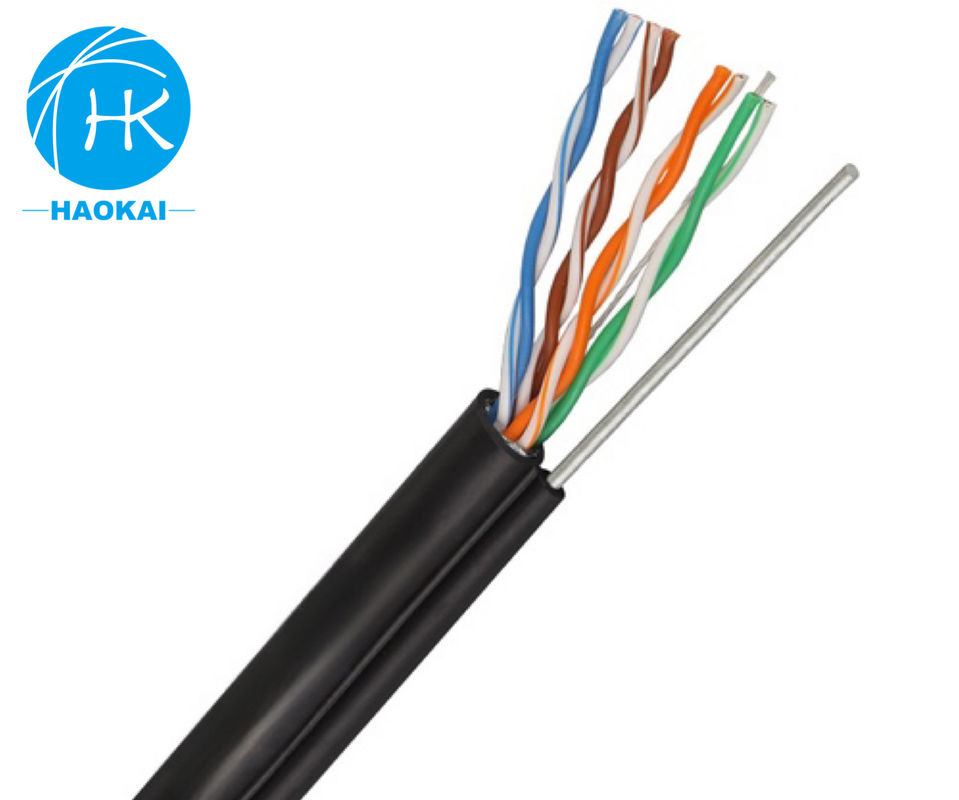

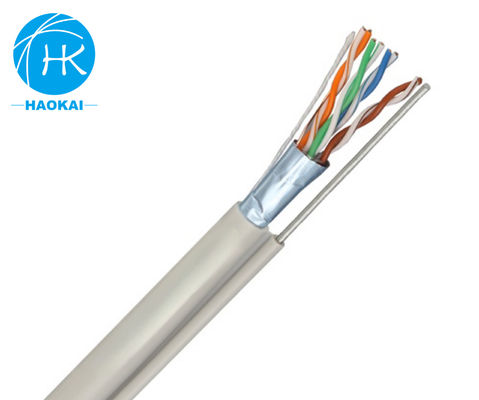

UTP CAT5E Outdoor Lan Cable With Messenger Outdoor Cable Utp Messenger



Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.





Appliacation

1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.

2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;

3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.

4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.

5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.

6. Color Availability: Additional cable colors available.





Electronic Characteristics

Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S





Transmission Performance for reference

Frequency



MHz

Attenuation



Max



dB/100m

NEXT



Min.



dB/100m

PSNEXT



Min.



dB/100m

ELFEXT



Min.



db/100m

RL



Min.



dB

PHASE



VELOCITY



MIN(M/S)

PHASE



DELAY



MAX(ns/100m)

1 1.9 74 72 68 20 0.585c 570
4 3.7 65 63 56 23 --- 552
10 5.9 59 57 48 25 0.611c 545
16 7.5 56 54 44 25 --- 543
20 8.4 55 53 42 25 --- 542
31.25 10.6 52 50 38 23.6 --- 540
62.5 15.4 47 45 32 21.5 --- 539
100 19.8 44 42 28 20.1 0.620c 538
200 29.0 40 38 22 18   537
250 32.8 38 36 20 17.3 0.622c 536




Package Details

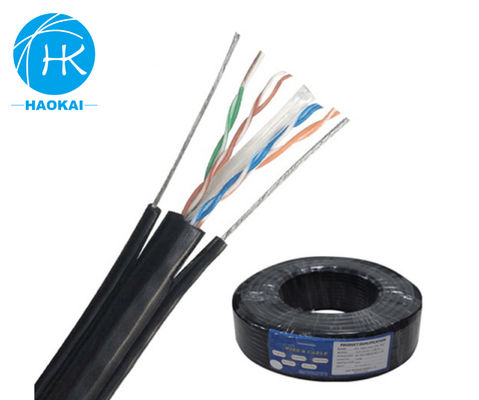

305meters or 1000ft pull box or wooden drum

Two boxes into a carton
