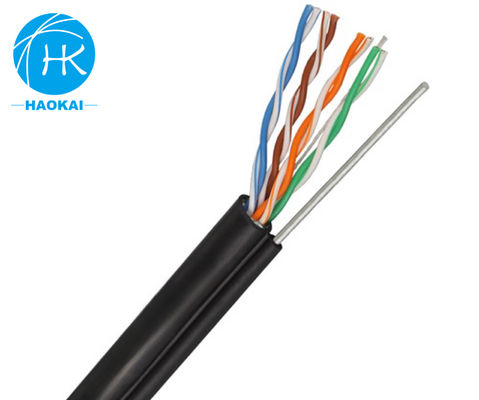

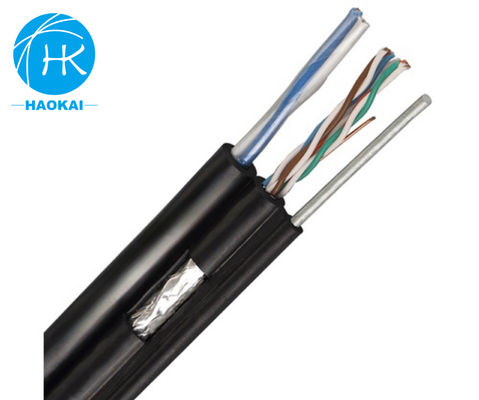

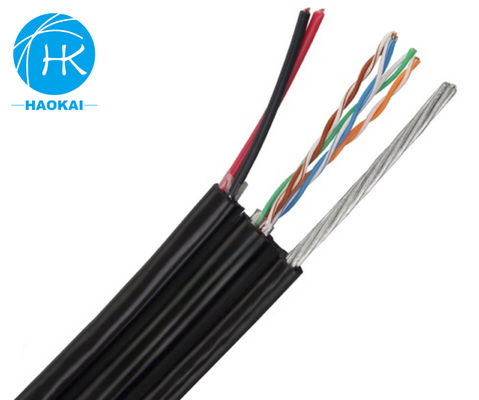

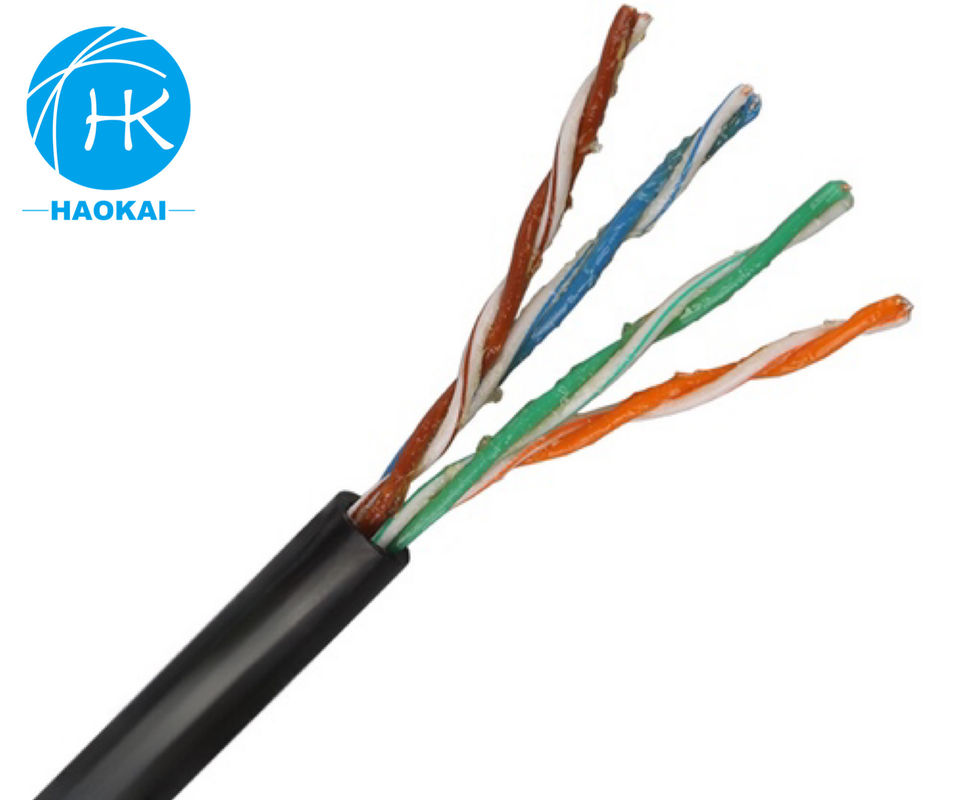

CCA UTP CAT5E LAN Cable Outdoor Jelly Filled High Temperature Resistance

CCA UTP CAT5E LAN Cable Outdoor Jelly Filled High Temperature Resistance

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: CE,ROSH
Model Number: UTP CAT5E cable

Payment & Shipping Terms:

Minimum Order Quantity: 10000m
Price: By negotiation
Packaging Details: BOX
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000m/1day
Get Best Price Contact Now

Detail Information

Application: FTTH FTTB FTTX Network Material: BC,CCA
Pairs: 4 Pairs Cable Length: 305M
Connector: RJ45 CAT6 8P8C Overall Shield: Al/PET Foil,Foil Face Out
High Light:

CAT5E LAN Cable Outdoor

,

Jelly Filled CAT5E LAN Cable

,

CCA Cat5e Network Cable

Product Description

UTP CAT5E Outdoor Lan Cable Jelly Filled 1000ft Utp Cat5e Lan Cable Jelly Filled Utp Cat5e Jelly Filled Lan Cable Cat5e



Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.





Appliacation

1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.

2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;

3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.

4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.

5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.

6. Color Availability: Additional cable colors available.





Electronic Characteristics

Impedance: 100± 15(ohms).

Rated Temperture: 75º C

DC Resistance unbalance(%): Max2.5

DC Resistance 20º C: 8.4(Ohms/100m)

Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)

Transfer Impendance: Max 10 mohms/m@100MHz.

Installation Resistance: >5000MΩ *KM

Dielectric strength: DC 2500V 2S





Transmission Performance for reference

Frequency (MHz)

Attenuation

<dB

RL

>dB

NEXT

>dB

ELFEXT

>dB

PS NEXT

>dB

PS ELFEXT

>dB

DELAY

>dB

1 1.95 20.1 65.3 63.8 62.3 62.8 569
4 4.1 23 56.3 51.7 53.3 48.7 552
8 5.8 24.5 51.8 45.7 48.8 42.7 546.7
10 6.5 25 50.3 42.8 47.3 40.8 545.4
16 8.2 25 47.3 39.7 44.2 36.7 543
20 9.3 25 48.5 37.7 42.9 34.7 542
25 10.4 24.3 44.3 35.8 41.3 32.8 541.2
31.25 11.6 23.6 42.9 33.9 39.9 30.9 540.4
62.5 17 21.5 38.4 27.8 35.4 24.8 538.6
100 22 20.1 35.3 23.8 32.3 20.8 537.6




Package Details

305meters or 1000ft pull box or wooden drum

Two boxes into a carton
