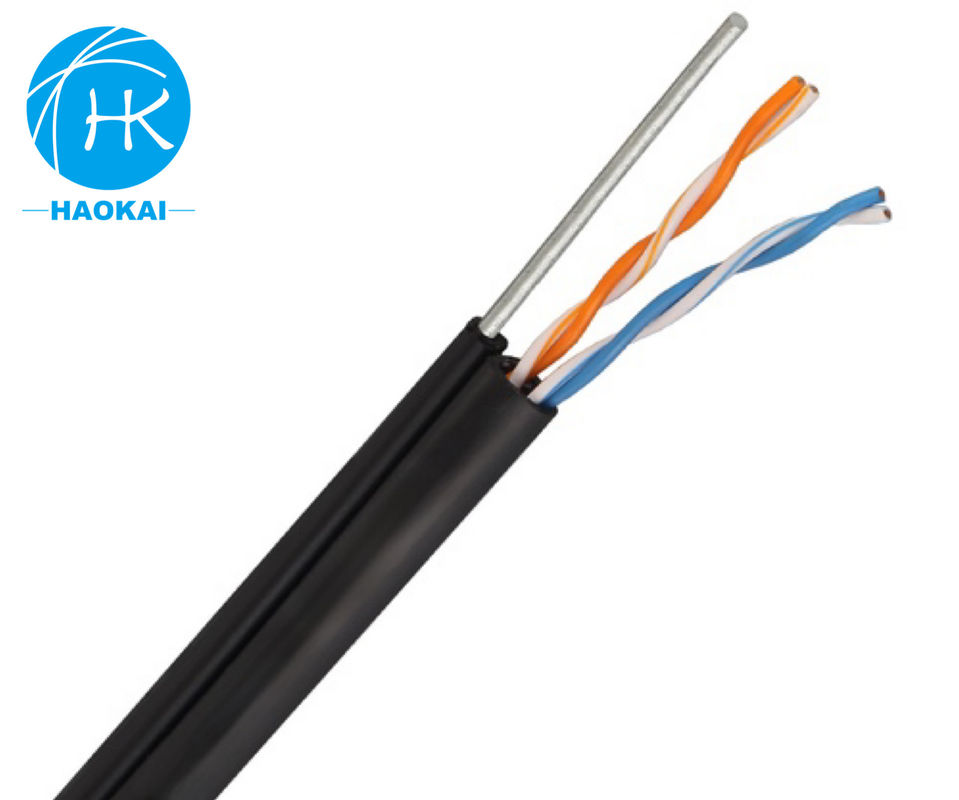

Outdoor 2 Pair Lan Cable UTP CAT5E With Messenger 4pr 24awg

Outdoor 2 Pair Lan Cable UTP CAT5E With Messenger 4pr 24awg

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: CE,ROSH
Model Number: UTP CAT5E cable

Payment & Shipping Terms:

Minimum Order Quantity: 10000m
Price: By negotiation
Packaging Details: BOX
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000m/1day
Get Best Price Contact Now

Detail Information

Jacket Material: PVC Number Of Conductors: 4
Power: Stranded CCA Wire Logo: OEM
Conductor: Bare Copper Length: 305M
Shielding Type: Shielded (SFTP) Material: BC,CCA
High Light:

Outdoor 2 Pair Lan Cable

,

24awg Two Pair Lan Cable

,

Outdoor Lan Cable CAT5E

Product Description

UTP CAT5E 2pairs Outdoor Lan Cable With Messenger Cat5e With Messenger Cat5e Utp 4pr 24awg Cat5e Outdoor



Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.





Appliacation

1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.

2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;

3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.

4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.

5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.

6. Color Availability: Additional cable colors available.





Electronic Characteristics

Impedance: 100± 15(ohms).

Rated Temperture: 75º C

DC Resistance unbalance(%): Max2.5

DC Resistance 20º C: 8.4(Ohms/100m)

Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)

Transfer Impendance: Max 10 mohms/m@100MHz.

Installation Resistance: >5000MΩ *KM

Dielectric strength: DC 2500V 2S





Transmission Performance for reference

Frequency (MHz)

Attenuation

<dB

RL

>dB

NEXT

>dB

ELFEXT

>dB

PS NEXT

>dB

PS ELFEXT

>dB

DELAY

>dB

1 1.95 20.1 65.3 63.8 62.3 62.8 569
4 4.1 23 56.3 51.7 53.3 48.7 552
8 5.8 24.5 51.8 45.7 48.8 42.7 546.7
10 6.5 25 50.3 42.8 47.3 40.8 545.4
16 8.2 25 47.3 39.7 44.2 36.7 543
20 9.3 25 48.5 37.7 42.9 34.7 542
25 10.4 24.3 44.3 35.8 41.3 32.8 541.2
31.25 11.6 23.6 42.9 33.9 39.9 30.9 540.4
62.5 17 21.5 38.4 27.8 35.4 24.8 538.6
100 22 20.1 35.3 23.8 32.3 20.8 537.6




Package Details

305meters or 1000ft pull box or wooden drum

Two boxes into a carton
