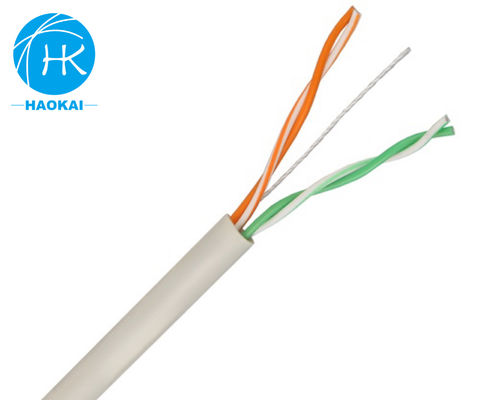

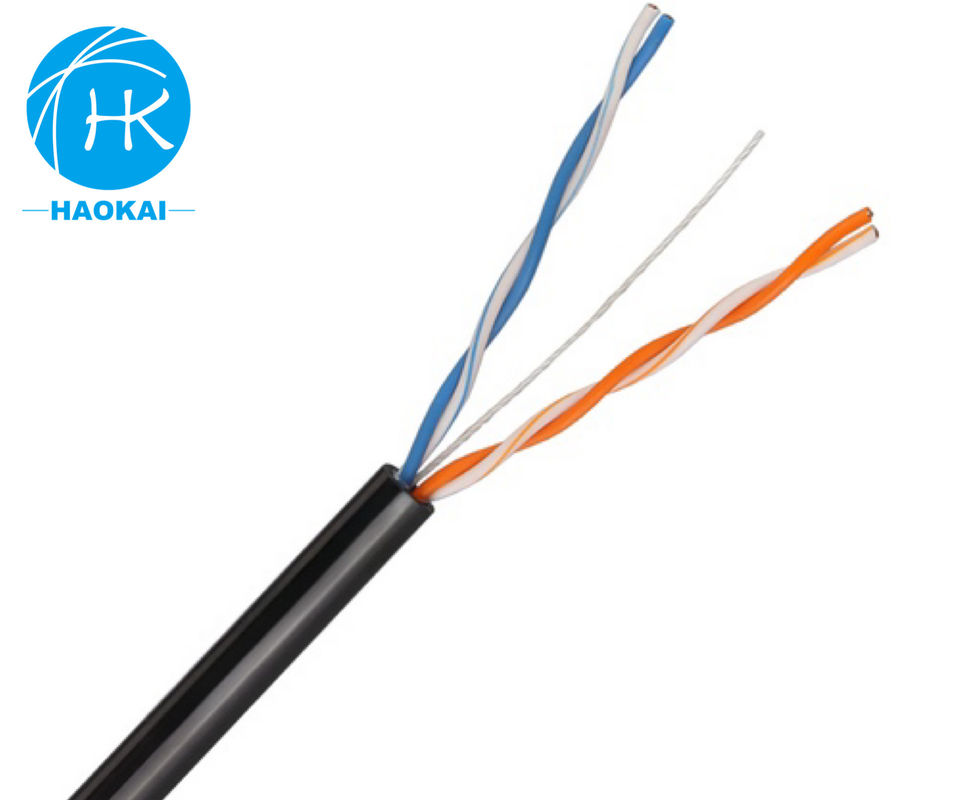

300m Outdoor Internet LAN Cable 2pair UTP CAT5E Ethernet Cable

300m Outdoor Internet LAN Cable 2pair UTP CAT5E Ethernet Cable

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: CE,ROSH
Model Number: UTP CAT5 cable

Payment & Shipping Terms:

Minimum Order Quantity: 10000m
Price: By negotiation
Packaging Details: BOX
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000m/1day
Get Best Price Contact Now

Detail Information

Features: Snagless, Gold-plated Connectors, Stranded, TIA/EIA-568-B.2-1 Compliant Jacket: PVC
Category: Cat 6 Insulation: 1.35 Mm Skin-Foam-Skin
Overall Shield: TC Or AL_MG Braiding Type: Ethernet Patch (RJ-45)
High Light:

Outdoor LAN Cable 2pair

,

UTP CAT5E Ethernet Cable

,

300m Outdoor Internet Cable

Product Description

UTP CAT5E Outdoor Lan Cable 2pair Cat5e Ethernet Cable Cat5e Outdoor Cat5e Lan Cable Cat5e Cable 300m



Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.





Appliacation

1. Exceeds requirements of ANSI/TIA-568-C. 2 Category 5/ Category 3 and ISO 11801 2nd Edition Class C channel standards.

2. Exceed requirements of ANSI/TIA-568-C. 2 Category 5/ Category 3 Component standards;

3. Descending length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.

4. Color Availability: Additional cable colors available.

5. Patent products: CN200920124769.9.





Mechanical Characteristics

Cable under the minimum tension ≥ 400N

Conductor elongation: ≥ 15%

Jacket before Aging

Tensile strength ≥ 13.5Mpa

Elongation≥ 150%

Jacket after Aging

Tensile strength ≥ 12.5Mpa

Elongation≥ 125%



Electronic Characteristics

Impedance: 1-16MHz 100± 15(ohms).

Max. Mutual Capacitance: 6.6nF/100m

Max. Unbalanced DC resistance: 2.5%

Max. Differential phase delay: 45nF/100m

Permitted bend radius: 10 times diameter of the cable

Min. Dielectric Strength Between Conductors: 1.0kV/min

Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)

Installation Resistance: >5000MΩ *KM

Dielectric strength: DC 2500V 2S

Operating temperature: -20°C~+60°C





Transmission Performance for reference

Frequency IL-Max NEXT-Min PSNEXT-Min ELFEXT-Min RL-Min
(MHz) (dB/100m) (dB/100m) (dB/100m) (dB/100m) (dB)
1 2.6 41 41 39 12
4 5.6 32 32 27 12
10 9.7 26 26 19 12
16 13.1 23 23 15 10


Package Details

305meters or 1000ft pull box or wooden drum

Two boxes into a carton
