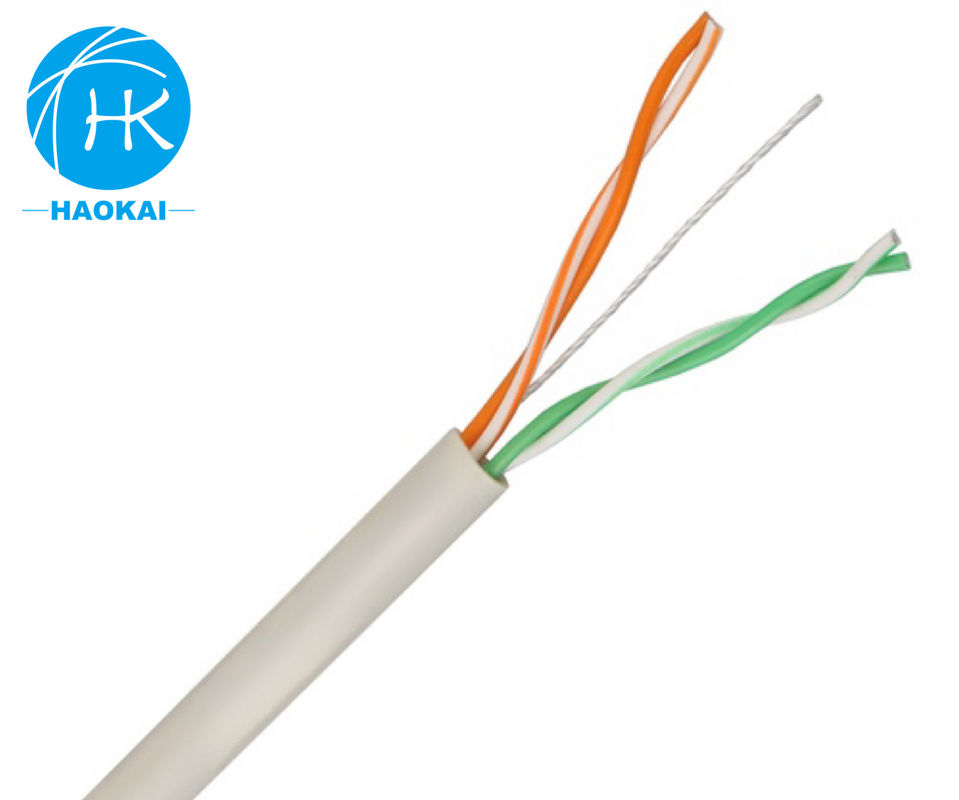

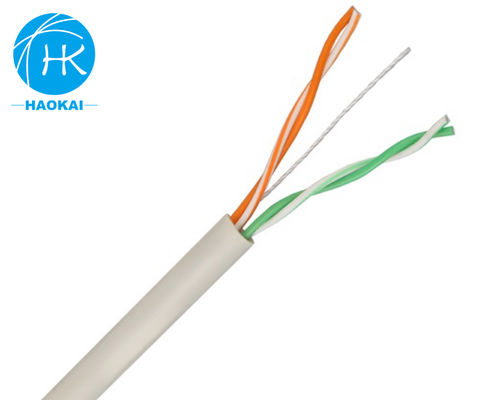

CCA Indoor LAN Cable Eco Friendly PVC Jacket 2pair UTP CAT3 Cable
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | CE,ROSH |
Model Number: | FFTP CAT7 cable |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000m |
---|---|
Price: | By negotiation |
Packaging Details: | BOX |
Delivery Time: | 7 work days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 100000m/1day |
Detail Information |
|||
Shielding Type: | Shielded (SFTP) | Colors: | Blue-White/Blue,Orange-White/Orange |
---|---|---|---|
Inner Jacket: | 7.4±0.3 Mm PE | Out Jacket: | 6.5±0.2 Mm LSZH |
Package: | 305M, 1000FT, Wooden Reel, Pallet | Application: | FTTH FTTB FTTX Network |
Material: | BC,CCA | ||
High Light: | CCA Indoor LAN Cable,Indoor LAN Cable 2pair,Indoor UTP CAT3 Cable |
Product Description
UTP CAT3 2pairs Indoor Lan Cable 2pair Utp Cat3 Cable Cat3 Cca Cat3 Cable Utp
Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
Appliacation
1. Exceeds requirements of ANSI/TIA-568-C. 2 Category 5/ Category 3 and ISO 11801 2nd Edition Class C channel standards.
2. Exceed requirements of ANSI/TIA-568-C. 2 Category 5/ Category 3 Component standards;
3. Descending length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
4. Color Availability: Additional cable colors available.
5. Patent products: CN200920124769.9.
Mechanical Characteristics
Cable under the minimum tension ≥ 400N
Conductor elongation: ≥ 15%
Jacket before Aging
Tensile strength ≥ 13.5Mpa
Elongation≥ 150%
Jacket after Aging
Tensile strength ≥ 12.5Mpa
Elongation≥ 125%
Electronic Characteristics
Impedance: 1-16MHz 100± 15(ohms).
Max. Mutual Capacitance: 6.6nF/100m
Max. Unbalanced DC resistance: 2.5%
Max. Differential phase delay: 45nF/100m
Permitted bend radius: 10 times diameter of the cable
Min. Dielectric Strength Between Conductors: 1.0kV/min
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S
Operating temperature: -20°C~+60°C
Transmission Performance for reference
Frequency | IL-Max | NEXT-Min | PSNEXT-Min | ELFEXT-Min | RL-Min |
(MHz) | (dB/100m) | (dB/100m) | (dB/100m) | (dB/100m) | (dB) |
1 | 2.6 | 41 | 41 | 39 | 12 |
4 | 5.6 | 32 | 32 | 27 | 12 |
10 | 9.7 | 26 | 26 | 19 | 12 |
16 | 13.1 | 23 | 23 | 15 | 10 |
Package Details
305meters or 1000ft pull box or wooden drum
Two boxes into a carton
