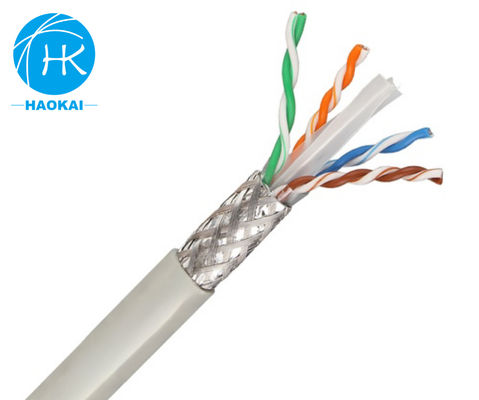

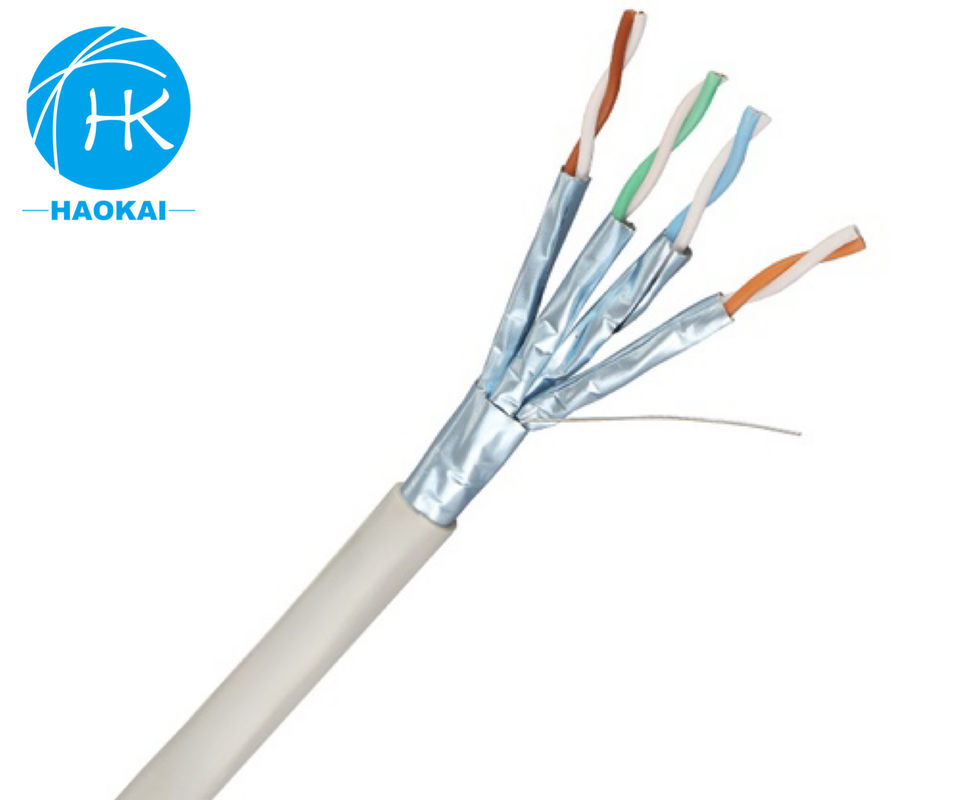

1000mhz 1000ft Sstp FFTP CAT7 Lan Cable Cat6a Internet Communication Cable 305m
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | CE,ROSH |
Model Number: | FFTP CAT7 cable |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000m |
---|---|
Price: | By negotiation |
Packaging Details: | BOX |
Delivery Time: | 7 work days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 100000m/1day |
Detail Information |
|||
Power: | CCA Wire | Material: | BC,CCA |
---|---|---|---|
Package: | 305M, 1000FT, Pull Box, Pallet | Cable Length: | 5ft/1.5m |
Jacket Material: | PVC | Drain Wire: | 0.80±0.005mm TC |
Shielding: | UTP (Unshielded Twisted Pair) | ||
High Light: | FFTP CAT7 Lan Cable,Internet CAT7 Lan Cable,CAT7 Communication Cable |
Product Description
FFTP CAT7 Sstp Cat7 1000mhz Cat7 Lan Cable F/Ftp Cat6a Internet Cable Communication Cable Cat7 Cable 1000ft Cat7 305m
Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Support 10-Gigabit Ethernet netword transmission requirements.
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 160pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-550MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -50~+70°C;
Permitted bend radius: Over 8 times diameter of the cable.
Transmission Performance for reference
Category | FFTP CAT7 | Jacket Physical Properties |
Before Aging Tensile Strength(Mpa)≥13.5
Elongation(%)≥150 |
||
Test Standard | ISO/IEC 11801,TIA/EIA 568B.2 IEC61156-5 | ||||
Conductor | Material | Solid Bare Copper | Aging Period(°C*hrs) 100°C*24h*7d | ||
Nom.O.D. | 0.585±0.003mm |
After Aging Tensile Strength(MPa) ≥12.5
Elongatio n(%) ≥125 |
|||
Insulation | Material | Skin-foam-Skin PE | |||
Nom.O.D. | 1.40±0.05mm | Cold bend(-20±2°C*4h) No visible cracks | |||
Shield |
Al Foil
100% |
Braid | No braid | Electrical Characteristics (20°C) | Impedance(Ω) 100±15 |
Jacket | Thickness | 0.65±0.05mm | Delay Shew(ns/100m) ≤45 | ||
External O.D. | 7.4±0.2mm | NVP 69% | |||
Material | LSZH | Capacitance(nf/100m) ≤5.6 | |||
Color | According to Requires | DC Resistance(Ω/100m) ≤9.5 | |||
Rip-cord | Yes | Drain Wire | Tinned copper | DC Resistance Unbalance(%) ≤2.0 |
Package Details
305meters or 1000ft pull box or wooden drum
Two boxes into a carton
