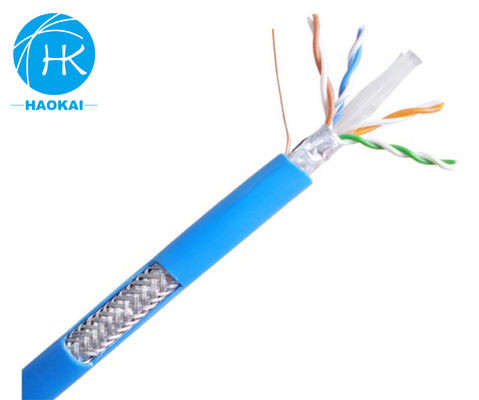

• 4pairs 23awg FTP CAT6 Outdoor Internet Cable Jelly Filled Or Gel Filled LAN Cable

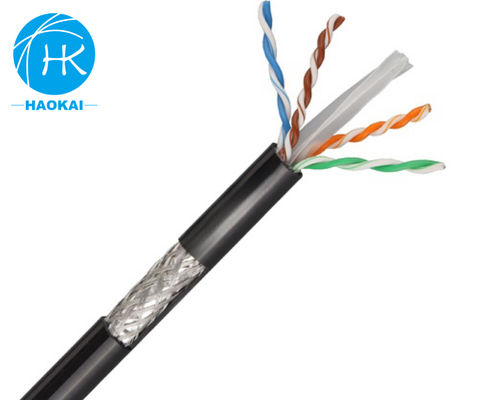

  • 4pairs 23awg FTP CAT6 Outdoor Internet Cable Jelly Filled Or Gel Filled LAN Cable

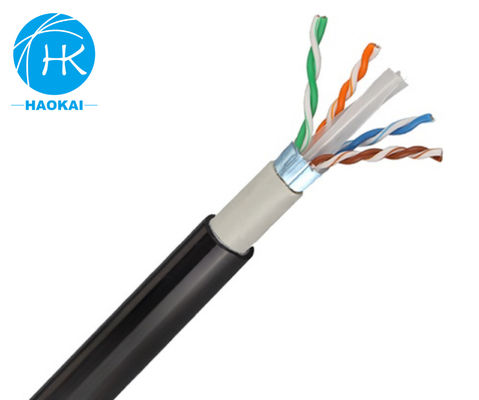

  • 4pairs 23awg FTP CAT6 Outdoor Internet Cable Jelly Filled Or Gel Filled LAN Cable

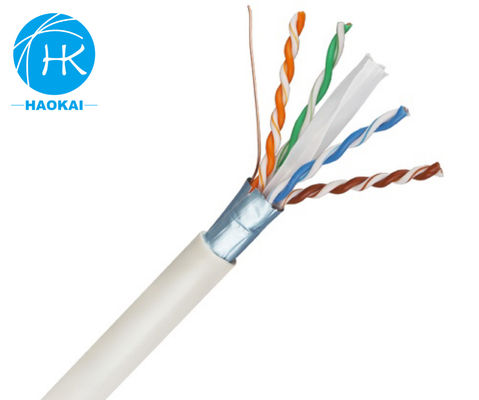

  • 4pairs 23awg FTP CAT6 Outdoor Internet Cable Jelly Filled Or Gel Filled LAN Cable

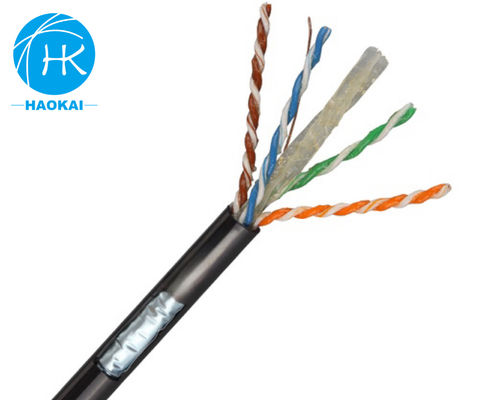

  • 4pairs 23awg FTP CAT6 Outdoor Internet Cable Jelly Filled Or Gel Filled LAN Cable
4pairs 23awg FTP CAT6 Outdoor Internet Cable Jelly Filled Or Gel Filled LAN Cable

4pairs 23awg FTP CAT6 Outdoor Internet Cable Jelly Filled Or Gel Filled LAN Cable

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: CE,ROSH
Model Number: FTP CAT6 cable

Payment & Shipping Terms:

Minimum Order Quantity: 10000m
Price: By negotiation
Packaging Details: BOX
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000m/1day
Get Best Price Contact Now

Detail Information

Application: FTTH FTTB FTTX Network Cable Color: Black
Transmission Speed: 10 Gbps Item: CAT6 Lan Cable
Connector: RJ45 Braiding: TC Or Al_Mg, 40% Coverage
Drain Wire: 0.40±0.005mm TC Out Jacket: UV-PE , PVC , LSZH
Shielding Type: Unshielded (UTP)
High Light:

23awg Outdoor Internet Cable

,

Gel Filled LAN Cable

,

FTP CAT6 Jelly Filled Cable

Product Description

FTP CAT6 Outdoor 4pairs 23awg Lan Cable Jelly Filled Ftp Cat6 Jelly Filled Or Gel Filled Ftp Cat6 Jelly Filled Lan Cable

Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.



Physical Electrical Characteristics

Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Support 10-Gigabit Ethernet netword transmission requirements.


Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 160pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-550MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -50~+70°C;
Permitted bend radius: Over 8 times diameter of the cable.



Transmission Performance for reference

Frequency ATT(20°C) RL NEXT PSNEXT ACR-F PS ACR-F PS ANEXT PS AACR-F
(MHz) ≤dB ≥dB ≥dB ≥dB ≥dB ≥dB ≥dB ≥dB
1 2.1 20 74.3 72.3 67.8 64.8 67 67
4 3.8 23 65.3 63.3 55.8 52.8 67 66.2
10 5.9 25 59.3 57.3 47.8 44.8 67 58.2
16 7.5 25 56.2 54.2 43.7 40.7 67 54.1
20 8.4 25 54.8 52.8 41.8 38.8 67 52.2
31.25 10.5 23.6 51.9 49.9 37.9 34.9 67 48.3
62.5 15 21.5 47.7 45.4 31.9 28.9 65.6 42.3
100 19.1 20.1 44.3 42.3 27.8 24.8 62.5 38.2
200 27.6 18 39.8 37.8 21.8 18.8 58 32.2
250 31.1 17.3 38.3 36.3 19.8 16.8 56.5 30.2
300 34.3 16.8 37.1 35.1 18.3 15.3 55.3 28.7
500 45.3 15.2 33.8 31.8 13.8 10.8 52 24.2
550 51.2 14.5 35.1 29.5 10.8 9.6 48 20.2


Package Details

305meters or 1000ft pull box or wooden drum

Two boxes into a carton
