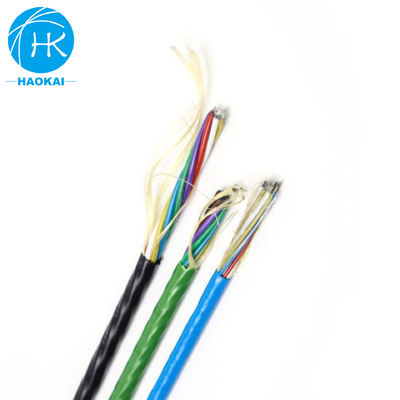

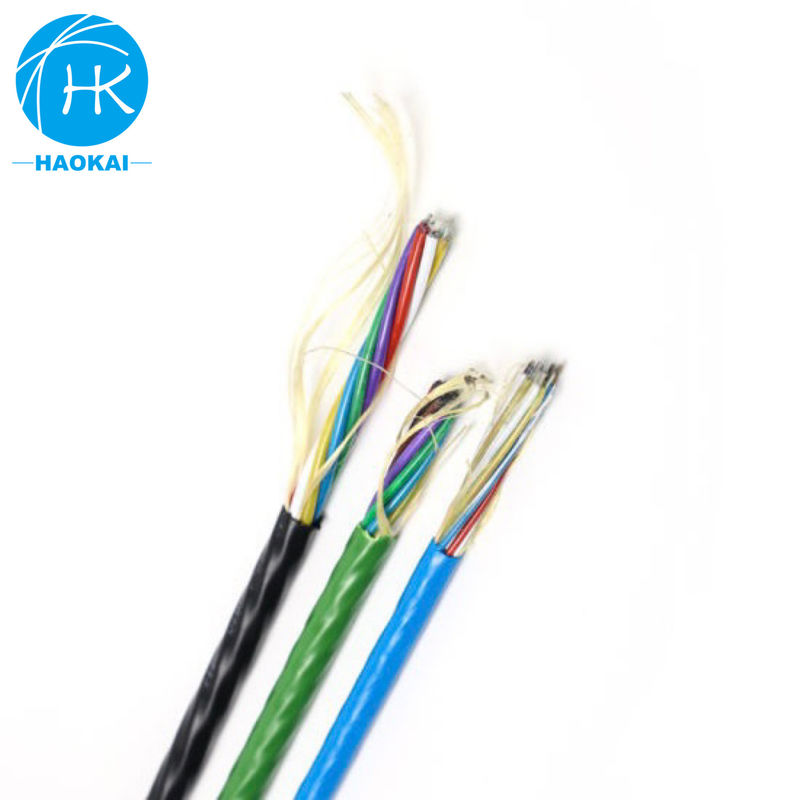

Gcyfty Gcyfy Air Blown Fiber Cable 12core 24core 48core 72core 96core 144core
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | HAOKAI |
| Certification: | ROHS/ISO/UL/SGS |
| Model Number: | Air Blown cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000m |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Wooden/Pellet |
| Delivery Time: | 1-5work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000m/day |
|
Detail Information |
|||
| Outer Diameter: | 5-20mm | Tensile Strength: | 100-300N |
|---|---|---|---|
| Installation Method: | Air Blown | Fiber Count: | 12-288 |
| Cable Type: | Fiber Optic | Application: | Outdoor/Indoor |
| Bend Radius: | 10-20 Times Of Cable Diameter | Temperature Range: | -40°C To +70°C |
| Fiber Type: | Single-mode/Multimode | Crush Resistance: | 1000-3000N/100mm |
| Jacket Material: | PE/LSZH | ||
| High Light: | Gcyfy Air Blown Fiber Cable,Air Blown Fiber Cable 12core,72core Air Blown Fiber Microduct |
||
Product Description
12core 24core 48core 72core 96core 144core Air Blown Cable Gcyfty Gcyfy Air Blown Fiber Cable
Company Certifications
Product Descripition
Air blowing fiber, also known as jet fiber, is an efficient way to install fiber optic cable and facilitates the future expansion of fiber optic networks. The structure of this cable is put 250µm single-mode or multi-mode optical fiber into a loose tube, the loose tube is made of high modulus material, which is filled with non-toxic and harmless waterproof compounds. The FRP strength member is put in the central tube to strengthen the cable. Outside of the loose tube is with Ripcord and polyethylene (HDPE) sheath.
Product application
● Air blowing installation.
● Underground networks.
Product characteristics
● The unique second coating and stranding technology provide the fibers with enough space and bending
- ● Endurance, which ensure good optical property of the fibers in the cable
- ● Accurate process control ensures good mechanical and temperature performance
- ● High quality raw material guarantees the long service life of cable
- Cable Parameters
