Air Blowing Fiber Optic Cable Underground Installation Micro Duct

Air Blowing Fiber Optic Cable Underground Installation Micro Duct

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROHS/ISO/UL/SGS
Model Number: Air Blown cable

Payment & Shipping Terms:

Minimum Order Quantity: 10000m
Price: By negotiation
Packaging Details: Wooden/Pellet
Delivery Time: 1-5work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000m/day
Get Best Price Contact Now

Detail Information

Tensile Strength: 1000N Fiber Count: 12
Cable Length: 1000m Jacket Material: LSZH
Fiber Attenuation: ≤0.4dB/km Cable Color: Black
Installation Method: Blowing Fiber Type: Single-mode
Operating Temperature: -40°C To +70°C Crush Resistance: 1000N/100mm
Cable Type: Fiber Optic
High Light:

Air Blowing Fiber Optic Cable

,

Microduct Fiber Optic Cable

,

Air Blowing Micro Duct

Product Description

Company Certifications
Air Blowing Fiber Optic Cable Underground Installation Micro Duct 0


Product Descripition

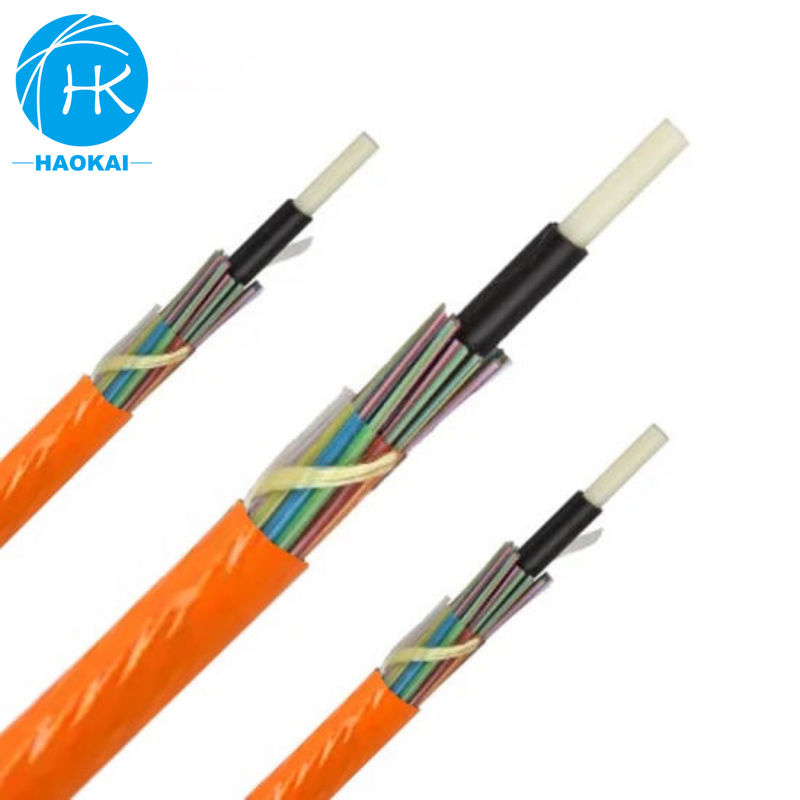

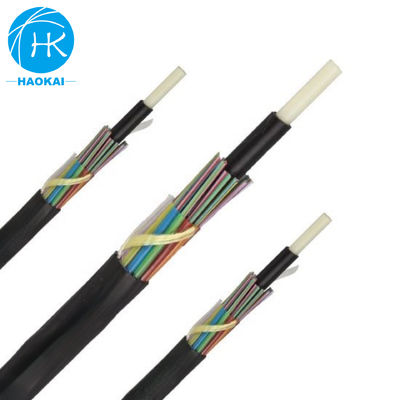

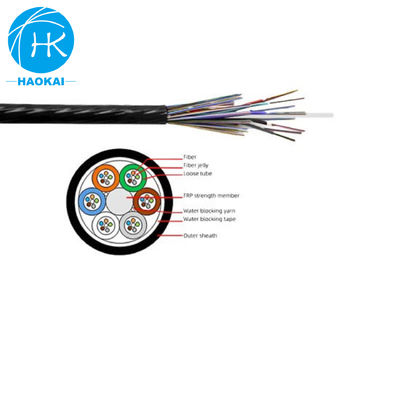

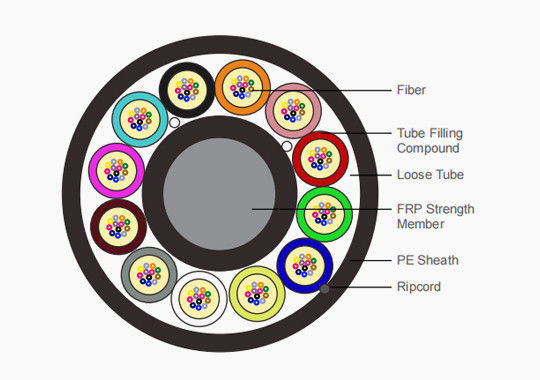

Air blowing fiber, also known as jet fiber, is an efficient way to install fiber optic cable and facilitates the future expansion of fiber optic networks. The structure of this cable is put 250µm single-mode or multi-mode optical fiber into a loose tube, the loose tube is made of high modulus material, which is filled with non-toxic and harmless waterproof compounds. The FRP strength member is put in the central tube to strengthen the cable. Outside of the loose tube is with Ripcord and polyethylene (HDPE) sheath.



Product application
● Air blowing installation.
● Underground networks.




Product characteristics

● The unique second coating and stranding technology provide the fibers with enough space and bending

  • ● Endurance, which ensure good optical property of the fibers in the cable
  • ● Accurate process control ensures good mechanical and temperature performance
  • ● High quality raw material guarantees the long service life of cable
  •
  • Cable Parameters
  • Air Blowing Fiber Optic Cable Underground Installation Micro Duct 1
