Outdoor Singlemode Micro Air Blown Cable Stranded Loose Tube Air Blown Fiber Cable
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | HAOKAI |
| Certification: | ROHS/ISO/UL/SGS |
| Model Number: | Air Blown cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000m |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Wooden/Pellet |
| Delivery Time: | 1-5work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000m/day |
|
Detail Information |
|||
| Installation Environment: | Indoor/Outdoor | Fiber Type: | Single-mode |
|---|---|---|---|
| Installation Method: | Air Blown | Jacket Material: | LSZH |
| Cable Diameter: | 5mm | Cable Type: | Fiber Optic |
| Fiber Count: | 12 | Tensile Strength: | 1000N |
| Cable Color: | Black | Crush Resistance: | 1000N/100mm |
| Operating Temperature: | -40°C To +70°C | ||
| High Light: | Micro Air Blown Cable,Stranded Loose Tube Air Blown Cable,Singlemode Air Blown Fiber Cable |
||
Product Description
Outdoor Singlemode Duct Micro Air Blown Cable Gcyfty Stranded Loose Tube Air Blown Fiber Cable
Company Certifications
Product Descripition

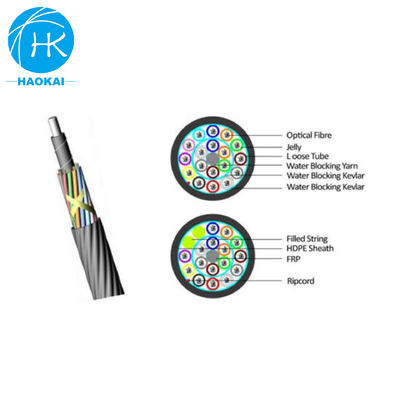

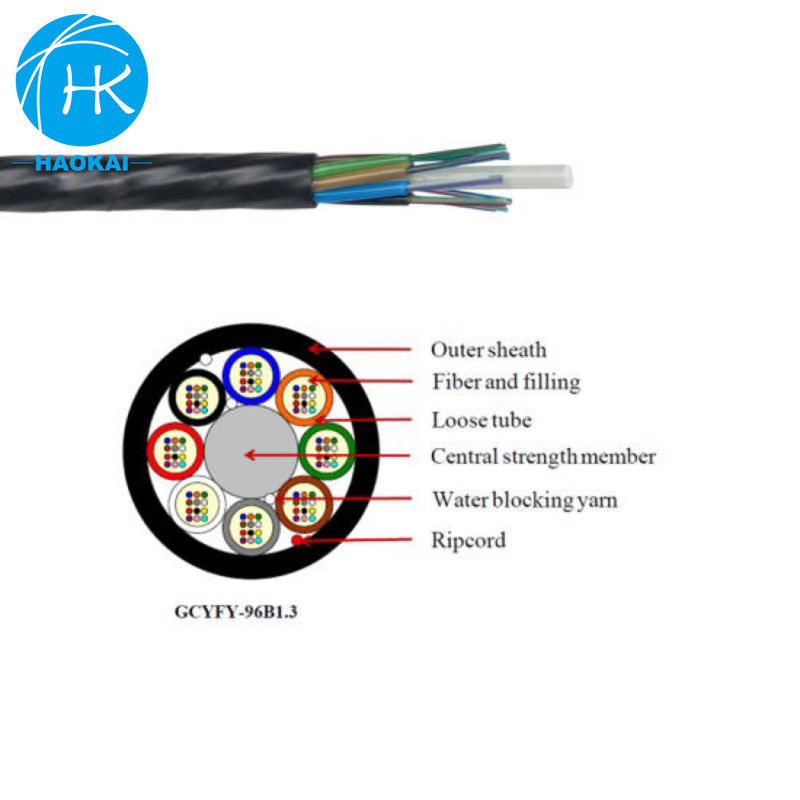

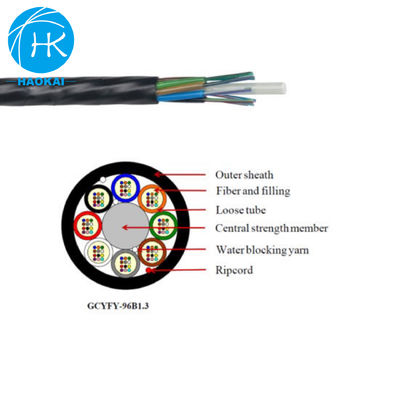

Air blowing fiber, also known as jet fiber, is an efficient way to install fiber optic cable and facilitates the future expansion of fiber optic networks. The structure of this cable is put 250µm single-mode or multi-mode optical fiber into a loose tube, the loose tube is made of high modulus material, which is filled with non-toxic and harmless waterproof compounds. The FRP strength member is put in the central tube to strengthen the cable. Outside of the loose tube is with Ripcord and polyethylene (HDPE) sheath.
Product application
● Air blowing installation.
● Underground networks.
Product characteristics
● The unique second coating and stranding technology provide the fibers with enough space and bending
- ● Endurance, which ensure good optical property of the fibers in the cable
- ● Accurate process control ensures good mechanical and temperature performance
- ● High quality raw material guarantees the long service life of cable
- Cable Parameters
