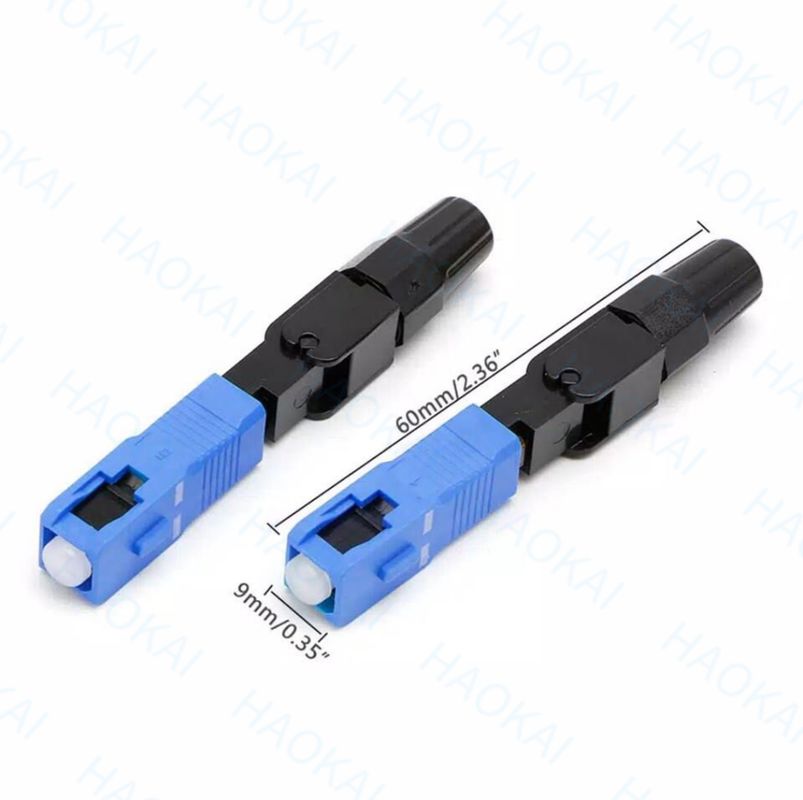

FTTH Drop Cable Optical Fiber Fast Connector Fiber SC UPC Fast Connector

FTTH Drop Cable Optical Fiber Fast Connector Fiber SC UPC Fast Connector

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROSH
Model Number: SC FAST CONNECTOR

Payment & Shipping Terms:

Minimum Order Quantity: 10000pcs
Price: By negotiation
Packaging Details: BOX
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/day
Get Best Price Contact Now

Detail Information

High Light:

FTTH Fiber Fast Connector

,

Optical Fiber Fast Connector

,

Fiber SC UPC Fast Connector

Product Description

Ftth Sc Upc Optical Fiber Fast Connector Fiber Sc Upc Fast Connector



Optical Characteristics

Category Specification   Remarks
Applicable for Drop cable.Indoor cable
Fiber mode Single mode or Multi mode
Operation time S About 50(no fiber cut)
Insertion Loss dB ≤0.5
Insertion Loss Typical value dB 0.3
Return Loss dB ≥50
Fastening strength of naked fiber N ≥5
Tensile strength N ≥50
Reusable Time ≥10 times
Operating Temperature -40~+85
On-line tensile strength(20N) dB ΔIL≤0.3
Mechanical durability(500 times) dB ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times) dB ΔIL≤0.3



Environmental performance requirements

Category Specification
  Condition IL Variation RL Variation Appearance
High TEMP 110℃,200H ≤0.5 ≤5

No mechanical damage,



like deformation,



cracking and untight

Low TEMP -40℃,200H ≤0.5 ≤5
TEMP Cycling -40~85℃,3.5H/Cle,100C ≤0.5 ≤5
HAST 110℃,90%RH,200H ≤0.5 ≤5
Immersion 25℃,200H ≤0.5 ≤5
Salt Mist 5% Nacl,6.5 ≤0.5 ≤5
