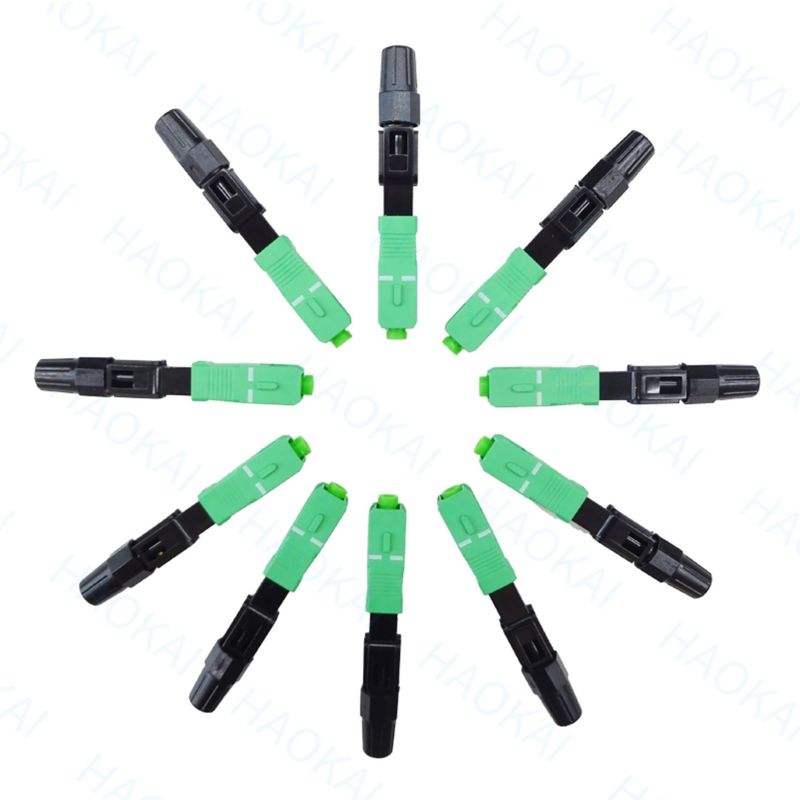

• Fiber Optic Drop Cable Fast Connector Single Mode FTTH SC UPC Quick Connector
Fiber Optic Drop Cable Fast Connector Single Mode FTTH SC UPC Quick Connector

Fiber Optic Drop Cable Fast Connector Single Mode FTTH SC UPC Quick Connector

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROSH
Model Number: SC FAST CONNECTOR

Payment & Shipping Terms:

Minimum Order Quantity: 10000pcs
Price: By negotiation
Packaging Details: BOX
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/day
Get Best Price Contact Now

Detail Information

Ferrule Material: Ceramic Fiber Color: Green
Tension Test: ≥100N Fiber Count: Simplex/Duplex
Type: The Fast Connector Adapter Type: SC
High Light:

Fiber Optic Drop Cable Fast Connector

,

Single Mode FTTH Fast Connector

,

SC UPC Quick Connector

Product Description

fiber optic drop fast connector assembly 0.3dB 50mm 60mm Singlemode quick connector SC UPC Fiber optical ftth quick connector



Optical Characteristics

Category Specification   Remarks
Applicable for Drop cable.Indoor cable
Fiber mode Single mode or Multi mode
Operation time S About 50(no fiber cut)
Insertion Loss dB ≤0.5
Insertion Loss Typical value dB 0.3
Return Loss dB ≥50
Fastening strength of naked fiber N ≥5
Tensile strength N ≥50
Reusable Time ≥10 times
Operating Temperature -40~+85
On-line tensile strength(20N) dB ΔIL≤0.3
Mechanical durability(500 times) dB ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times) dB ΔIL≤0.3



Environmental performance requirements

Category Specification
  Condition IL Variation RL Variation Appearance
High TEMP 110℃,200H ≤0.5 ≤5

No mechanical damage,



like deformation,



cracking and untight

Low TEMP -40℃,200H ≤0.5 ≤5
TEMP Cycling -40~85℃,3.5H/Cle,100C ≤0.5 ≤5
HAST 110℃,90%RH,200H ≤0.5 ≤5
Immersion 25℃,200H ≤0.5 ≤5
Salt Mist 5% Nacl,6.5 ≤0.5 ≤5
