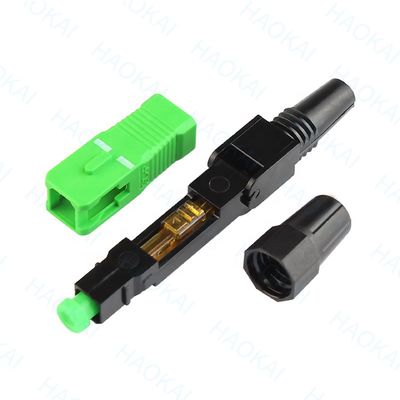

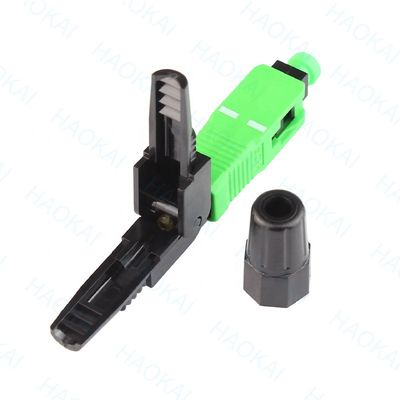

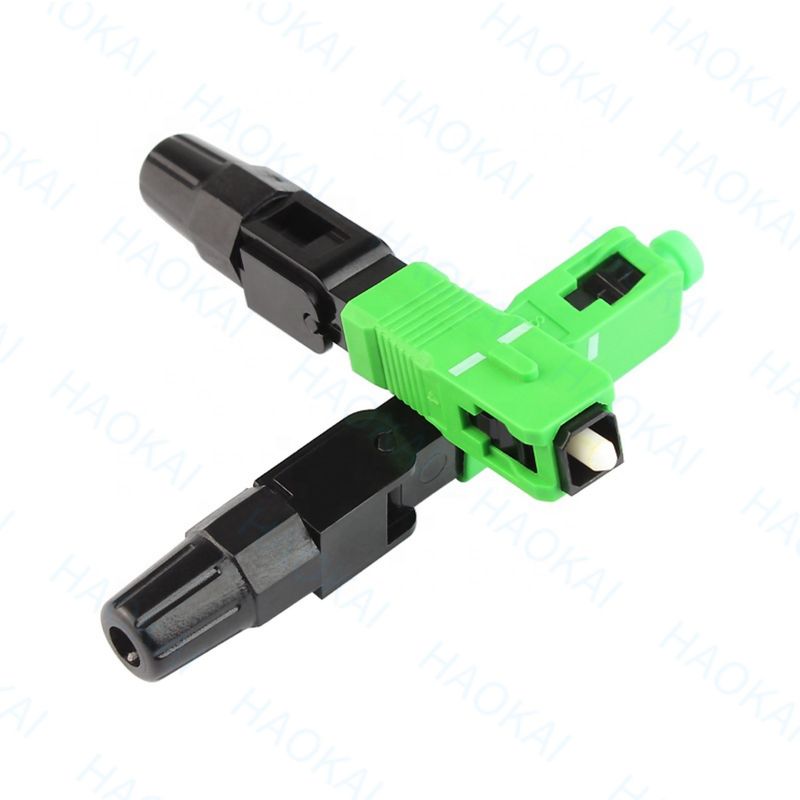

SC APC Fiber Optic Fast Connector 55mm Length Fiber Optic Quick Connector
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROSH |
Model Number: | SC FAST CONNECTOR |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000pcs |
---|---|
Price: | By negotiation |
Packaging Details: | BOX |
Delivery Time: | 7 work days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 100000pcs/day |
Detail Information |
|||
Boot Color: | Blue, Green | Adapter Type: | SC |
---|---|---|---|
Insertion Loss: | <0.3dB | Dimension: | 50mm |
Connector: | SC/APC, FC/UPC | Length: | 55MM |
Usage: | To Open The FTTH Fiber Terminal End | ||
High Light: | SC APC Fiber Optic Fast Connector,SC APC Fiber Optic Quick Connector,55mm SC APC Fast Connector |
Product Description
SC APC Fiber Optic Fast Connector Sc Fast Connector Sc Apc Optical Fast Connector
Optical Characteristics
Category | Specification | Remarks | |
Applicable for | Drop cable.Indoor cable | ||
Fiber mode | Single mode or Multi mode | ||
Operation time | S | About 50(no fiber cut) | |
Insertion Loss | dB | ≤0.5 | |
Insertion Loss Typical value | dB | 0.3 | |
Return Loss | dB | ≥50 | |
Fastening strength of naked fiber | N | ≥5 | |
Tensile strength | N | ≥50 | |
Reusable | Time | ≥10 times | |
Operating Temperature | ℃ | -40~+85 | |
On-line tensile strength(20N) | dB | ΔIL≤0.3 | |
Mechanical durability(500 times) | dB | ΔIL≤0.3 | |
Drop-off test(drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤0.3 |
Environmental performance requirements
Category | Specification | |||
Condition | IL Variation | RL Variation | Appearance | |
High TEMP | 110℃,200H | ≤0.5 | ≤5 |
No mechanical damage,
like deformation,
cracking and untight |
Low TEMP | -40℃,200H | ≤0.5 | ≤5 | |
TEMP Cycling | -40~85℃,3.5H/Cle,100C | ≤0.5 | ≤5 | |
HAST | 110℃,90%RH,200H | ≤0.5 | ≤5 | |
Immersion | 25℃,200H | ≤0.5 | ≤5 | |
Salt Mist | 5% Nacl,6.5 | ≤0.5 | ≤5 |
