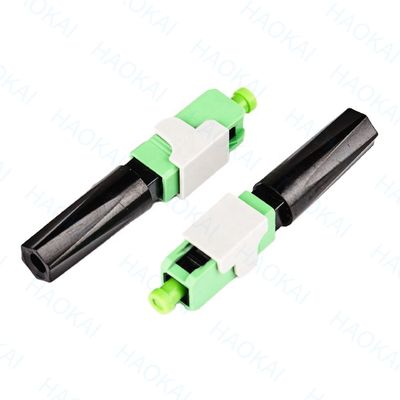

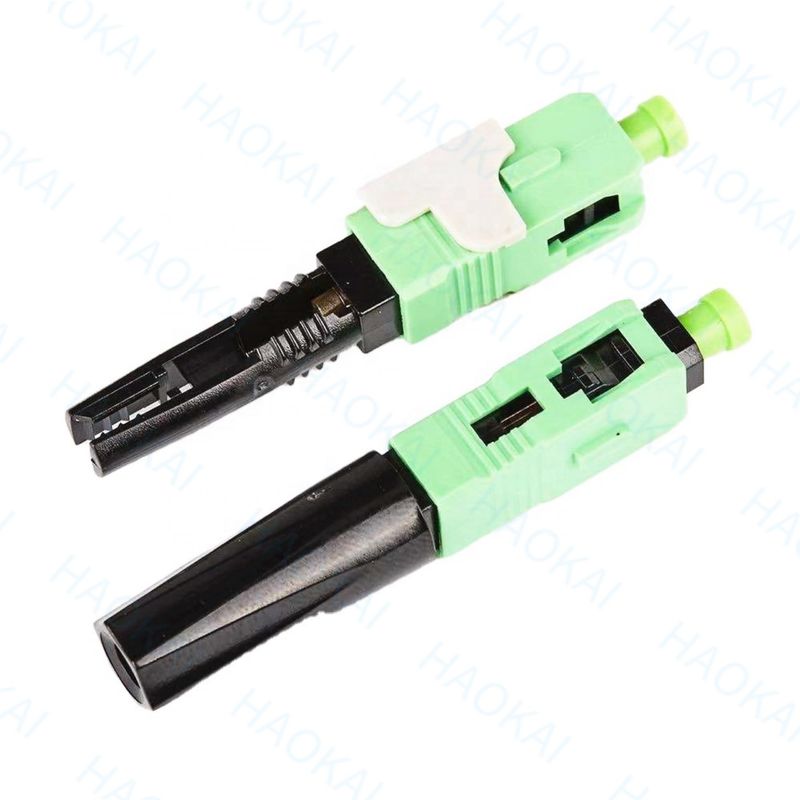

0.3db 60mm SC APC Fast Connector SM FTTH Fiber Optic Quick Connector

0.3db 60mm SC APC Fast Connector SM FTTH Fiber Optic Quick Connector

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROSH
Model Number: SC FAST CONNECTOR

Payment & Shipping Terms:

Minimum Order Quantity: 10000pcs
Price: By negotiation
Packaging Details: BOX
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/day
Get Best Price Contact Now

Detail Information

Connectors: SC APC/UPC Applications: Telecommunication
Tensile Strength: ≥10N Length: 50mm / 60mm
Durability: ≥1000 Times Keywords: Fast Connector LC/APC
Return Loss: >50dB
High Light:

60mm SC APC Fast Connector

,

SM FTTH Fast Connector

,

SM Fiber Optic Quick Connector

Product Description

Sm Ftth 0.3db 60mm Sc Apc Fast Connector Fiber Optic Quick Connector Rapido De Fibra Optica Conector



Fast connector are factory pre-polished field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber. Fast connectors are compatible with 250um and 900um optical fiber as well as 900um, 2mm, 3mm and drop cable cordage.



Optical Characteristics

Category Specification
Applicable for Drop cable.Indoor cable
Fiber mode Single mode or Multi mode
Fiber 0.9mm(FTTH Drop Cable)
Cable Diameter Range 2.0mm, 3.0mm, 2.0*3.0mm
Insertion Loss(dB) Average≤0.2dB, Max≤0.3dB
Return Loss(dB) UPC:≥50dB, APC:≥55dB
One-time Assembly Yield ≥97%
Assembly Repeatability ≥5times
Average Assembly Time ≤5minutes
Life Time ≥30years
Tensile Strength ≥30N (2.0*3.0 drop cable)
Operating Temperature -40~85 degree



APPLICATIONS

Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
