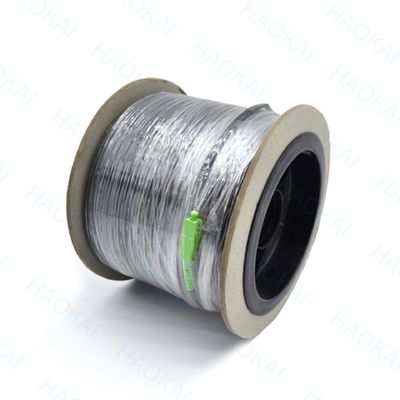

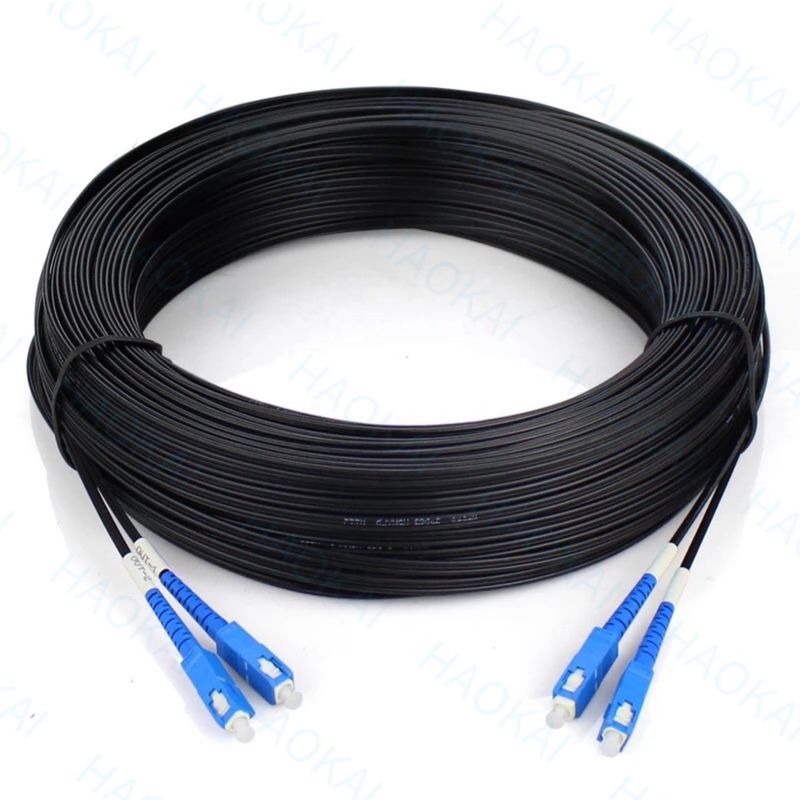

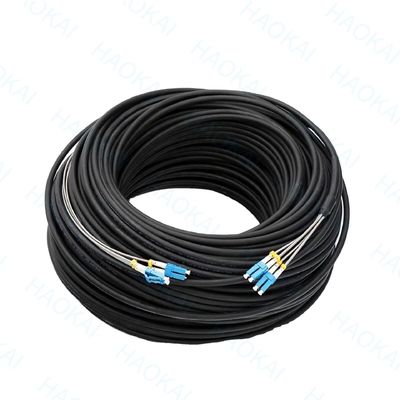

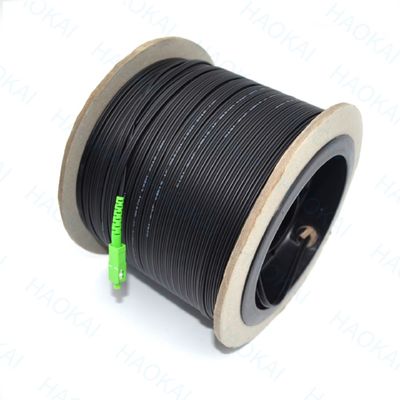

Outdoor FTTH Patch Cord 2core Steel Wire Drop Fiber Optical Cable 2SC-2SC Connector
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROHS/ISO/UL/SGS |
Model Number: | drop fiber patch cord |
Payment & Shipping Terms:
Minimum Order Quantity: | 100pcs |
---|---|
Price: | By negotiation |
Packaging Details: | Wooden/Pellet |
Delivery Time: | 1-5work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 5000m/day |
Detail Information |
|||
Type Of Fiber: | 657A1 657A2 G652D | Return Loss: | >60dB |
---|---|---|---|
Connector Type: | SC/APC | Storage Temperature: | -40℃ To +85℃ |
Mode No: | SC/APC SC/UPC | Fiber Model: | G657A G652D |
Type: | Single Model | Insertion Loss: | <0.3dB |
High Light: | Outdoor FTTH Patch Cord,FTTH Patch Cord 2core,Steel Wire Drop Fiber Optical Cable |
Product Description
FTTH Outdoor 2core Branch Drop Fiber Optical Cable Patch Cord 2SC-2SC Connector With Steel Wire
Company Certifications
Product Descripition
1. Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length .
2.The patch cord are factory terminated, assembled, tested and inspected prior to shipment.
3.All patch cords are manufactured using OFNR riser grade cable, LSZH, plenum, and premium customized specs available upon request, and 100% factory tested to ensure the performance to meet TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All assemblies are tested to meet Telcordia GR326-CORE.
Product application
● Telecommunication networks.
● Local area networks; CATV.
● Active device termination.
● Data center system networks.
Product characteristics
● Lower Insertion Loss.
● High Return Loss.
● Excellent Repeatability ,exchangeability, wearability and stability.
● Environmentally Stable.
Cable Parameters
Connector type: | SC/ST/FC/LC | |||
Default length: | 1.5M or Customized | |||
Fiber type: | Single mode 9/125 | Multimode 62.5/125 50/125 | ||
Simplex or duplex: | Simplex/Duplex | |||
Cable Diameter: | 2.0mm*3.0 or 2.0mm*5.0mm | |||
Operating wavelength: | 1310mm/1550mm | |||
Operating temperature: | -40℃+80℃ | |||
Tensile strength: | ≥200N | |||
Insert and pull frequency: | Single mode | Multimode | ||
Model: | ||||
Polishing grade: | PC | UPC | APC | PC |
Insertion loss(dB): | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss(dB): | ≥45 | ≥50 | ≥60 | ≥35 |
