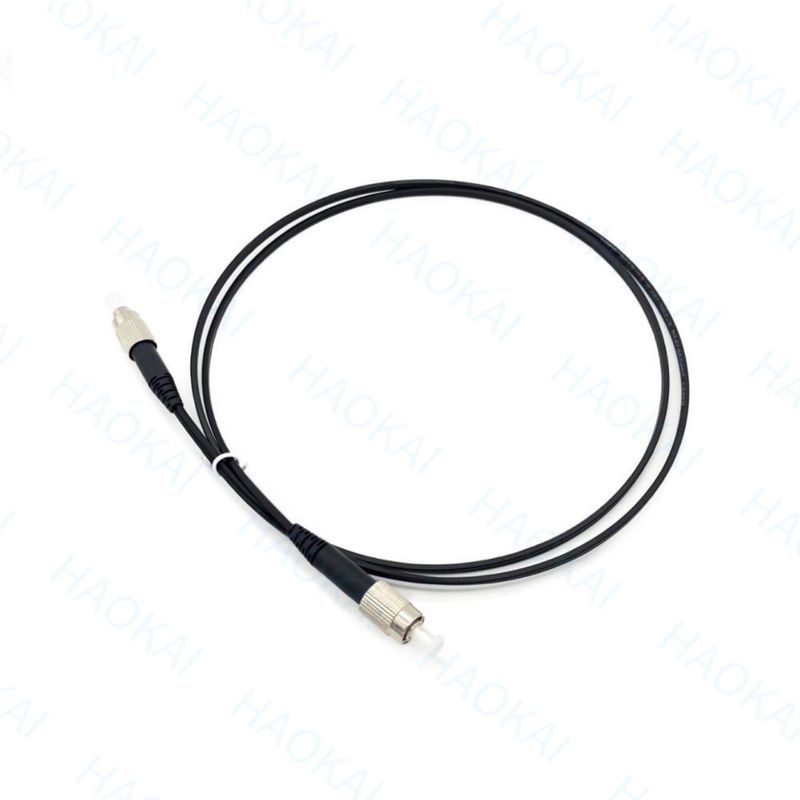

Telecommunication Customized Fiber Patch Cables 1M 5M FC-FC Patch Cord 100m
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROHS/ISO/UL/SGS |
Model Number: | drop fiber patch cord |
Payment & Shipping Terms:
Minimum Order Quantity: | 100pcs |
---|---|
Price: | By negotiation |
Packaging Details: | Wooden/Pellet |
Delivery Time: | 1-5work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 5000m/day |
Detail Information |
|||
Cable Length: | 1/2/3m | Allowed Tensile Strength: | 1000N<10000N |
---|---|---|---|
Storage Temperature: | -40℃ To +85℃ | Mode No: | SC/APC SC/UPC |
Sheath Material: | LSZH PVC | Color: | Black, White Or Custom |
High Light: | Customized Fiber Patch Cables,FC-FC Patch Cord 100m,Fiber Patch Cables 1M |
Product Description
Fiber Patch Cables Customized 1m 5m FC-FC Patch Cord 100m
Company Certifications
Product Descripition
1. Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length .
2.The patch cord are factory terminated, assembled, tested and inspected prior to shipment.
3.All patch cords are manufactured using OFNR riser grade cable, LSZH, plenum, and premium customized specs available upon request, and 100% factory tested to ensure the performance to meet TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All assemblies are tested to meet Telcordia GR326-CORE.
Product application
● Telecommunication networks.
● Local area networks; CATV.
● Active device termination.
● Data center system networks.
Product characteristics
● Lower Insertion Loss.
● High Return Loss.
● Excellent Repeatability ,exchangeability, wearability and stability.
● Environmentally Stable.
Cable Parameters
Connector type: | SC/ST/FC/LC | |||
Default length: | 1.5M or Customized | |||
Fiber type: | Single mode 9/125 | Multimode 62.5/125 50/125 | ||
Simplex or duplex: | Simplex/Duplex | |||
Cable Diameter: | 2.0mm*3.0 or 2.0mm*5.0mm | |||
Operating wavelength: | 1310mm/1550mm | |||
Operating temperature: | -40℃+80℃ | |||
Tensile strength: | ≥200N | |||
Insert and pull frequency: | Single mode | Multimode | ||
Model: | ||||
Polishing grade: | PC | UPC | APC | PC |
Insertion loss(dB): | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss(dB): | ≥45 | ≥50 | ≥60 | ≥35 |
