SC UPC APC LC Connector Optical Fiber Splitter Mini Steel Tube Fiber Optic Splitter Box
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | HAOKAI |
| Certification: | ROHS/ISO/UL/SGS |
| Model Number: | PLC splitter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Wooden/Pellet |
| Delivery Time: | 1-5work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000pcs/day |
|
Detail Information |
|||
| Working Wavelengths: | Wide Range 1260 ~ 1650 Nm | Polarization Dependent Loss: | <0.2dB |
|---|---|---|---|
| Insertion Loss: | <0.2dB | Return Loss: | >55dB |
| End Face Polishing: | UPC | Storage Temperature: | - 45~+85℃ |
| Input Fiber: | 0.9mm Tight Buffer | Adapter Type: | SC SX |
| Configuration: | 1x32 | Fiber Mode: | SM G657A1/G652D/G657A2 |
| Name Name: | 1x4 Plug-In Fiber PLC Splitter | Production Name: | Bare Plc Splitter |
| Highlight: | SC Connector Optical Fiber Splitter,LC Connector Optical Fiber Splitter,Steel Tube Fiber Optic Splitter Box |
||
Product Description

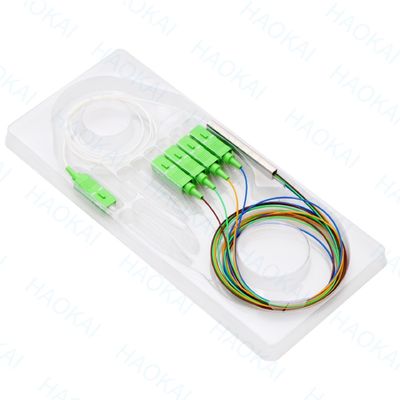

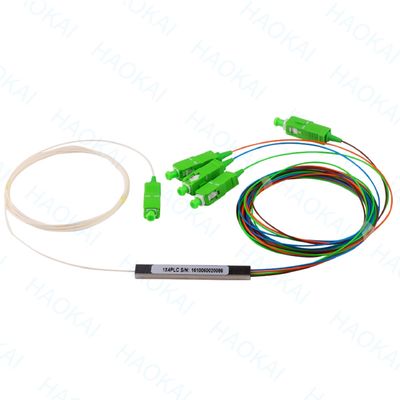

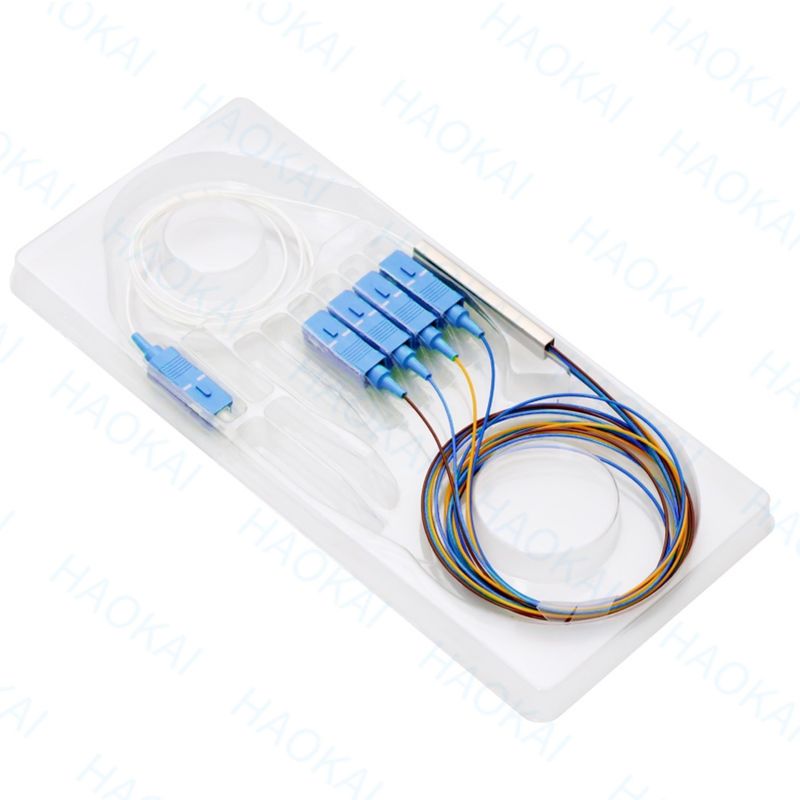

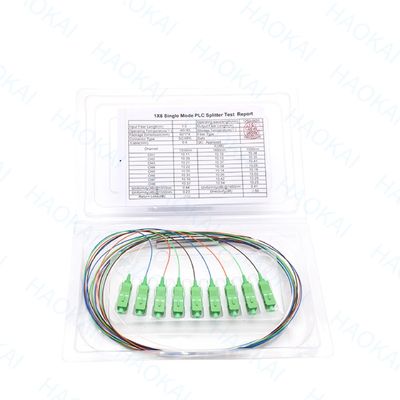

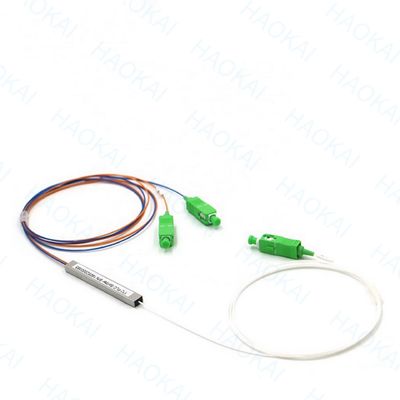

Optical Fiber Splitter Package With SC UPC APC LC Connector Mini Steel Tube Fiber Optic Splitter Box
Company Certifications
Product Descripition
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.
Including 1x2,1x4,1x8,1x16,1x32,1x64, and 2x2,2X4,2X8,2X16,2X32,2X64 type.
Product application
● FTTx Systems.
● Digital, hybrid and AM-Video systems.
● LAN,WAN and Metro Networks.
● CATV systems.
Product characteristics
● Low Insertion loss and Low PDL.
● Uniform power splitting.
● Excellent environmental stability.
● Compact size and various package.
Cable Parameters
