FTTx Systems SC UPC Fiber Optic PLC Splitter 1x2 Mini Steel Tube

FTTx Systems SC UPC Fiber Optic PLC Splitter 1x2 Mini Steel Tube

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROHS/ISO/UL/SGS
Model Number: PLC splitter

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: By negotiation
Packaging Details: Wooden/Pellet
Delivery Time: 1-5work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000pcs/day
Get Best Price Contact Now

Detail Information

Fiber Type: G657A1 Channel No: 1x4
End Face Polishing: APC Main Material: PC Plastic
Cable Sheath: LSZH/LSOH Cable: 0.9/2.0/3.0 Mm
Pigtail Length: 0.5M, 1.0M, 1.5M Output Cable: OD0.9mm Four Colors
Input Cable: 0.9mm White Or Customized Insertion Loss: <=0.3dB
Plc Loaded: Mini Steel Tube
High Light:

1x2 Fiber Optic Splitter

,

SC UPC Fiber Optic PLC Splitter

,

FTTx Systems Fiber Optic PLC Splitter

Product Description

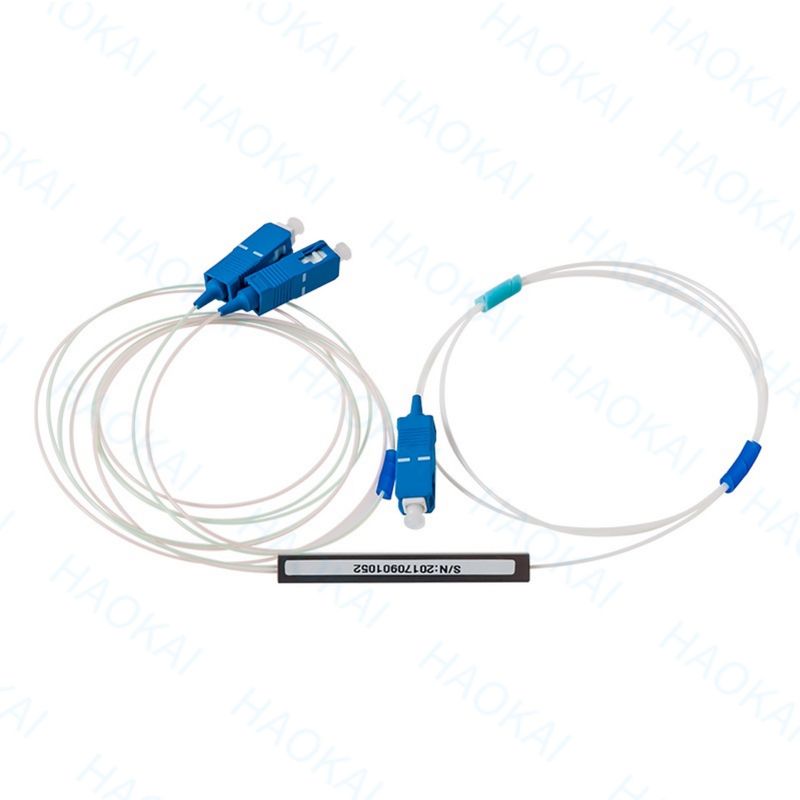

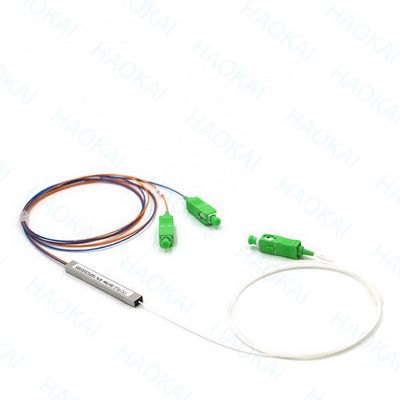

Mini Steel Tube 1x2 SC UPC Fiber Optic PLC Splitter



Company Certifications
FTTx Systems SC UPC Fiber Optic PLC Splitter 1x2 Mini Steel Tube 0


Product Descripition

Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.

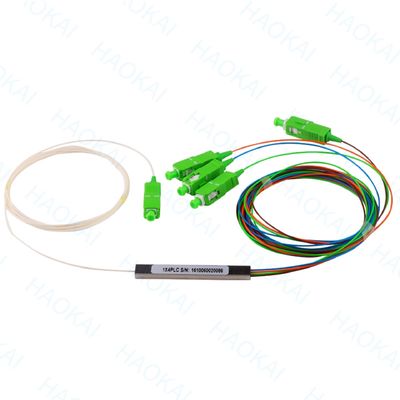

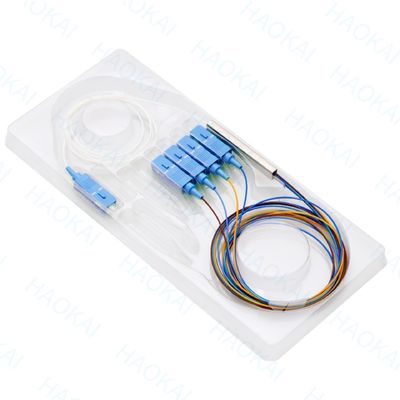

Including 1x2,1x4,1x8,1x16,1x32,1x64, and 2x2,2X4,2X8,2X16,2X32,2X64 type.



Product application
● FTTx Systems.
Digital, hybrid and AM-Video systems.
● LAN,WAN and Metro Networks.

CATV systems.


Product characteristics

Low Insertion loss and Low PDL.
Uniform power splitting.
● Excellent environmental stability.
Compact size and various package.






Cable Parameters

FTTx Systems SC UPC Fiber Optic PLC Splitter 1x2 Mini Steel Tube 1
