1x32 PLC Fiber Optic Splitter Fiber Optic Coupler Splitter With SC APC Connetcor
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROHS/ISO/UL/SGS |
Model Number: | PLC splitter |
Payment & Shipping Terms:
Minimum Order Quantity: | 100pcs |
---|---|
Price: | By negotiation |
Packaging Details: | Wooden/Pellet |
Delivery Time: | 1-5work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 5000pcs/day |
Detail Information |
|||
Dimension: | 130x100x25 Mm | Cable Length: | 1 Meter. OEM |
---|---|---|---|
Insertion Loss: | <0.2dB (1x2, 1x4), <0.3dB (1x8, 1x16), <0.5dB (1x32, 1x64) | Splitter Inside: | ABS Module |
Package: | Cassette Type PLC Splitter | Cable: | 0.9/2.0/3.0 Mm |
Input Tube Diameter: | 0.9mm, 2.0mm, 3.0mm | Fiber Connector: | SC/UPC/APC |
Abs Dimension: | 100x80x10 Mm | ||
High Light: | 1x32 PLC Fiber Optic Splitter,SC APC Connetcor Plc Splitter,PLC Fiber Optic Coupler Splitter |
Product Description

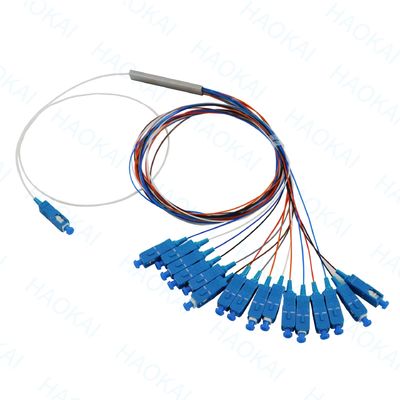

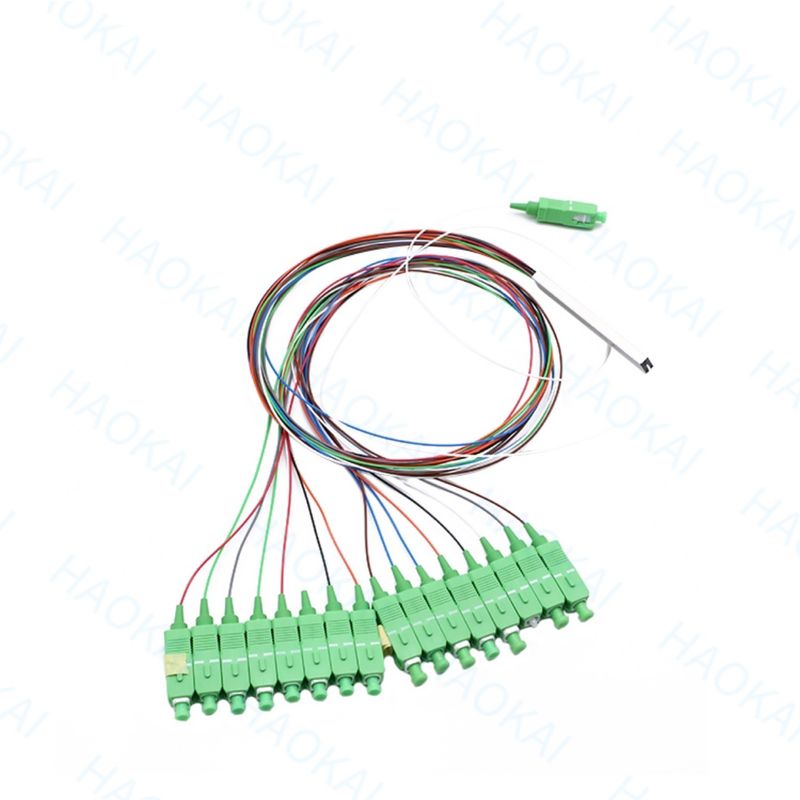

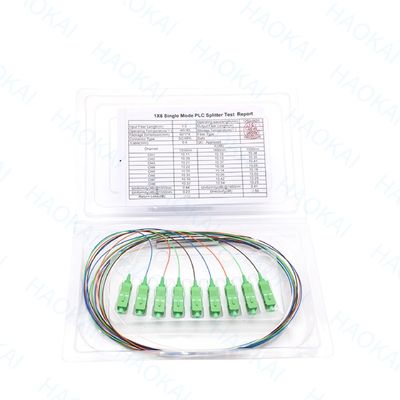

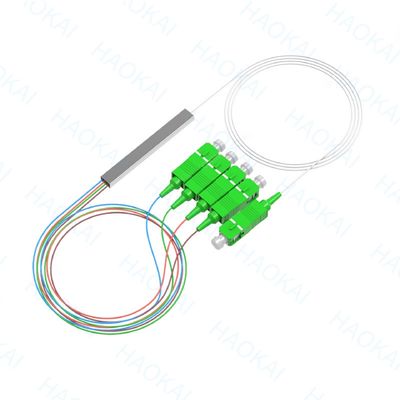

1x32 Plc Fiber Optic Splitter Fiber Optic Coupler Splitter With SC APC Connetcor
Company Certifications
Product Descripition
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.
Including 1x2,1x4,1x8,1x16,1x32,1x64, and 2x2,2X4,2X8,2X16,2X32,2X64 type.
Product application
● FTTx Systems.
● Digital, hybrid and AM-Video systems.
● LAN,WAN and Metro Networks.
● CATV systems.
Product characteristics
● Low Insertion loss and Low PDL.
● Uniform power splitting.
● Excellent environmental stability.
● Compact size and various package.
Cable Parameters
