GJFXH Simplex Armored Indoor Drop Fiber Cable G657A2 1core With Kevlar Yarn
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROHS/ISO/UL/SGS |
Model Number: | GJFXH |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000m |
---|---|
Price: | By negotiation |
Packaging Details: | Wooden/Pellet |
Delivery Time: | 1-5work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000m/1day |
Detail Information |
|||
Length: | 1000m/2000m | Material: | LSZH/PVC |
---|---|---|---|
High Light: | Indoor Drop Fiber Cable,Drop Fiber Cable 1core,1core Fiber Optic Drop Cable |
Product Description
GJFXH Indoor Drop Fiber Cable G657A2 1core With Kevlar Yarn
Product Descripition

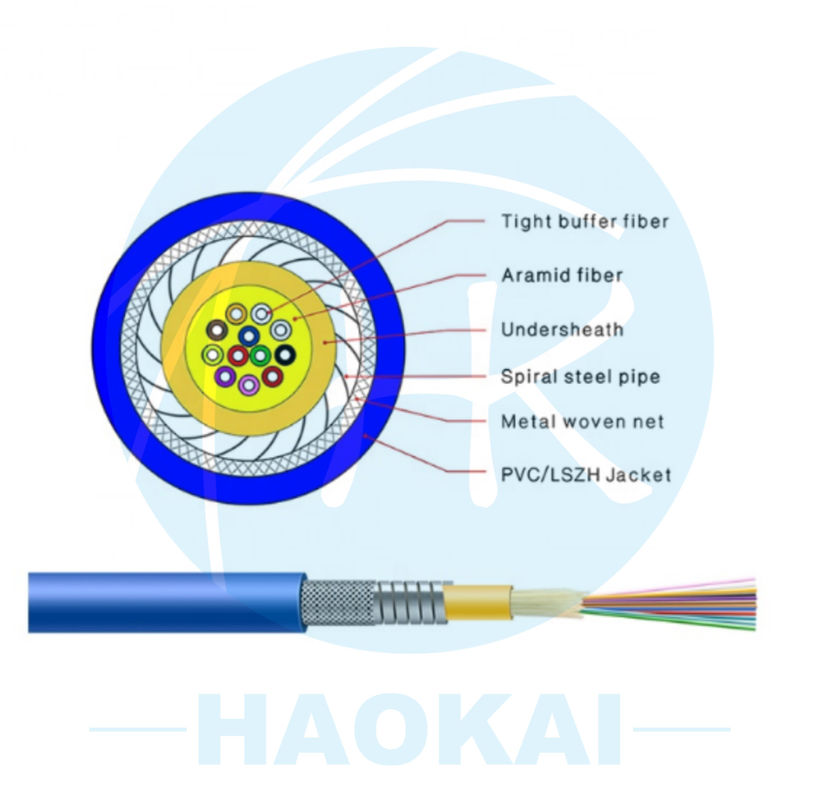

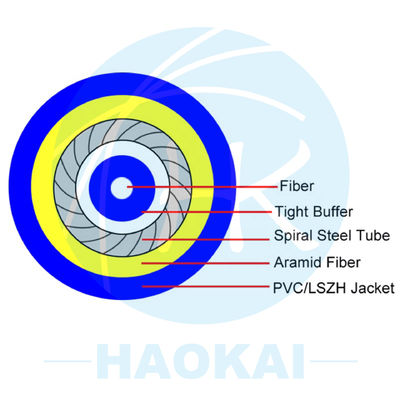

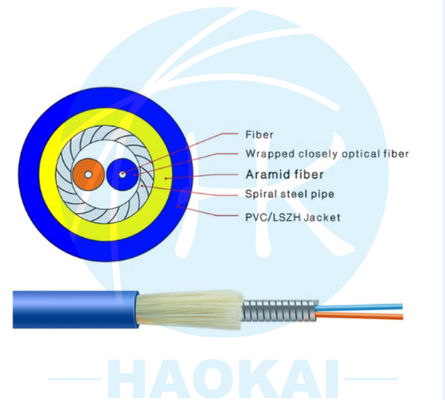

GJFXH Simplex Armored Round Cable use 600um&900um tight buffer fiber, steel tube protect, reinforcing steel-wire braiding (kevlar /aramid yarn), flame-retardant jacket. High indentation strength, high tensile strength, gopher protected, small diameter, flexibility and easy bend.
Product application
● Optical fiber jumper or pigtail
● Indoor riser level and plenum level cable distribution
● Interconnect between instruments, communication equipment
Product characteristics
● Tight buffer fiber easy of stripping.
● Tight buffer fiber have excellent flame-retardant performance.
● Aramid yarn as strength member makes cable have excellent tensile strength.
● The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Cable Parameters
Fiber Model | Cable diameter mm | Bending radius mm | Weight(KG) | storage temperature(℃) | Tensile resistance Long/short term N |
Crush resistance Long/short term N/100mm |
GJFXH-1Xn | 1.8±0.1 | 20D/10D | 16 | 40 | 150/80 | 500/100 |
GJFXH-2Xn | 2.8±0.1 | 20D/10D | 18.5 | 40 | 150/80 | 500/100 |
