Flame Retardant Jacket Indoor Optical Cable Armored Fiber Optic Cable GJSJV
Product Details:
Place of Origin: | Dongguan |
Brand Name: | HAOKAI |
Certification: | ROHS/ISO/UL/SGS |
Model Number: | GJSJV |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000m |
---|---|
Price: | By negotiation |
Packaging Details: | Wooden/Pellet |
Delivery Time: | 1-5work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000m/1day |
Detail Information |
|||
Length: | 1000m/2000m | Material: | LSZH/PVC |
---|---|---|---|
High Light: | Flame Retardant Jacket Indoor Optical Cable,GJSJV Indoor Optical Cable,Indoor Armored Fiber Optic Cable |
Product Description
Indoor Armored Fiber Cable GJSJV
Product Descripition

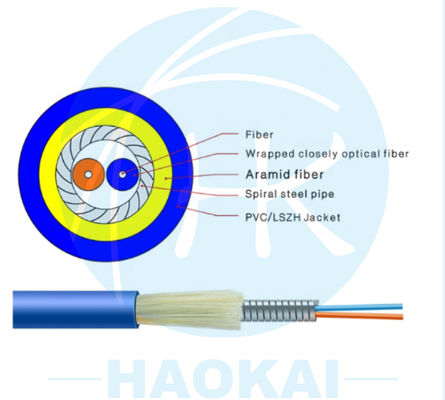

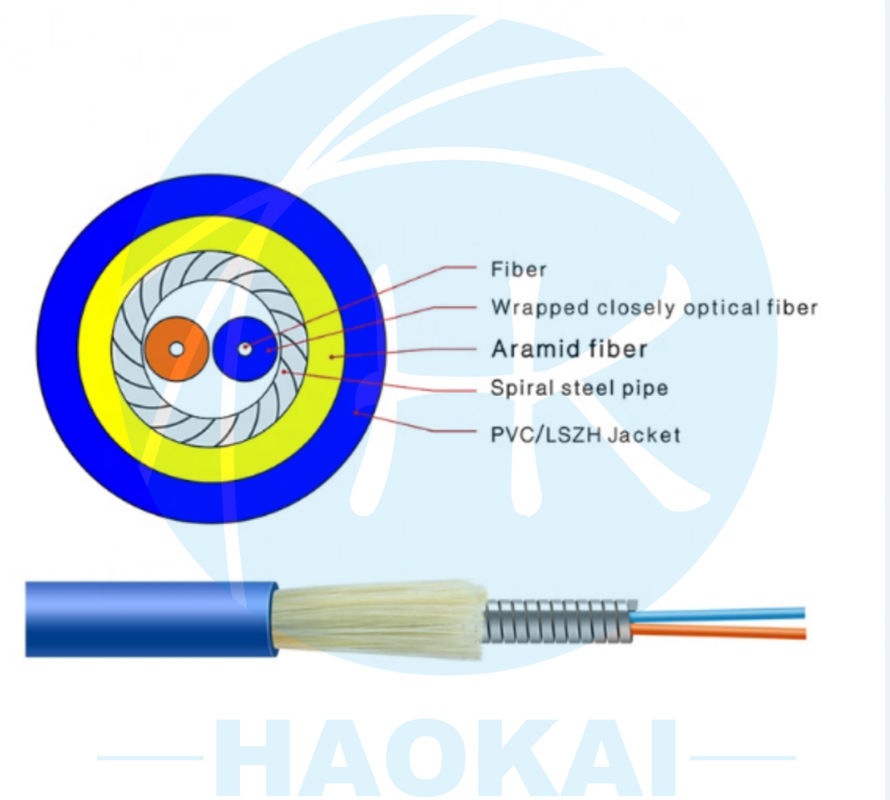

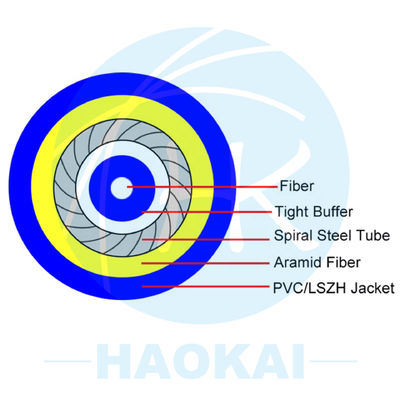

GJSJV Simplex Armored Round Cable use 600um&900um tight buffer fiber, steel tube protect, reinforcing steel-wire braiding (kevlar /aramid yarn), flame-retardant jacket. High indentation strength, high tensile strength, gopher protected, small diameter, flexibility and easy bend.
Product application
● Adopted to indoor distribution.
● As pigtail of communication equipment.
● Suitable for communication equipment served.
● Can be installed conveniently.
Product characteristics
● 0.6mm or 0.9mm tight buffer fiber.
● Hight strength kevlar yarn member.
● Steel armored flexible tube, increase the cable's twist resistance.
Cable Parameters
Fiber Model | Cable diameter mm | Bending radius mm | Weight(KG) | storage temperature(℃) | Tensile resistance Long/short term N |
Crush resistance Long/short term N/100mm |
GJSJV-1Xn | 1.8±0.1 | 20D/10D | 16 | -20+60 | 400/200 | 2000/1000 |
GJSJV-2Xn | 2.8±0.1 | 20D/10D | 18.5 | -20+60 | 400/200 | 2000/1000 |
