Outdoor OPGW G652d Stranded Ground Wire Fiber Optic Cable 24core 48core 96core 144core
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | HAOKAI |
| Certification: | ROHS/ISO/UL/SGS |
| Model Number: | OPGW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000m |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Wooden/Pellet |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 10000m/1day |
|
Detail Information |
|||
| Cable Structure: | Central Tube Or Layer Stranding | Diameter Of Cable: | 10.5-15 Mm |
|---|---|---|---|
| Temparature: | -10 To +70° C | Product Type: | Central Stainless Steel Tube |
| Number Of Conductors: | ≥10 | Cable Weight: | 150-500kg/km |
| Fiber Brand: | YOFC / Fiberhome / Corning / KNOFC | Material: | AS/AA |
| Outer Layer: | Aluminum Clad Steel Wire | Conductor Material: | Aluminum Clad Steel |
| High Light: | Stranded OPGW Cable,OPGW Outdoor Fiber Optic Cable,Ground Wire Fiber Optic Cable |
||
Product Description
OPGW Outdoor 24core 48core 96core 144core G652D Stranded Optic Fiber Cable Ground Wire Fiber Optic Cable Optical Power
Product Description

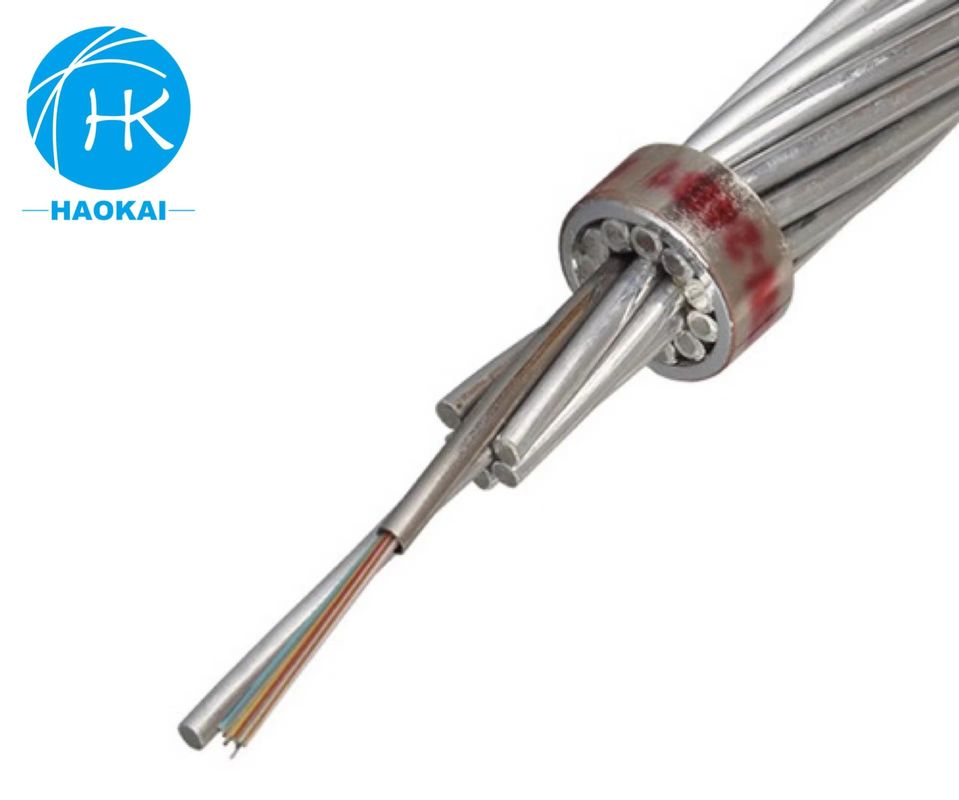

The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.
Product application
● Overhead ● Pipethrough ● Buried
Product characteristics
● High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability .
● Engineering support supervising and providing its own line of accessories hardware.
● Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental conditions such as lightening.
● To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over 110kv.
