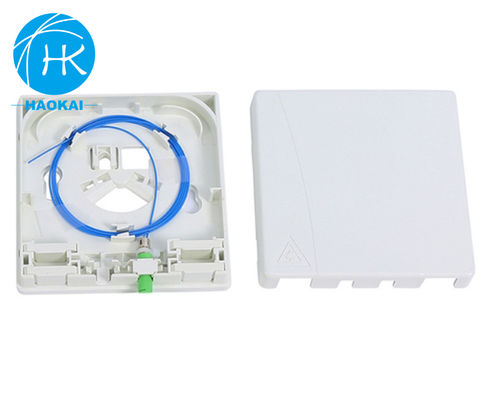

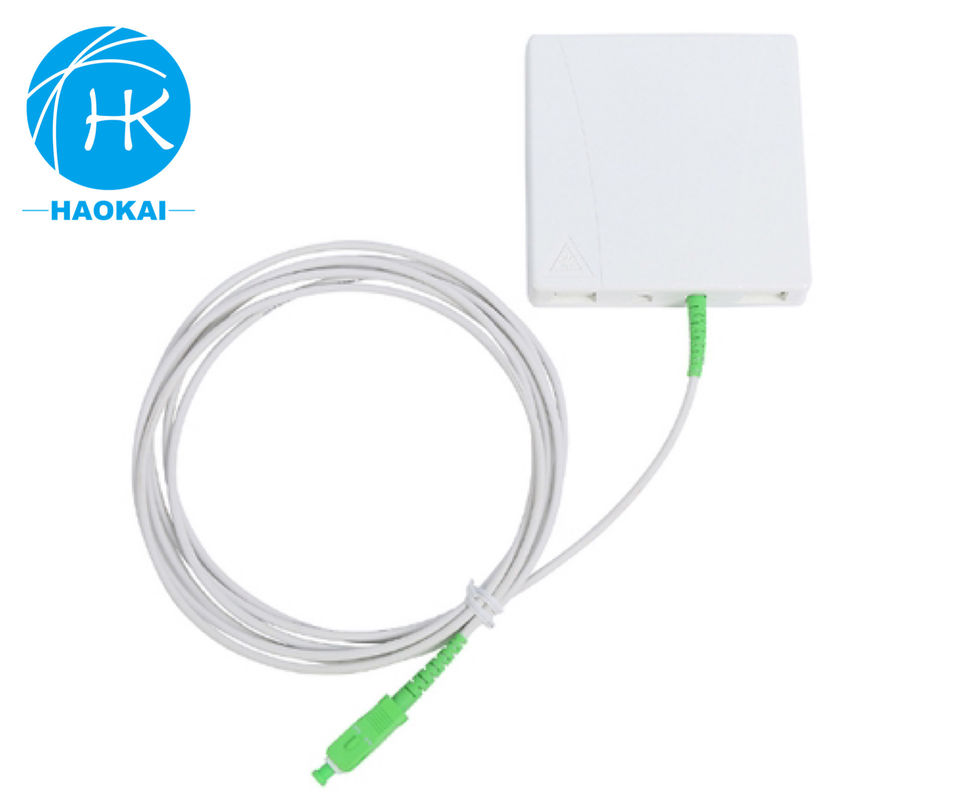

Wall Mount Mini FTTH Termination Box Fiber Optic SM PTO ATB Box With Pigtail

Wall Mount Mini FTTH Termination Box Fiber Optic SM PTO ATB Box With Pigtail

Product Details:

Place of Origin: Dongguan
Brand Name: HAOKAI
Certification: ROSH
Model Number: 2port mini box

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: By negotiation
Packaging Details: BOX
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/day
Get Best Price Contact Now

Detail Information

Material: ABS Plastic Dimensions: 260mm X 140mm X 40mm
Color: White Product Type: Fiber Optic Terminal Box
Adapter Type: Simplex/Duplex Weight: 0.5kg
Operating Temperature: -40°C To +60°C
High Light:

Mini FTTH Termination Box

,

Wall Mount FTTH Termination Box

,

Fiber Optic Box With Pigtail

Product Description

ftth box with pigtail 1core 2core 1port 2port wall mount ftth mini box fiber optic terminal box SM PTO ATB box





FTTH box with pigtail, also known as a wall-mount FTTH mini box, fiber optic terminal box, SM PTO (Single Mode Pigtail Termination Outlet), or ATB (Access Termination Box), is a device used in fiber-to-the-home (FTTH) installations for terminating and distributing fiber optic cables. Here are details about the features you mentioned:

  1. Design and Size: The FTTH box is designed to be wall-mounted and compact in size. It is suitable for indoor installations, typically in residential or small-scale commercial settings.

  2. Fiber Capacity: The box may have a capacity of 1 core or 2 cores, indicating the number of individual fiber optic cables or fibers it can accommodate and terminate.

  3. Pigtail Integration: The FTTH box is equipped with pigtails. Pigtails are pre-terminated fiber optic cables with connectors on one end. These pigtails are integrated into the box, allowing for easy connection and termination of the incoming fiber optic cables.

  4. Port Configuration: The FTTH box may have 1 port or 2 ports, indicating the number of output ports available for connecting subscriber or distribution cables. These ports are typically designed to accept SC, LC, or other compatible connectors.

  5. Wall Mounting: The FTTH box is designed for wall mounting. It comes with mounting brackets or hardware that allow for secure attachment to walls or other suitable surfaces. The wall-mounted design ensures easy access for installation, maintenance, and troubleshooting.

  6. Single Mode Fiber: The FTTH box supports single-mode fiber (SMF) optic cables. SMF is commonly used in long-distance and high-bandwidth applications, making it suitable for FTTH deployments.

  7. Fiber Management: The FTTH box may include features for fiber management, such as cable routing guides, splice trays, or storage compartments. These elements help organize and protect the fiber optic cables, ensuring proper cable management and signal integrity.

It's important to note that specific product variations may exist in terms of design, features, and capacity. The details provided here represent common characteristics associated with FTTH boxes with pigtails used in wall-mounted fiber optic installations for residential or small-scale commercial settings.
